ELECTRIC ACTUATOR

  1. BASIC TYPE

R3

1. Connect to quarter turn valves (such as ball valve, butterfly valve,
　and damper), control valve open and close, with ISO5211
　mounting dimension F03/F04/F05.
2. Nylon housing, IP67 water proof that avoid water, dust, and
　corrosion damage.
3. Stable operating that avoid water hammer and noise.
4. Position indicator to show the status of valve open or close.
Specification
Voltage
DC24V　　
AC110V　　
AC220V　　
Fluid
Air　　　
Oil　　　
Gas　　　
Water　
Chem.　　
Steam　
Vacuum
Other
Fluid temp
0~50℃
0~80℃
0~180℃
Others
Valve size
DN6 1/8"　　　
DN8 (1/4")　　　
DN10 (3/8")　　
DN15 (1/2")　　
DN20 (3/4")　　
DN25 (1")　　
DN35(1-1/4")
Valve material
PVC　　　　
Cast iron
SS316　　　
SS304　　　
Others　　
Mounting dimensions
ISO5211　　　
F03　　　　　　　
F04　　　　　　　
F05　　　　　　　
Max. torque
35 N.M．
Valve type
2-PC ball valve - thread　
2-PC ball valve - flange　
3-PC ball valve　　　　
3 way ball valve -thread
3 way ball valve -flange
PVC ball valve　　　　
butterfly valve　　　　
Others　　　　　　　　
Control method
Basic type ON-OFF　　
R3
DOWNLOAD
DETAIL

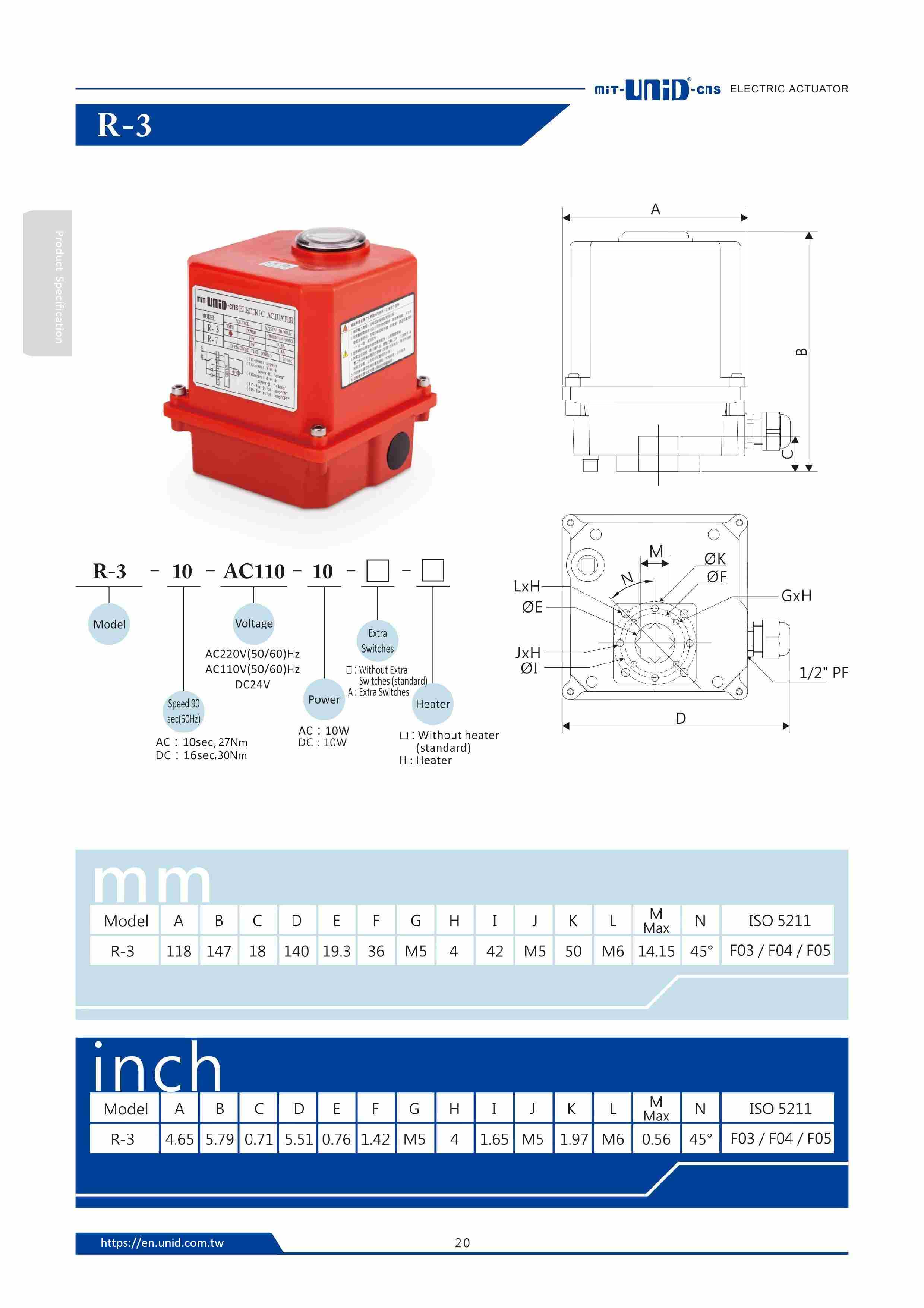

Model Motor Power open / close time (sec) Max. Torque(±5%)
NM
AC110V(60Hz)		 Max. Torque(±5%)
NM
AC220V(60Hz)		 No-loadcurrent consumption
AC
100V~120V		 AC
200V~240V
R-3 10W 10 36.0 36.0 0.5A 0.3A



Model Motor Power open / close time (sec) Max. Torque(±5%)
NM
AC110V(60Hz)		 No-loadcurrent consumption
DC24V
R-3 10W 10 36.0 0.15A

  1. Suggest rated torque: 27Nm, suggest to use rated torque to keep the lifetime longer.
  2. Regulation 5 minutes per travel, if operating times over one travel in 5 minutes, kindly select our smart type (30% duty cycle) or fast type (100% duty cycle) actuator.
  3. Nylon housing standard.
  4. Waterproof: IP67
  5. Available voltage: AC110V, AC220V, DC24V, for other voltage, kindly check with us.
  6. It’s available for ISO5211 F03/F04/F05, it’s easy for assembly with valve.
  7. Manual override.
  8. Related products of basic type
Item no.  Max. Torque (AC220V)
UMS 10Nm
UM-1 35Nm
UM-2-5 50Nm
UM-2-7 70Nm
UM-3 150Nm
UM-3-1 150Nm
UM-4 332Nm
UM-5 487Nm
UM-6 608Nm
UM-8 929Nm
UM-10 1350Nm
UM-11 1450Nm
UM-12 3500Nm

Recommend connecting  valve:
1. 2-PC Ball valve:
    thread end (BSPT, NPT, BSP)
    flange end (JIS10K, ANSI150LB, PN10, PN16)
    SOCKET, UNION
    material: PVC, SS304, SS316

2. 3-PC Ball valve
    thread end (BSPT, NPT, BSP)
     material: SS316

3. 3 way ball valve
    thread end (BSPT, NPT, BSP)
    flange end (JIS10K, ANSI150LB, PN10, PN16)
    SOCKET, UNION
    material: PVC, SS304, SS316

4. Butterfly valve
     wafer type: bare shaft
     flange type: bare shaft
     lug type: bare shaft
     PVC butterfly valve
     material: PVC, FCD, SS304, SS316


Certificate link:
ISO 9001
CE
CSA
UL429
IP67


OPTIONAL

  • Heater

    Heater can make inside temperature of electric actuator higher and dryer to prevent the damage of the electric actuator that caused by the frozen of lube oil or the moisture. It also has the function of thermal protector. When the temperature inside the electric actuator exceed the heater can bear, the thermal protector will be triggered to lower the temperature. The voltage of heater is required as as the same as electric actuator.
    It's recommended not to install the heater when the temperature is over 35℃/95℉.

  • FAILSAFE

    For emergency use, when power fail, the function will be triggered to supply power, and the users can operate the electric actuator to open or close status.
    Introduction:
    1. Battery type.
    2. Need power to charge the
    　battery ( as least 8 hours
    　of the first use. )
    3. Preset the open or close in our
    　factory.
    4. With extra limit switch.
    5. No IP67 of the case.

  • Extra limit switch (Dry contact)

    Feedback signal of valve status, a contact that is isolated from a power supply, volt free. 1pc of open status and 1pc of close status.

  • Aluminum housing

    Aluminum housing IP68 water
    proof protection, for outdoor
    use that against dust and water.
