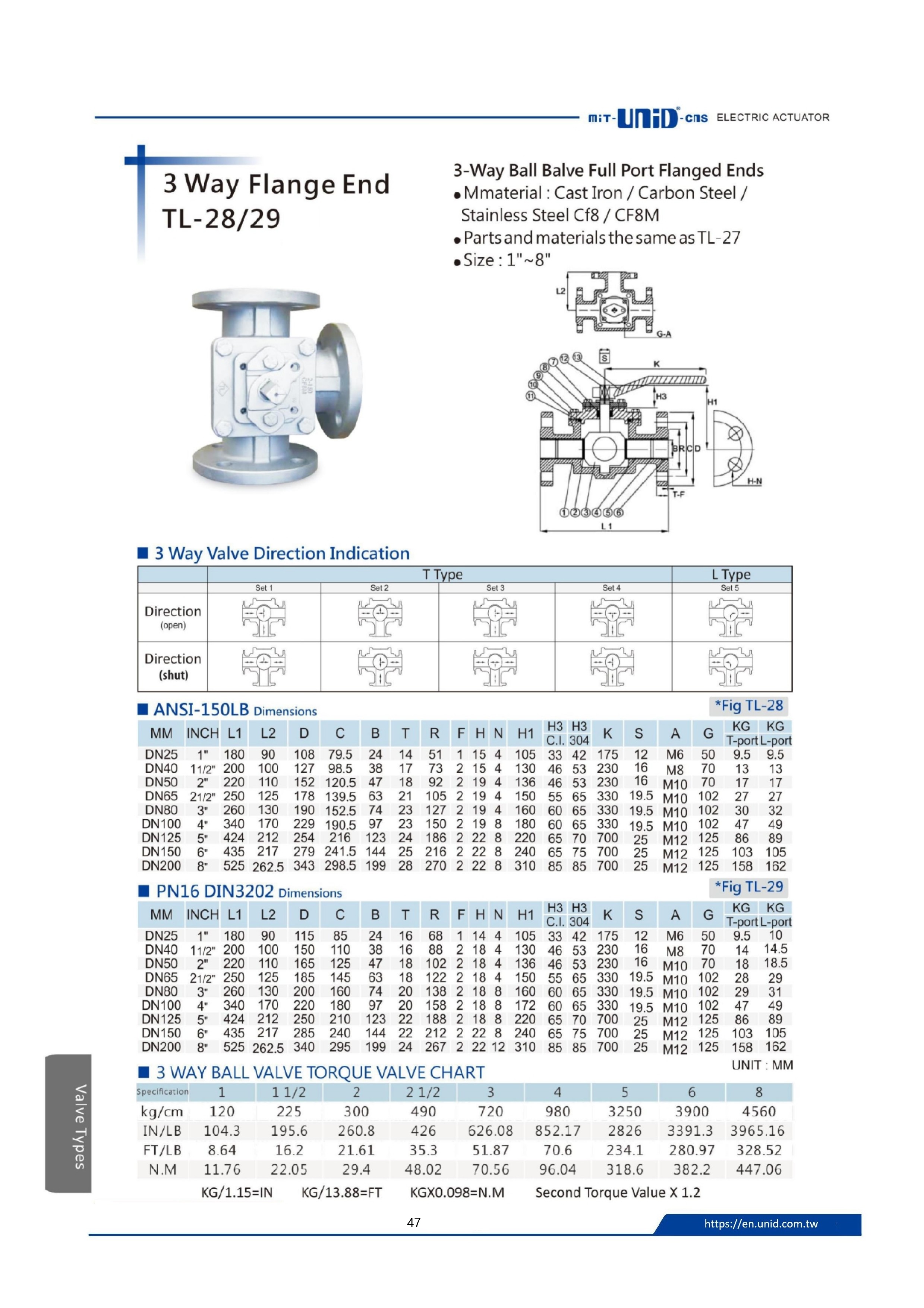

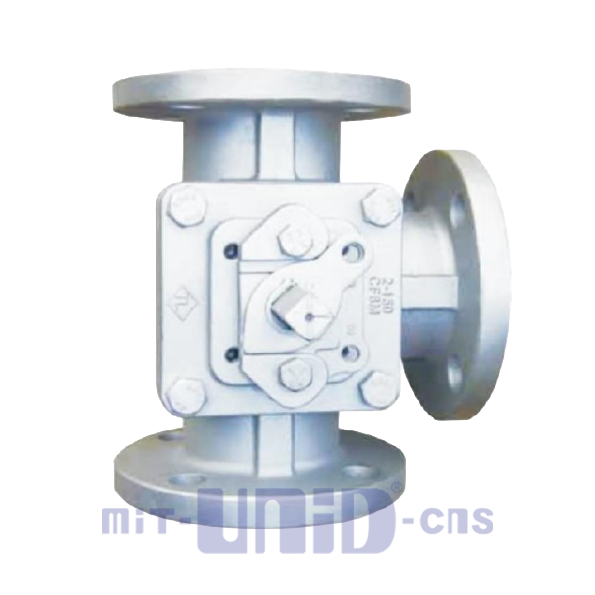

1. 3WAY FLANGE BALL VALVE, SPEC. DOWNLOAD.
2. Related products: 3-WAY ball valve thread end
3. ISO 5211 mounting dimensions
4. Flow type: L / T
5. Available size: 1"~8"(DN25~DN200)
6. Fluid temperature: -20 to +80℃
7. Operating pressure: 10Nm
8. Material of seat: TEFLON
9. Flange option: ANSI150LB, JIS10K, PN16
10. Available electric actuators of valves:
Basic type:
| Item no. | Max. Torque (AC220V) | |
| UMS |  |
10Nm |
| UM-1 |  |
35Nm |
| UM-2-5 |  |
50Nm |
| UM-2-7 | |
70Nm |
| UM-3 |  |
150Nm |
| UM-3-1 |  |
150Nm |
| UM-4 |  |
332Nm |
| UM-5 |  |
487Nm |
| UM-6 | |
608Nm |
| UM-8 |  |
929Nm |
| UM-10 | |
1350Nm |
| UM-11 | |
1450Nm |
| UM-12 |  |
3500Nm |
Smart type:
| Item no. | Max. Torque (AC100~220V) | |
| UM1-N |  |
35Nm |
| UM2-5-N |  |
50Nm |
| UM2-7-N |  |
70Nm |
| UM3-N |  |
150Nm |
| UM3-1-N |  |
150Nm |
| UM4-N |  |
300Nm |
| UM5-N |  |
450Nm |
| UM6-N | |
600Nm |
| UM8-N |  |
1100Nm |
| UM10-N | |
1350Nm |
| UM11-N | |
1450Nm |
| UM12-N |  |
3500Nm |
Fast type:
| Item no. | Max. Torque (AC100~220V, DC24/AC24V) | |
| UM-1-X |  |
35Nm |
| UM-2-5-X |  |
50Nm |
Material list:
| NO | PART | MATERIAL | |||
| 1 | BODY | CAST IRON | WCB | CF8 | CF8M |
| 2 | BODY SEAT | TEFLON | TEFLON | TEFLON | TEFLON |
| 3 | BALL WITH STEM | CF8 | CF8 | CF8 | CF8 |
| 4 | SEAT RING HOLDER | CAST IRON | CAST IRON | CF8 | CF8 |
| 5 | O-RING | NBR | NBR | NBR | NBR |
| 6 | RETAINER | CAST IRON | CAST IRON | CF8 | CF8 |
| 7 | STEM PACKING | EFLON | EFLON | EFLON | EFLON |
| 8 | GLAND FLANGED | CAST IRON | CAST IRON | CF8 | CF8 |
| 9 | GLAND BOLT | SS41 | SS41 | SS304 | SS304 |
| 10 | TOP COVER | CAST IRON | CAST IRON | CF8 | CF8M |
| 11 | JOINT GASKET | TEFLON | TEFLON | TEFLON | TEFLON |
| 12 | STEM | CF8 | CF8 | CF8 | CF8M |
| 13 | HANDLE | CAST IRON | CAST IRON | CAST IRON | CAST IRON |
