ELECTRIC ACTUATOR

  1. BASIC TYPE

UM-4

1. Connect to quarter turn valves (such as ball valve, butterfly valve,
　and damper), control valve open and close, with ISO5211
　mounting dimension F07/F10.
2. Nylon housing, IP67 water proof that avoid water, dust, and
　corrosion damage.
3. Stable operating that avoid water hammer and noise.
4. Position indicator to show the status of valve open or close.
Specification
Voltage
DC24V　　
AC24V　　
AC110V　　
AC220V　　
AC220V 3φ
AC380V 3φ
AC440V 3φ
Fluid
Air　　　
Oil　　　
Gas　　　
Water　
Chem.　　
Steam　
Vacuum
Other
Fluid temp
0~50℃
0~80℃
0~180℃
Others
Valve size
DN65(2-1/2")
DN80 (3")　　
DN100(4")　　
DN125 (5")　　
DN150 (6")　　
DN200 (8")　　
Valve material
PVC　　　　
Cast iron
SS316　　　
SS304　　　
Others　　
Mounting dimensions
ISO5211　　　
F07　　　　　　　
F10　　　　　　　
Max. torque
350　N.M
Valve type
2-PC ball valve - thread　
2-PC ball valve - flange　
3-PC ball valve　　　　
3 way ball valve -thread
3 way ball valve -flange
PVC ball valve　　　　
butterfly valve　　　　
Others　　　　　　　　
Control method
Basic type ON-OFF　　
Basic type Modulating
UM-4
DOWNLOAD
DETAIL

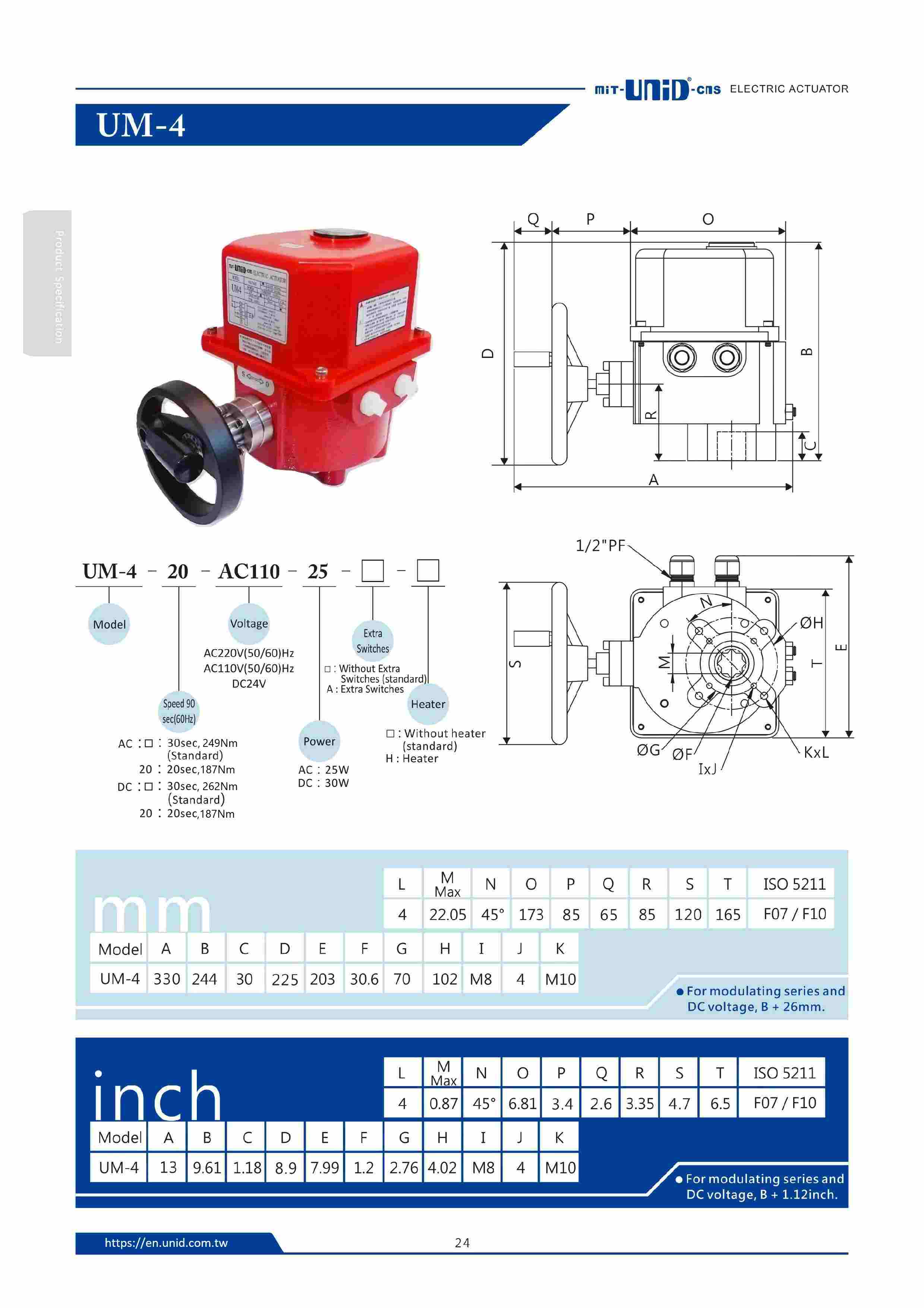

Model Power open / close time (sec) Max. Torque(±5%)
NM
AC110V(60Hz)		 Max. Torque(±5%)
NM
AC220V(60Hz)		 No-loadcurrent consumption
AC
100V~120V		 AC
200V~240V
UM-4 25W 20 250 350 0.8A 0.6A
UM-4 25W 30 311.8 332 0.6A 0.6A



Model Power open / close time (sec) Torque(±5%)
NM
DC24V		 No-loadcurrent consumption
DC24V
UM-4 30W 20 250 0.3A
UM-4 30W 30 350 0.5A
  1. Suggest rated torque 75% of max. torque, use with rated torque to keep the lifetime longer.
  2. Regulation 5 minutes per travel, if operating times over one travel in 5 minutes, kindly select our smart type (30% duty cycle) or fast type (100% duty cycle) actuator.
  3. Nylon housing standard.
  4. Waterproof: IP67, IP68  (option)
  5. Available voltage: AC110V, AC220V, DC24V, AC24V, for other voltage, kindly check with us.
  6. It’s available for ISO5211 F07/F10, it’s easy for assembly with valve.
  7. Manual override.
  8. Related products of basic type
Item no.  Max. Torque (AC220V)
UMS 10Nm
UM-1 35Nm
UM-2-5 50Nm
UM-2-7 70Nm
UM-3 150Nm
UM-3-1 150Nm
UM-4 332Nm
UM-5 487Nm
UM-6 608Nm
UM-8 929Nm
UM-10 1350Nm
UM-11 1450Nm
UM-12 3500Nm

Recommend connecting  valve:
1. 2-PC Ball valve:
    thread end (BSPT, NPT, BSP)
    flange end (JIS10K, ANSI150LB, PN10, PN16)
    SOCKET, UNION
    material: PVC, SS304, SS316

2. 3-PC Ball valve
    thread end (BSPT, NPT, BSP)
     material: SS316

3. 3 way ball valve
    thread end (BSPT, NPT, BSP)
    flange end (JIS10K, ANSI150LB, PN10, PN16)
    SOCKET, UNION
    material: PVC, SS304, SS316

4. Butterfly valve
     wafer type: bare shaft
     flange type: bare shaft
     lug type: bare shaft
     PVC butterfly valve
     material: PVC, FCD, SS304, SS316

Certificate link:
ISO 9001
CE
CSA
UL429
IP67


OPTIONAL
