2-PC Ball Valve - Flange End

Features:
1. Face to face dimensions: JIS B2002
2. End flange dimensions: JIS B2239
3. Design: ANSI B16.34
4. Test: JIS B2203
5. ISO5211 mounting dimensions
6. Investment casting body
7. Blow-out proof steam / full port
8. Operating method: lever, gear, motorized.
9. Material: FC / WCB / 304 / 316
DETAIL

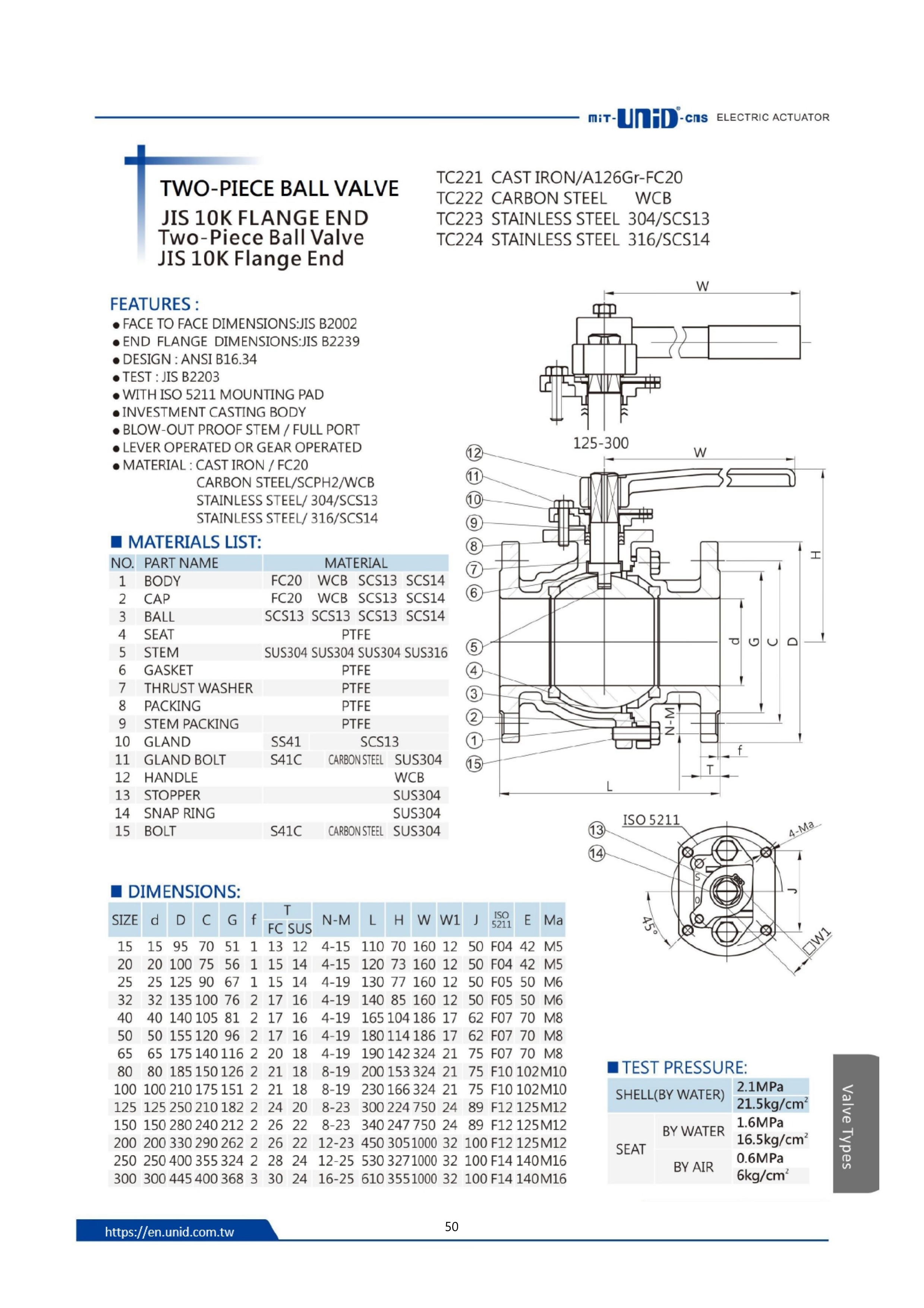

2-PC BALL VALVE, FLANGE END

1. 2-PC BALL VALVE, FLANGE END, SPEC. DOWNLOAD
2. Related products: 2-PC ball valve thread end

3-PC ball valve thread end
3. Operating pressure: 10kgfcm2
4. Fluid temperature: 80℃
5. Material : FC / 304 /316

6. Available electric actuators of valves:

Basic type:
Item no.  Max. Torque (AC220V)
UMS 10Nm
UM-1 35Nm
UM-2-5 50Nm
UM-2-7 70Nm
UM-3 150Nm
UM-3-1 150Nm
UM-4 332Nm
UM-5 487Nm
UM-6 608Nm
UM-8 929Nm
UM-10 1350Nm
UM-11 1450Nm
UM-12 3500Nm

Smart type:
Item no.  Max. Torque (AC100~220V)
UM1-N 35Nm
UM2-5-N 50Nm
UM2-7-N 70Nm
UM3-N 150Nm
UM3-1-N 150Nm
UM4-N 300Nm
UM5-N 450Nm
UM6-N 600Nm
UM8-N 1100Nm
UM10-N 1350Nm
UM11-N 1450Nm
UM12-N 3500Nm
Fast type:
Item no.  Max. Torque (AC100~220V, DC24/AC24V)
UM-1-X 35Nm
UM-2-5-X 50Nm

7. Material list:
No. PART MATERIAL
1 BODY FC / WCB / SS304 / SS316
2 CAP FC / WCB / SS304 / SS316
3 BALL SS304 / SS316
4 SEAT PTFE
5 STEM SS304 / SS316
6 GASKET PTFE
7 THRUST WASHER PTFE
8 PACKING PTFE
9 STEM PACKING PTFE
10 GLAND SS41 / SS304
11 GLAND BOLT S41C / Carbon steel / SS304
12 HANDLE WCB
13 STOPPER SS304
14 SNAP RING SS304
15 BOLT S41C / Carbon steel / SS304
