PRODUCTS

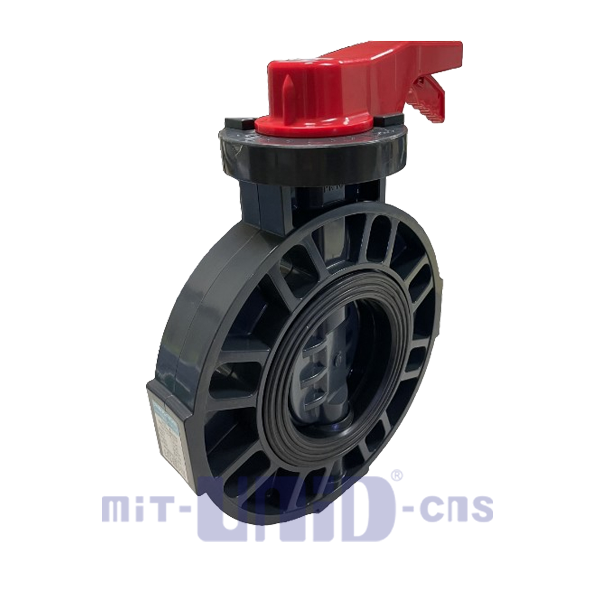

PVC butterfly valve

● Pressure rating: 150PSI @23℃
● Available size: 2"~8"
● Joint End: Flange end (ANSI/DIN/JIS)
DETAIL
PVC BUTTERFLY VALVE

1. PVC butterfly valve spec. download
2. Availablve electric actuator of valve:
Basic type:
Item no.  Max. Torque (AC220V)
UM-2-7 70Nm
UM-3 150Nm
UM-3-1 150Nm

Smart type:
Item no.  Max. Torque (AC220V)
UM-2-7 70Nm
UM-3 150Nm
UM-3-1 150Nm

3. Pressure rating: 150PSI @23℃
4. Available size: 2"~8"
5. Joint End: Flange end (ANSI/DIN/JIS)

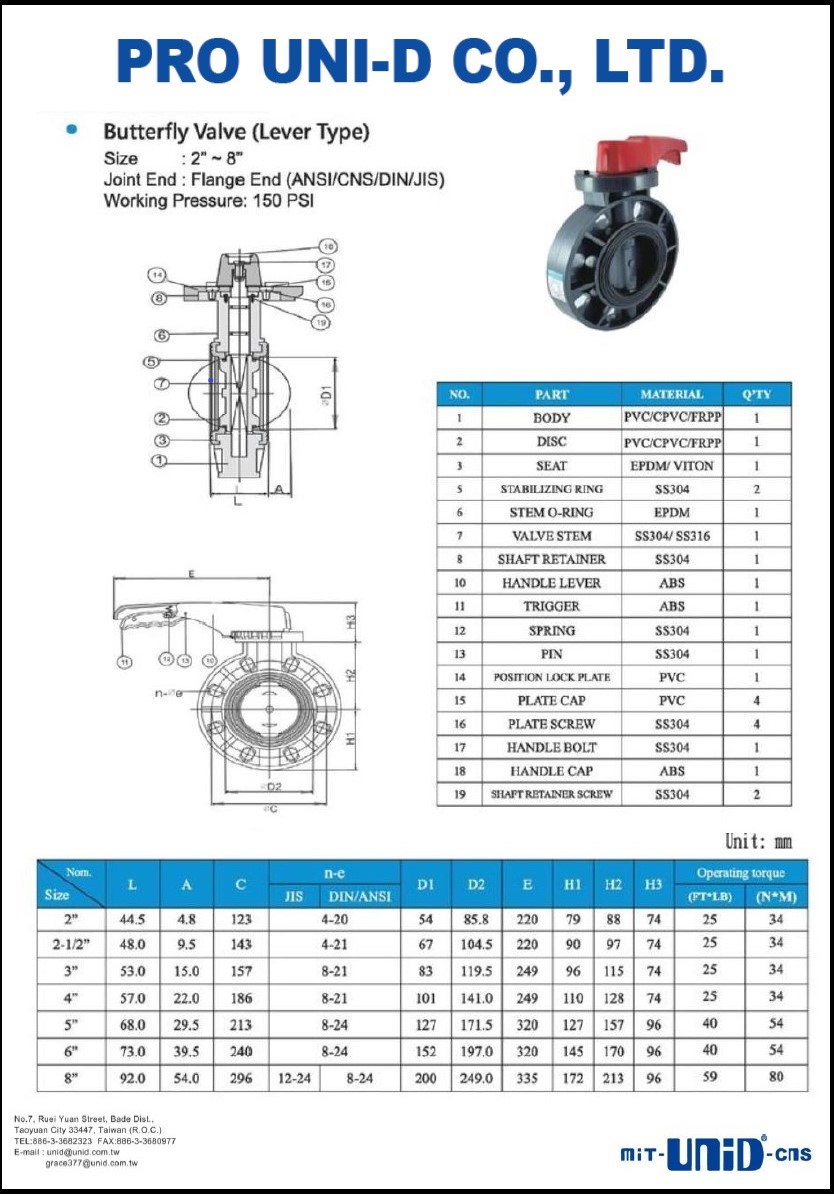

6. Spec.:
