Wafer butterfly valve, bare shaft

1. SEAT: EPDM (standard), PTFE, NBR, VITON
2. Epoxy coating
3. Body/disc material: FCD / FCD, FCD/304, FCD/316
4. Connecting interface: PN16, PN10, ANSI150LB, JIS10K
5. Available size: 2” ~48”.
6. Operating pressure: 10kgfcm2 / 16kgfcm2 (optional)
DETAIL

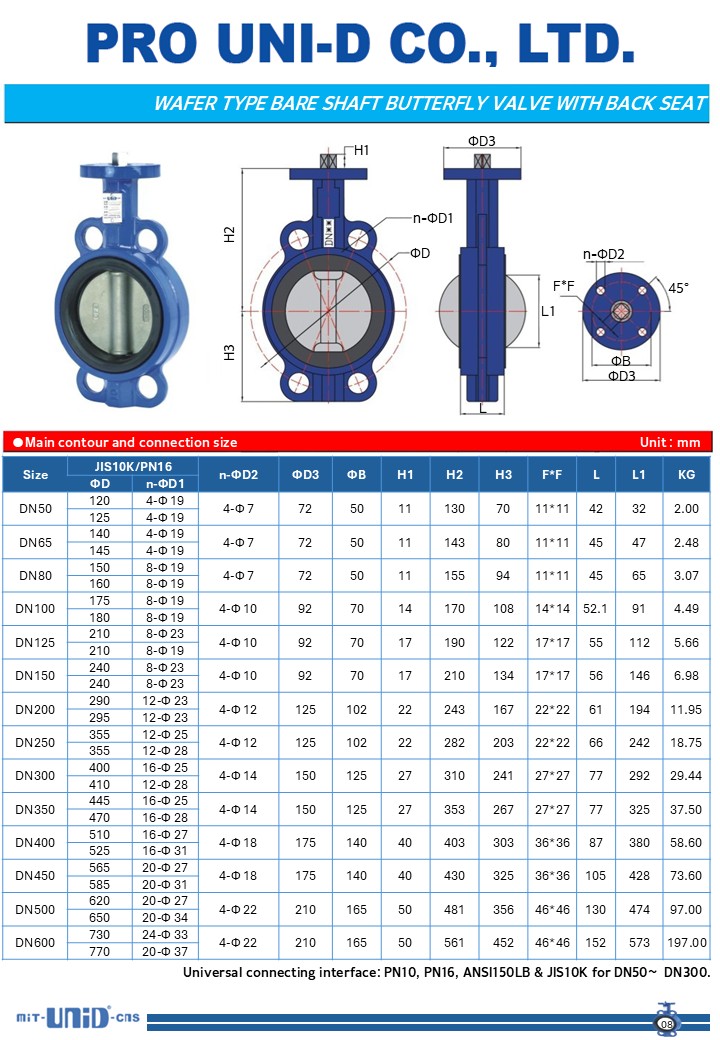

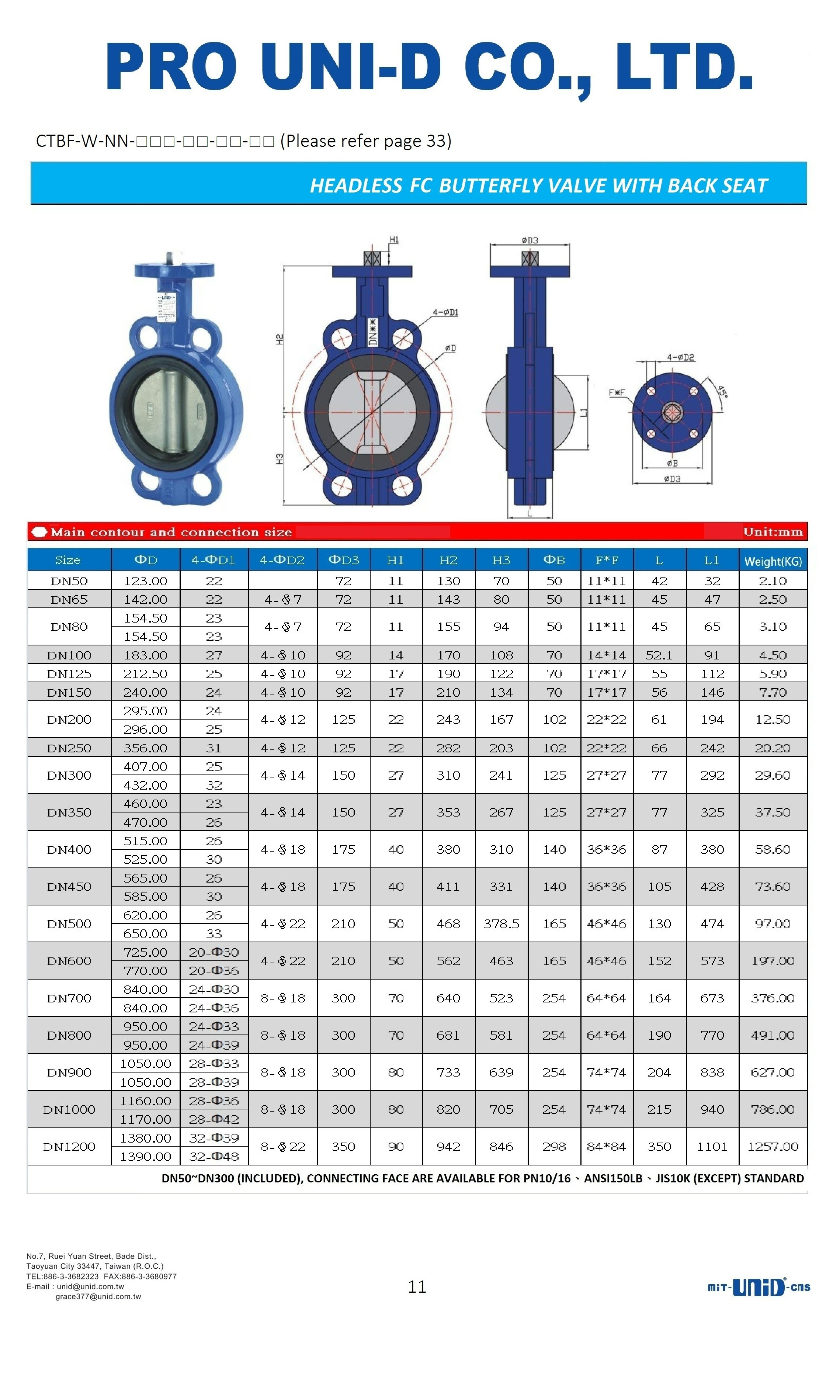

FCD WAFER BUTTERFLY VALVE, BARE SHAFT

1. FCD butterfly valve spec. download
2. Related products:

FCD BODY SS BODY
Bare shaft:
Wafer type
Lug type
Flange type
Bare shaft:
Wafer type
Lug type
Flange type
Lever:
Wafer type
Lug type
Flange type
Lever:
Wafer type
Lug type
Flange type
Gear box:
Wafer type
Lug type
Flange type
Gear box:
Wafer type
Lug type
Flange type

3. Available size: 2"~48"
4. ISO mouting dimensions
5. Spec. as following:

Part

Wafer butterfly valve
Body Ductile Iron(FCD)
Disc Stainless Steel 304.316 / Dutile Iron With Nickel-Plated (N.P)
Seat EPDM、NBR、PTFE、VITON
Stem Stainless Steel 304.416 / S45C Carbon Steel
Operating pressure 10kgf-cm2 / 16kgfcm2
Applicable Medium Water / Sewage / Oil / Air and others
Applicable Temperature

EPDM:-5℃~110℃
NBR:0℃~80℃
PTFE:0℃~140℃
VITON:-5℃~170℃
SILICONE:-5℃~140℃
For other medium, kindly contact us.
