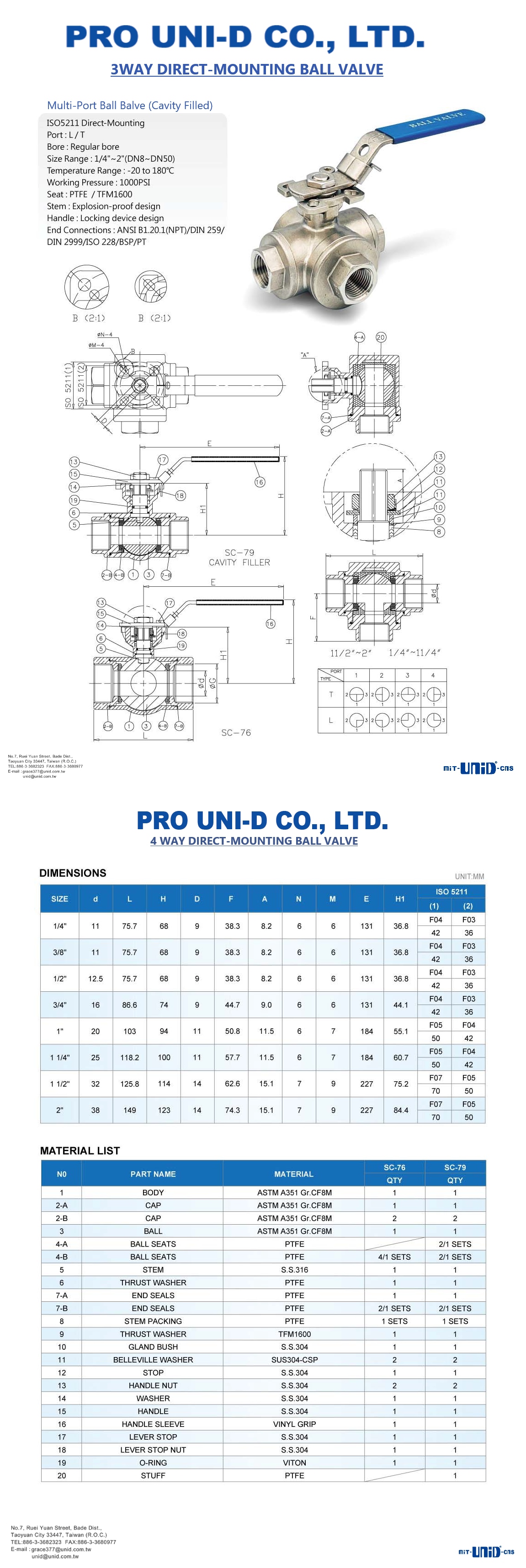

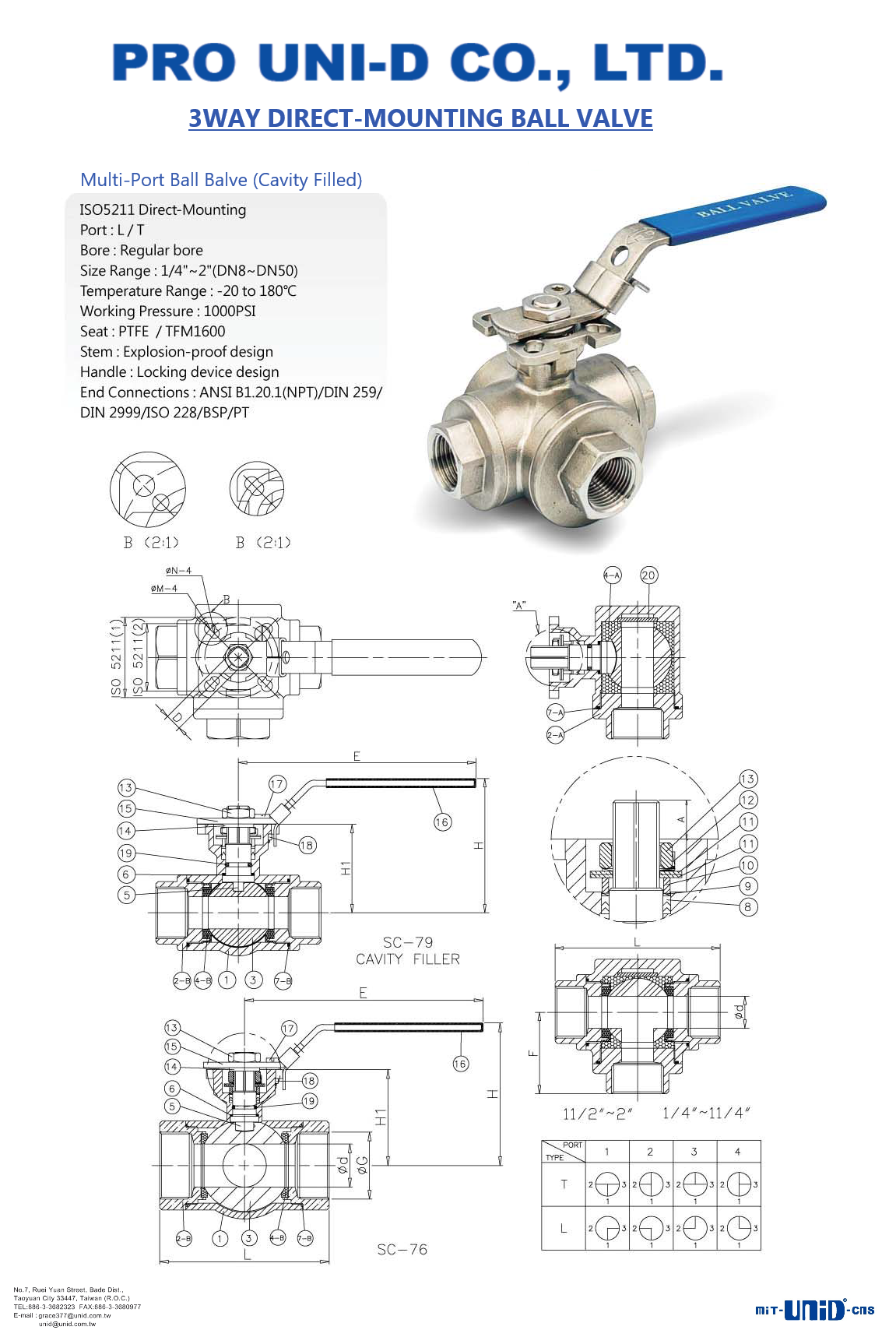

1. 3-WAY BALL VALVE, THREAD END, SPEC. DOWNLOAD.
2. Related products: 3-WAY ball valve flange end
3. ISO 5211 mounting dimensions
4. Flow type: L / T
5. Available size: 1/4"~2"(DN8~DN50)
6. Fluid temperature: -20 to 180℃
7. Operating pressure: 1000PSI
8. Material of seat: PTFE / TFM1600
9. Connecting interface:
ANSI B1.20.1(NPT)/DIN 259/DIN /BSP/PT
10. Available electric actuators of valves:
Basic type:
| Item no. | Max. Torque (AC220V) | |
| UMS |  |
10Nm |
| UM-1 |  |
35Nm |
| UM-2-5 |  |
50Nm |
| UM-2-7 |  |
70Nm |
| UM-3 |  |
150Nm |
| UM-3-1 |  |
150Nm |
Smart type:
| Item no. | Max. Torque (AC100~220V) | |
| UM1-N | |
35Nm |
| UM2-5-N | |
50Nm |
| UM2-7-N | |
70Nm |
| UM3-N | |
150Nm |
| UM3-1-N | |
150Nm |
Fast type:
| Item no. | Max. Torque (AC100~220V, DC24/AC24V) | |
| UM-1-X |  |
35Nm |
| UM-2-5-X |  |
50Nm |
11. Material list:
| No. | PART | Material |
| 1 | BODY | CF8M (SS316) |
| 2 | CAP | CF8M (SS316) |
| 3 | BALL | CF8M (SS316) |
| 4 | BALL SEAT | PTFE |
| 5 | STEM | SS316 |
| 6 | THRUST WASHER | PTFE |
| 7 | END SEALS | PTFE |
| 8 | STEM PACKING | PTFE |
| 9 | THRUST WASHER | TFM1600 |
| 10 | GLAND BUSH | SS304 |
| 11 | BELEVLLE WASHER | SS304 |
| 12 | STOP | SS304 |
| 13 | HANDLE NUT | SS304 |
| 14 | WASHER | SS304 |
| 15 | HANDLE | SS304 |
| 16 | HANDLE SLEEVE | VINYL CRIP |
| 17 | LEVER STOP | SS304 |
| 18 | LEVER STOP NUT | SS304 |
| 19 | O-RING | VITON |
