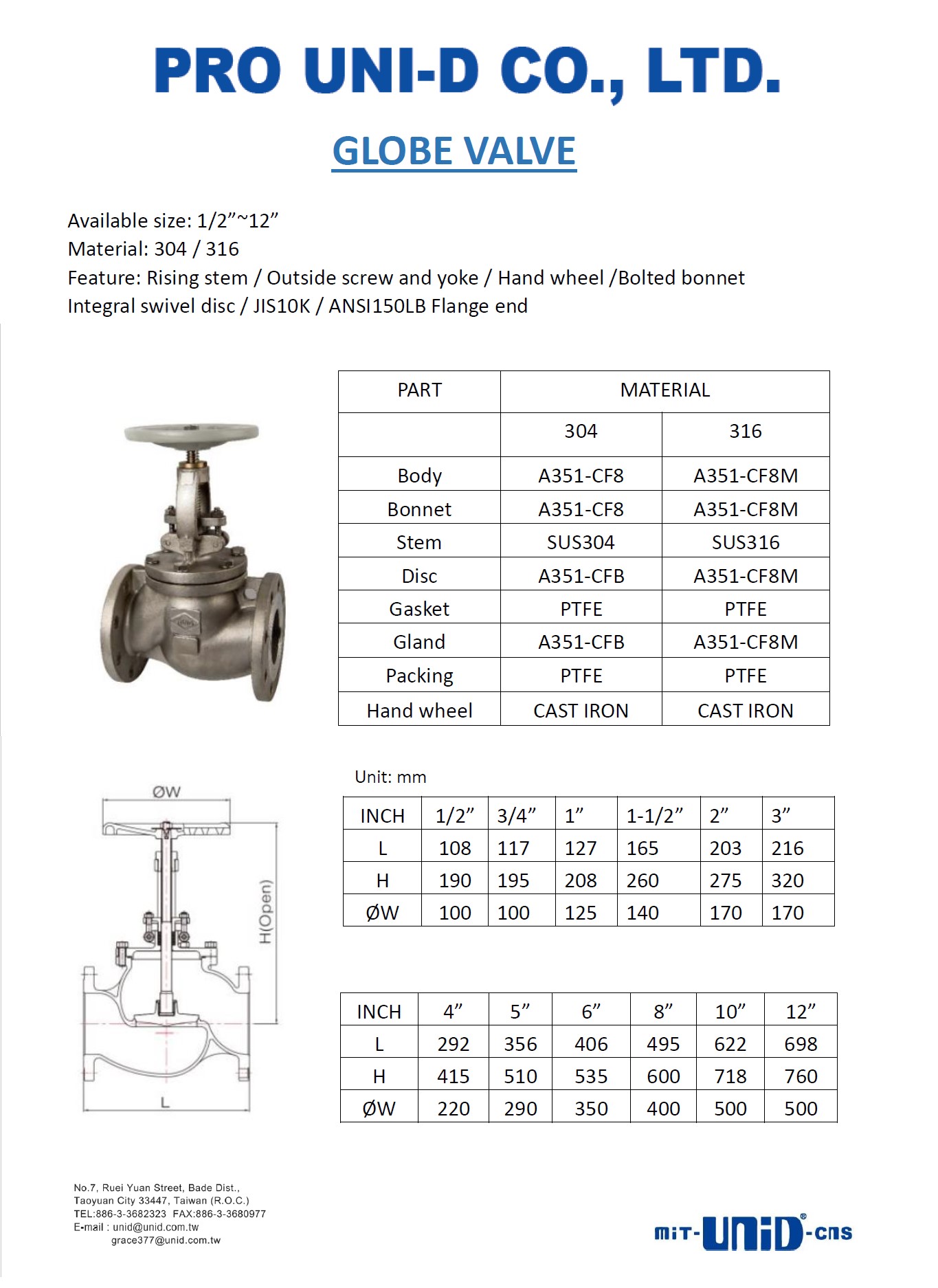

Globe valve

1. Available size: 1/2”~12”
2. Material: 304 / 316
3. Feature: Rising stem / Outside screw and yoke / Hand wheel /Bolted bonnet
4. Integral swivel disc / JIS10K / ANSI150LB Flange end
globe valve
DETAIL
GLOBE VALVE, RISING, STAINLESS STEEL
  1. GLOBE VALVE, RISING STEM, SPEC. DOWNLOAD.
  2. Available size: 1/2"~12"
  3. Material: SS304, SS316
  4. Operating pressure: 10Nm max.
  5. Flange end: JIS10K, ANSI150LB
  6. Type: Rising stem.
  7. Material list:
           PART                       MATERIAL
             304 316
Body A351-CF8 A351-CF8M
Bonnet A351-CF8 A351-CF8M
Stem SUS304 SUS316
Disc A351-CFB A351-CF8M
Gasket PTFE PTFE
Gland A351-CFB A351-CF8M
Packing PTFE PTFE
Hand wheel CAST IRON CAST IRON

Globe valve
