UMB-N

The UMB-N stainless steel rising stem ball valve is equipped with an intelligent linear actuator. It provides a modular kit design on the actuator to facilitate the subsequent addition or replacement of parts. The RS485 function is used in conjunction with the Modbus-ASCII communication protocol to achieve the maximum simultaneous 31 groups of driver controls, in addition to Bluetooth mobile phone control (can install current and 10 fault records), power-off reset (or choose to use as a backup battery), BLDC brushless DC overheating motor, wide voltage, nameplate LED backlight function, etc.
Gate valve
DETAIL

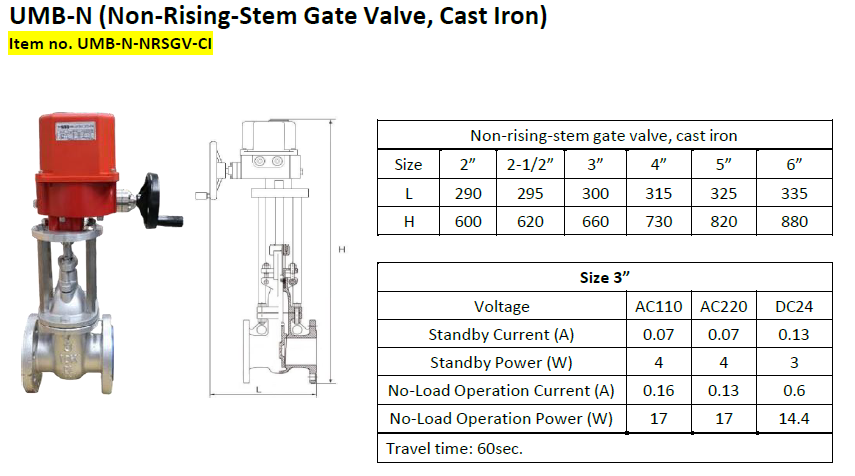

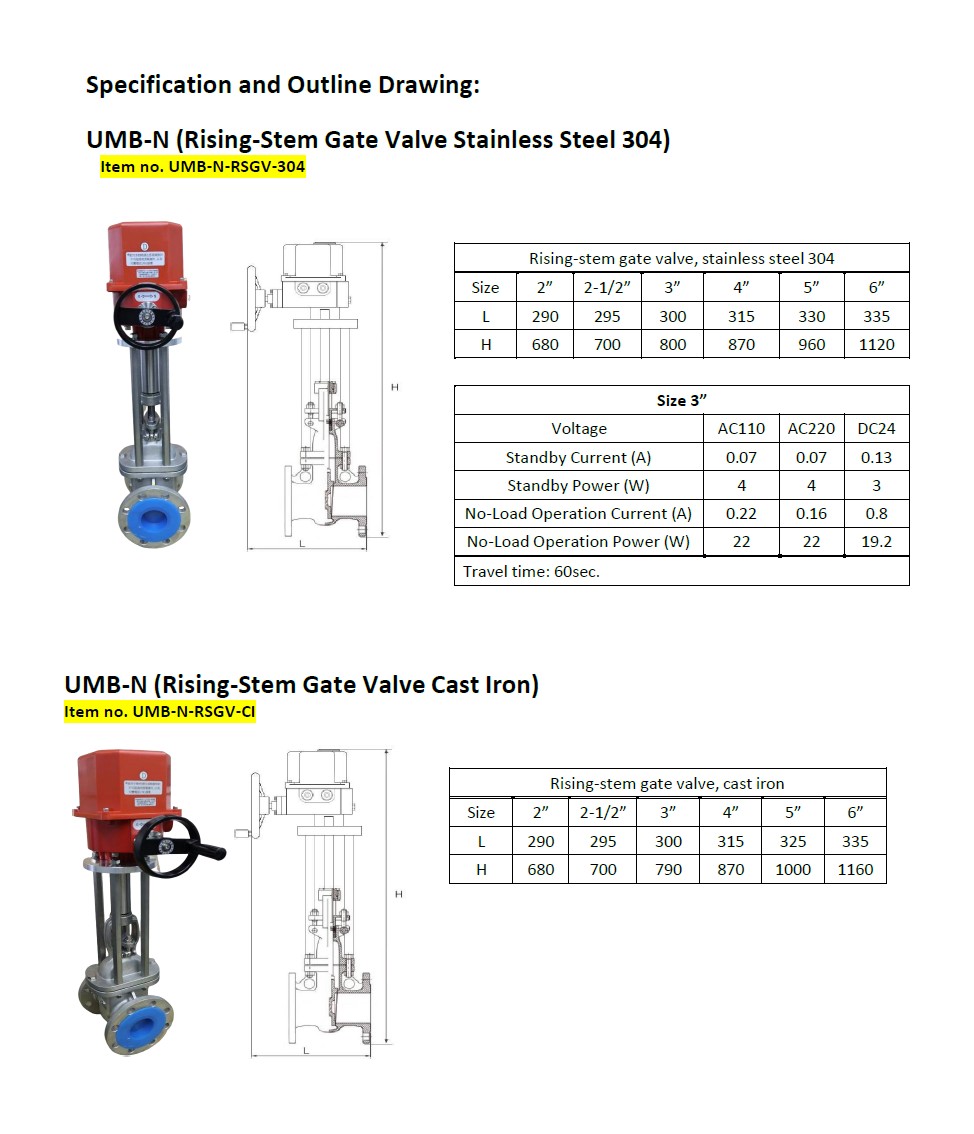

Smart Type Linear Valve Actuator UMB-N Series
Item Specification UMB-N
Power Supply (Optional) DC24V ●
AC110V~AC220V (Optional) ●
Thrust Range 1000~6000N ●
STROKE 60mm ●
Control Model (optional) Bluetooth ●
Modulating
4-20mA or 2~10V (Optional)		 ●
Bluetooth (Optional) ●
Rated Thrust 75% ●
Duty Cycle 30%~75% ●
Fail-Safe or backup power ≧ 1 One Time (Option) ●
Ambient Temperature -10℃~+60℃ ●
IP Rating IP67, 1M 30 Min ●
IP68, exceed 1M 30 Min (Optional) ●
Voltage free signal feedback Max 0.13 (A) (standard) ●
Heater 5W (Optional) ●

Features

  • Brushless DC motor that available for long time operating.
  • Motor insulation Class F.
  • Electromagnetic Compatibility: match EMC certificate.
  • Hand wheel is standard that for emergency use.
  • Fieldbus mode are acceptable, such as Modbus-ASCⅡ.
  • Current Status Record: Detect the status for maintenance, when the current over
  • 100% torque, the current will be recorded in program (Bluetooth function).
  • Protect Device: Over-loaded, double limit position, valve stuck, mechanical lock and speed control.
  • Short speed time for option.
  • Ambient Temperature: -10~+60℃(Humility＜90% / 25℃).
  • Failsafe function is made by modular design, easy to replace.
  • The standard duty cycle is S2 15minutes, for other duty cycles please contact with us.
