ELECTRIC ACTUATOR

  1. BASIC TYPE　　　　　　ON-OFF

UM-3-1 hand wheel electric actuator

1. Connect to quarter turn valves (such as ball valve, butterfly valve,
　and damper), control valve open and close, with ISO5211
　mounting dimension F07.
2. Nylon housing, IP67 water proof that avoid water, dust, and
　corrosion damage.
3. Stable operating that avoid water hammer and noise.
4. Position indicator to show the status of valve open or close.
Specification
Voltage
DC24V　　
AC24V　　
AC110V　　
AC220V　　
AC220V 3φ
AC380V 3φ
AC440V 3φ
Fluid
Air　　　
Oil　　　
Gas　　　
Water　
Chem.　　
Steam　
Vacuum
Other
Fluid temp
0~50℃
0~80℃
0~180℃
Others
Valve size
DN35(1-1/4")
DN40(1-1/2")
DN50 (2")　　
DN65(2-1/2")
DN80 (3")　　
DN100(4")　　
DN125 (5")　　
Valve material
PVC　　　　
Cast iron
SS316　　　
SS304　　　
Others　　
Mounting dimensions
ISO5211　　　
F07　　　　　　　
Max. torque
150　N.M
Valve type
2-PC ball valve - thread　
2-PC ball valve - flange　
3-PC ball valve　　　　
3 way ball valve -thread
3 way ball valve -flange
PVC ball valve　　　　
butterfly valve　　　　
Others　　　　　　　　
Control method
Basic type ON-OFF　　
Basic type Modulating
UM-3-1
DOWNLOAD
DETAIL

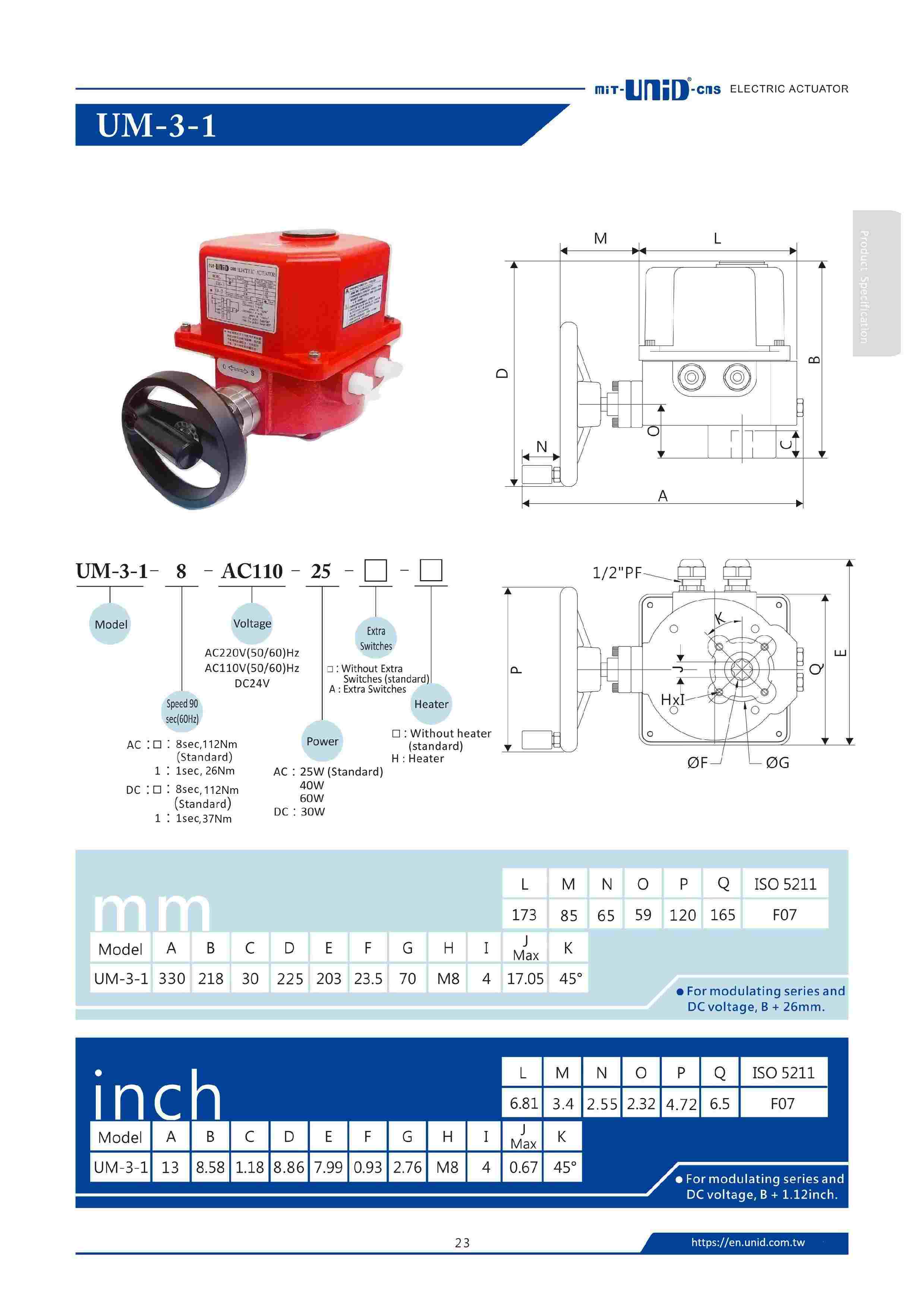

150Nm electric actuator with hand wheel

Model
Power
open / close time (sec)
Max. Torque(±5%)
NM
AC110V(60Hz)
Torque(±5%)
kgf-cm
AC220V(60Hz)
No-loadcurrent consumption
AC
100V~120V
AC
200V~240V
UM-3-1
25W
1
29.4
35.0
0.6A
0.6A
UM-3-1
25W
8
148.6
156.2
0.6A
0.6A
UM-3-1
40W
1
36.9
40.5
0.9A
0.6A
UM-3-1
60W
1
44.5
46.0
1.0A
0.7A



Model
Power
open / close time (sec)
Max. Torque(±5%)
           NM             DC24V
No-loadcurrent consumption
DC24V
UM-3-1
30W
1
50.0
0.5A
UM-3-1
30W
8
150.0
0.5A

UM-3-1
  1. Suggest rated torque 75% of max. torque, use with rated torque to keep the lifetime longer.
  2. Regulation 5 minutes per travel, if operating times over one travel in 5 minutes, kindly select our smart type (30% duty cycle) or fast type (100% duty cycle) actuator.
  3. Nylon housing standard.
  4. Waterproof: IP67, IP68  (option)
  5. Available voltage: AC110V, AC220V, DC24V, AC24V, for other voltage, kindly check with us.
  6. It’s available for ISO5211 F07, it’s easy for assembly with valve.
  7. Manual override.
  8. Related products of basic type
    Item no.
    Max. Torque (AC220V)
    UMS
    10Nm
    UM-1
    35Nm
    UM-2-5
    50Nm
    UM-2-7
    70Nm
    UM-3
    150Nm
    UM-4
    332Nm
    UM-5
    487Nm
    UM-6
    608Nm
    UM-8
    929Nm
    UM-10
    1350Nm
    UM-11
    1450Nm
    UM-12
    3500Nm


Recommend connecting  valve:
1. 2-PC Ball valve:
    thread end (BSPT, NPT, BSP)
    flange end (JIS10K, ANSI150LB, PN10, PN16)
    SOCKET, UNION
    material: PVC, SS304, SS316

2. 3-PC Ball valve
    thread end (BSPT, NPT, BSP)
     material: SS316

3. 3 way ball valve
    thread end (BSPT, NPT, BSP)
    flange end (JIS10K, ANSI150LB, PN10, PN16)
    SOCKET, UNION
    material: PVC, SS304, SS316

4. Butterfly valve
     wafer type: bare shaft
     flange type: bare shaft
     lug type: bare shaft
     PVC butterfly valve
     material: PVC, FCD, SS304, SS316

Certificate link:
ISO 9001
CE
CSA
UL429
IP67


OPTIONAL

  • Heater

    Heater can make inside temperature of electric actuator higher and dryer to prevent the damage of the electric actuator that caused by the frozen of lube oil or the moisture. It also has the function of thermal protector. When the temperature inside the electric actuator exceed the heater can bear, the thermal protector will be triggered to lower the temperature. The voltage of heater is required as as the same as electric actuator.
    It's recommended not to install the heater when the temperature is over 35℃/95℉.

  • FAILSAFE

    For emergency use, when power fail, the function will be triggered to supply power, and the users can operate the electric actuator to open or close status.
    Introduction:
    1. Battery type.
    2. Need power to charge the
    　battery ( as least 8 hours
    　of the first use. )
    3. Preset the open or close in our
    　factory.
    4. With extra limit switch.
    5. No IP67 of the case.

  • Extra limit switch (Dry contact)

    Feedback signal of valve status, a contact that is isolated from a power supply, volt free. 1pc of open status and 1pc of close status.

  • Aluminum housing

    Aluminum housing IP68 water
    proof protection, for outdoor
    use that against dust and water.

  • Connector and bracket

    To connect electric actuator and valve when the electric actuator and valves are not match.

  • bushing

    For shaft size adjusting
