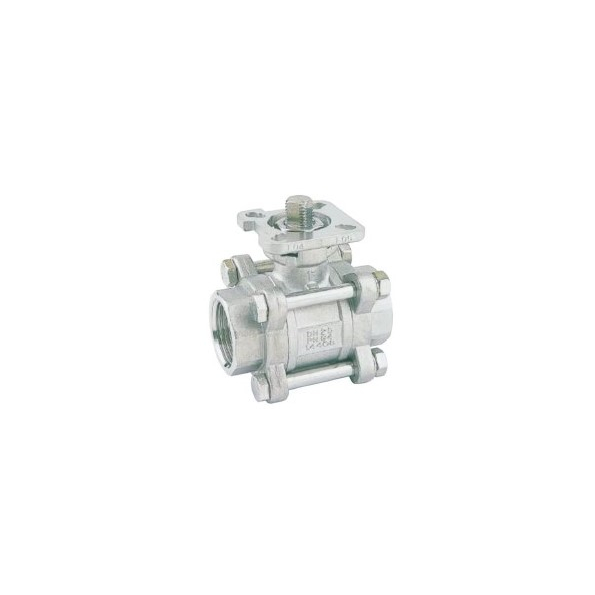

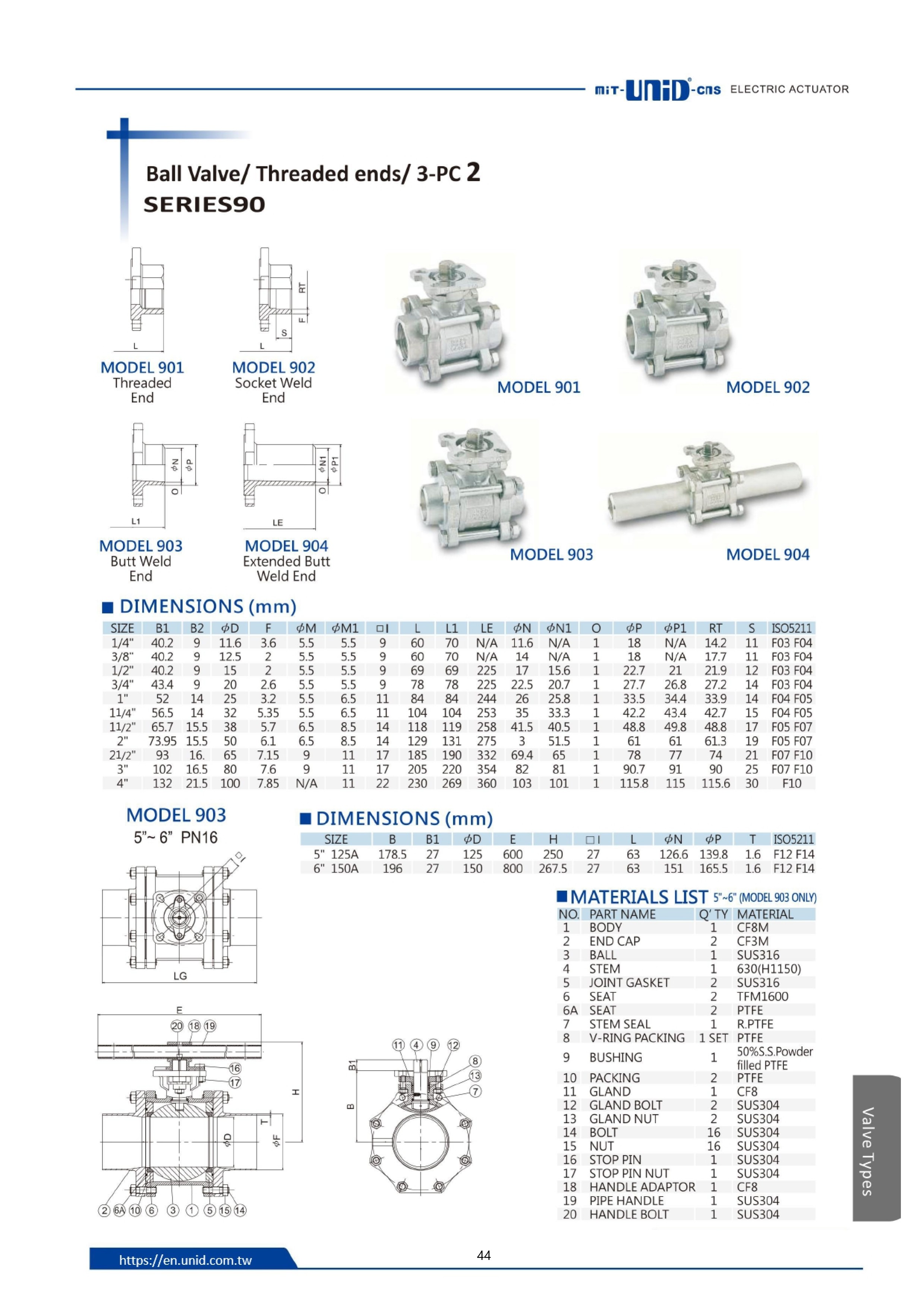

1. 3-PC ball valve, tharead end, spec. download
2. Related products: 2-PC ball valve flange end

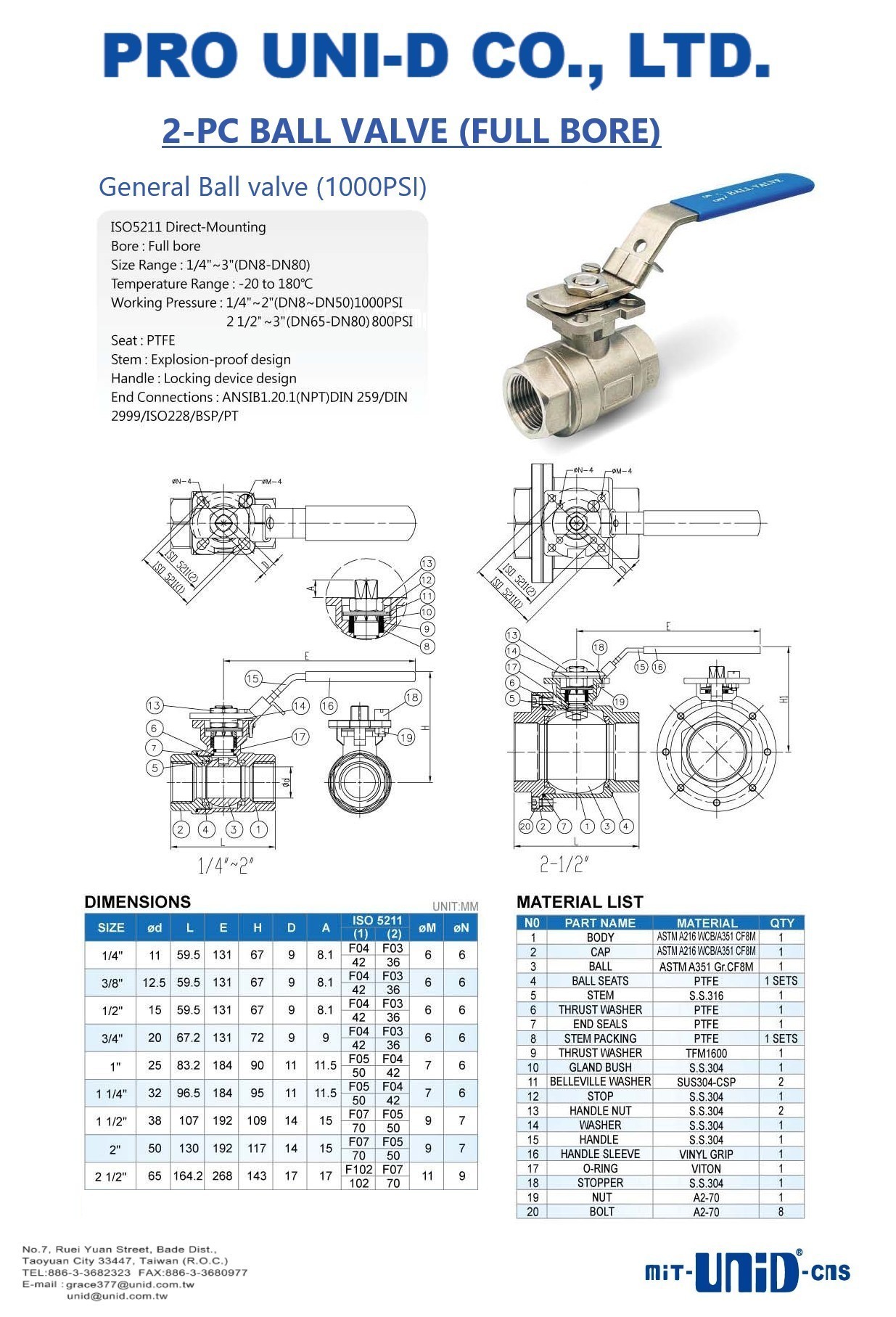

2-PC ball valve thread end
3. Pressure Rating
PN64 (1/4"-2")
PN50 (21/2"-4")
PN16 (5"- 6")
4. Material
EN10213-1.4408, ASTM A351-CF8M
5. Seat : TFM1600, 25%, 50%
6. Bore Type: Full Bore
7. Available connections:
Threaded, Socket weld,
Butt weld, Extended butt weld
8. ISO 5211 mounting dimensions
9. Able to add anti-static device
(Ball-stem-body)
10. Available electric actuators of valves:
Basic type:
| Item no. | Max. Torque (AC220V) | |
| UMS |  |
10Nm |
| UM-1 |  |
35Nm |
| UM-2-5 |  |
50Nm |
| UM-2-7 |  |
70Nm |
| UM-3 |  |
150Nm |
| UM-3-1 |  |
150Nm |
Smart type:
| Item no. | Max. Torque (AC100~220V) | |
| UM1-N | |
35Nm |
| UM2-5-N | |
50Nm |
| UM2-7-N | |
70Nm |
| UM3-N | |
150Nm |
| UM3-1-N | |
150Nm |
Fast type:
| Item no. | Max. Torque (AC100~220V, DC24/AC24V) | |
| UM-1-X |  |
35Nm |
| UM-2-5-X |  |
50Nm |
11. MATERIAL LIST
| No. | PART NAME | MATERIAL | No. | PART NAME | MATERIAL |
| 1 | BODY | CF8M (SS316) | 9 | V-RING PACKING | PTFE |
| 2 | END CAP | FC8M (SS316) | 10 | BUSHING | 50% S.S. Powder filled PTFE |
| 3 | BALL | SUS316 | 11 | GLAND | SS304 |
| 4 | STEM | SS304 | 12 | BELLEVILLE WASHER | SS301 |
| 5 | JOINT GASKET | SUS316 | 13 | STEM NUT | SS304 |
| 4 | SEAT | PTFE | 14 | BOLT | SS304 |
| 7 | STEM SEAL | PTFE | 15 | WASHER | SS304 |
| 8 | O-RING | VITON | 16 | BOLT NUT | SS304 |
