ELECTRIC ACTUATOR

  1. BASIC TYPE　　　　　　ON-OFF

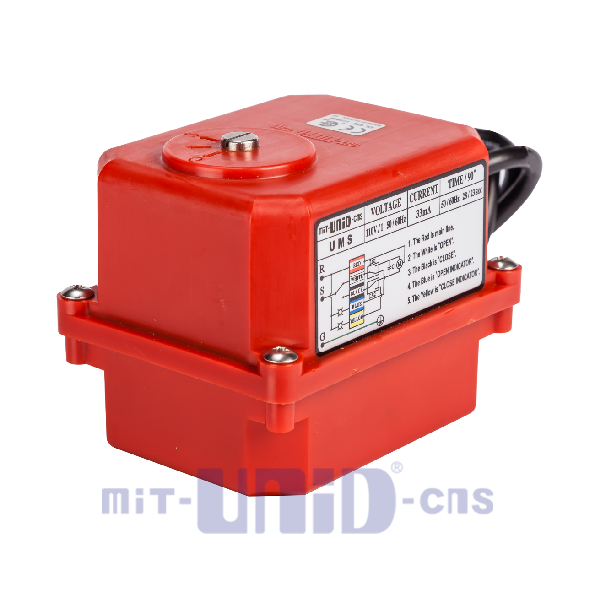

UMS the smallest size electric actuator

1. Connect to quarter turn valves (such as ball valve, butterfly valve,
　and damper), control valve open and close, with ISO5211
　mounting dimension F03/05.
2. Nylon housing that avoid water, dust, and corrosion damage.
3. Stable operating that avoid water hammer and noise.
4. Position indicator to show the status of valve open or close.
Specification
Voltage
AC24V　　
AC110V　　
AC220V　　
Fluid
Air　　　
Oil　　　
Gas　　　
Water　
Chem.　　
Steam　
Vacuum
Other
Fluid temp
0~50℃
0~80℃
0~180℃
Others
Valve size
DN6 1/8"　　　
DN8 (1/4")　　　
DN10 (3/8")　　
Valve material
PVC　　　　
SS316　　　
Others　　
Mounting dimensions
ISO5211　　　
F03　　　　　　　
F05　　　　　　　
Max. torque
10 N.M．
Valve type
2-PC ball valve - thread　
PVC ball valve　　　　
Others　　　　　　　　
Control method
Basic type ON-OFF　　

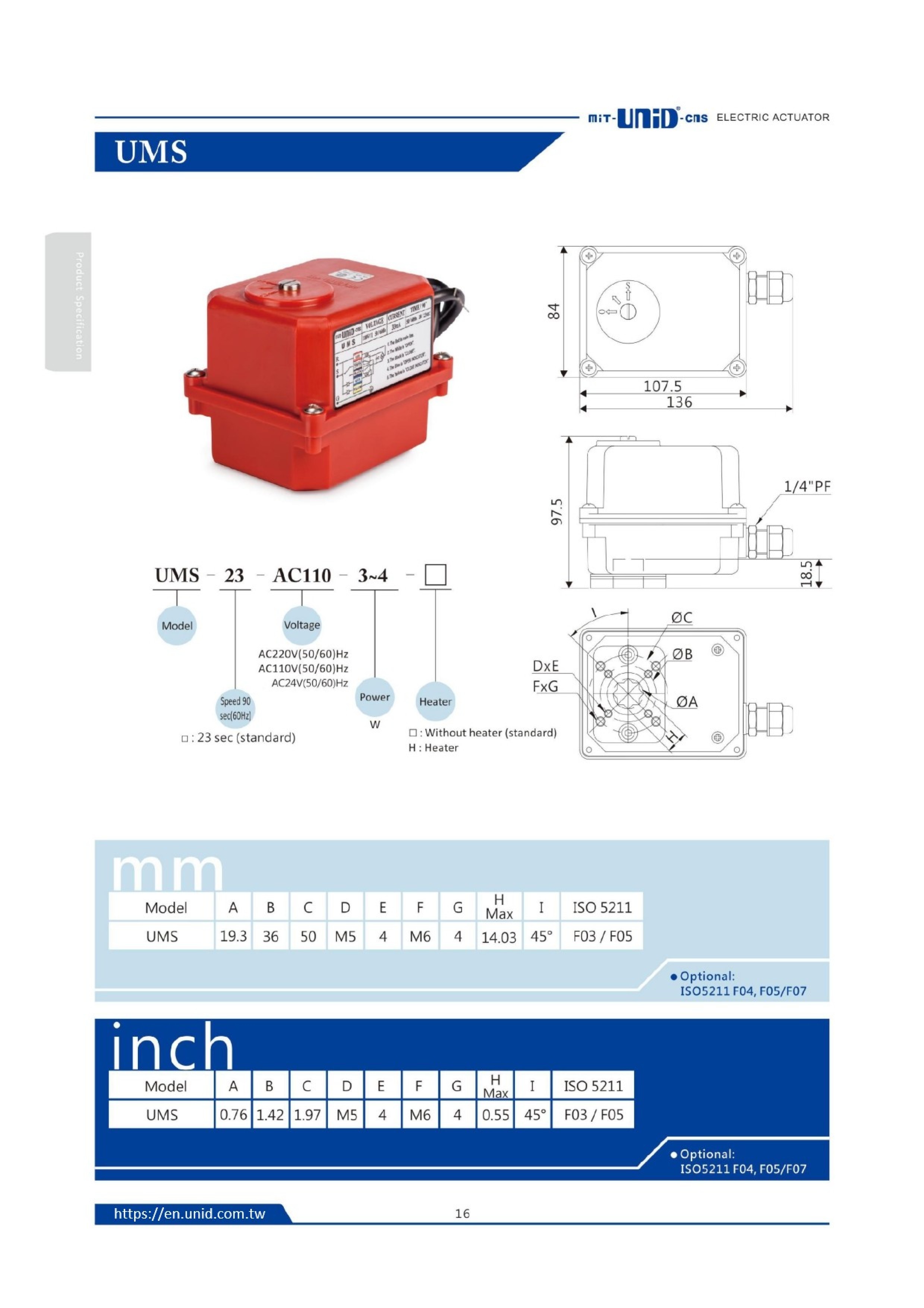

UMS
DOWNLOAD
DETAIL

The electric actuator origin in Taiwan.

Model Power Open / close time (sec) Torque(±5%)
NM
AC110V(60Hz)		 Torque(±5%)
NM
AC220V(60Hz)		 No-loadcurrent consumption
AC
100V~120V		 AC
200V~240V
UMS 3~4W 23 10.5 10.5 33mA 30mA

Model Power Open / close time (sec) Torque(±5%)
NM
AC110V(60Hz)		 No-loadcurrent consumption
AC24V
UMS 3~4W 23 9.0 170mA

UMS
  1. Suggest rated torque: 7.5Nm, suggest using the torque under rated torque to keep lifetime longer.
  2. CE certificate only, no IP67 & CSA, kindly avoid installing outdoor.
  3. Regulation 5 minutes per travel.
  4. Nylon housing.
  5. Available voltage: AC110V, AC220V, AC24V, for other voltage, kindly check with us.
  6. It’s available for ISO5211 F03/F05, it’s easy to assembly with valve.
  7. Optional function: HEATER, extra limit switch (Feedback signal for open or close, one of them. Not available for AC24V)
  8. Related products of basic type
Item no.  Max. Torque (AC220V)
UM-1 UM-1 35Nm
UM-2-5 UM-2-5 50Nm
UM-2-7 UM-2-7 70Nm
UM-3 UM-3 150Nm
UM-3-1 UM-3-1 150Nm
UM-4 UM-4 332Nm
UM-5 UM-5 487Nm
UM-6 UM-6 608Nm
UM-8 UM-8 929Nm
UM-10 UM-11 1350Nm
UM-11 UM-11 1450Nm
UM-12 UM-12 3500Nm

Recommend connecting  valve:
1. 2-PC Ball valve:
    thread end (BSPT, NPT, BSP)
    SOCKET, UNION
    material: PVC, SS304, SS316


Certificate link:
ISO 9001
CE

OPTIONAL

  • Heater

    Heater can make inside temperature of electric actuator higher and dryer to prevent the damage of the electric actuator that caused by the frozen of lube oil or the moisture. It also has the function of thermal protector. When the temperature inside the electric actuator exceed the heater can bear, the thermal protector will be triggered to lower the temperature. The voltage of heater is required as as the same as electric actuator.
    It's recommended not to install the heater when the temperature is over 35℃/95℉.

  • Extra limit switch (Dry contact)

    Feedback signal of valve status, a contact that is isolated from a power supply, volt free. 1pc of open status and 1pc of close status.
