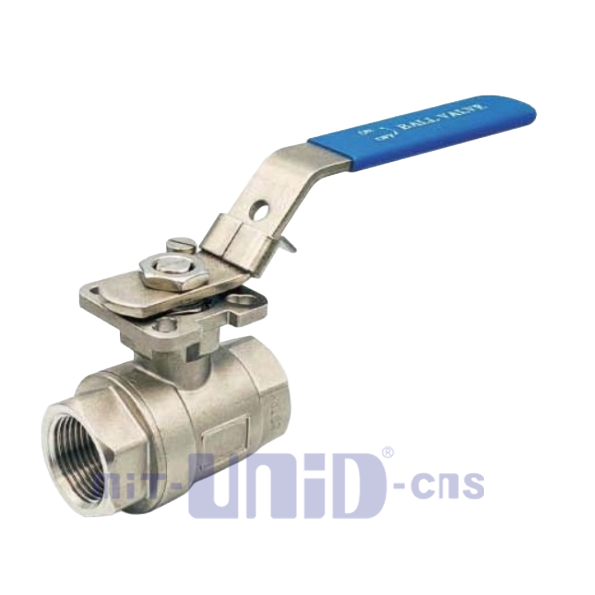

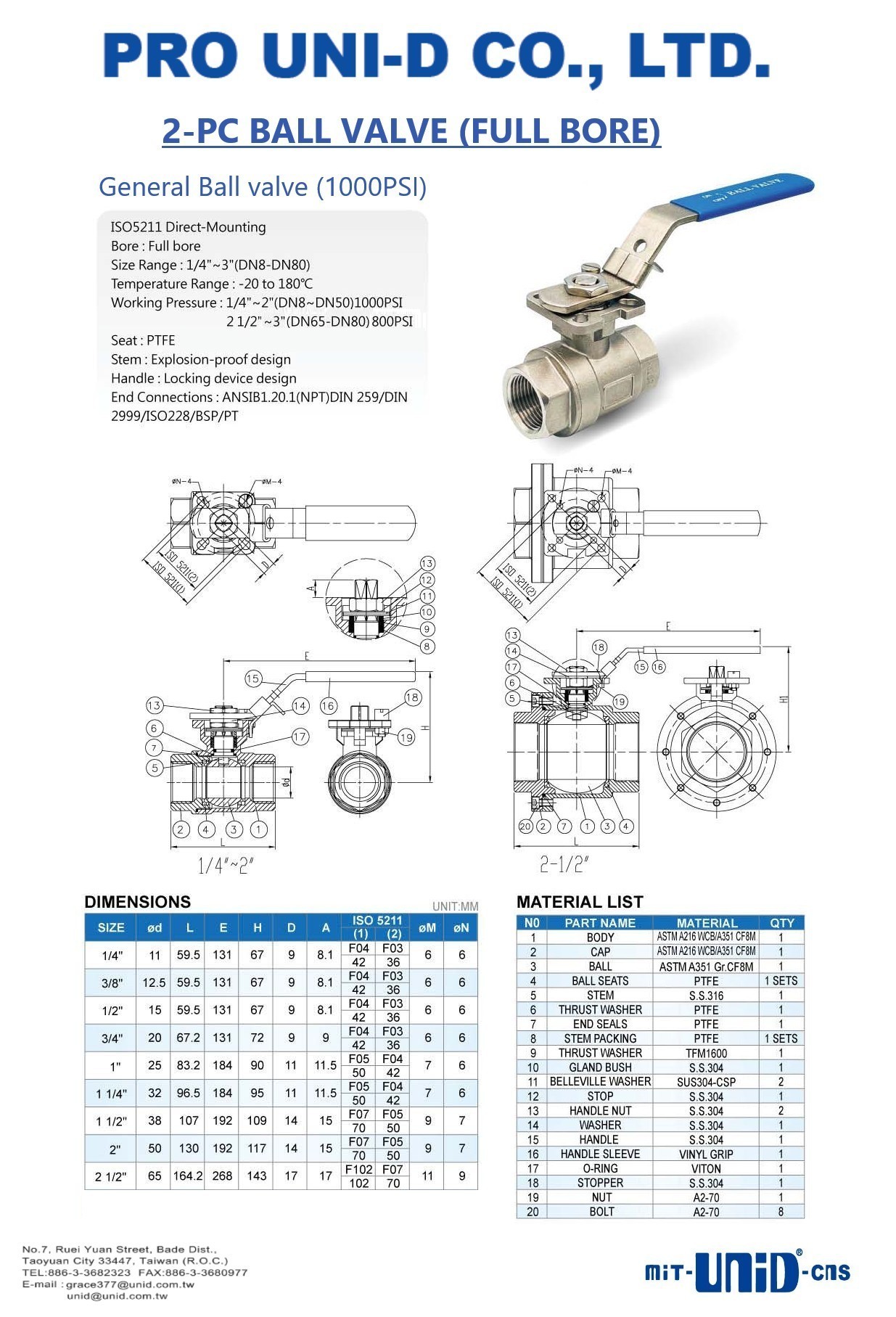

BALL VALVE SPEC. DOWNLOAD
2. Related products: 2-PC ball valve flange end
3-PC ball valve thread end
3. Pressure Rating
Able to add anti-static device
(Ball-stem-body)
2. Related products: 2-PC ball valve flange end
3-PC ball valve thread end
3. Pressure Rating
Able to add anti-static device
(Ball-stem-body)
JIS10K / PN16 / ANSI150LB
4. Bore Type: Full Bore
5. ISO 5211 mounting dimensions
6. Available electric actuators of valves: 4. Bore Type: Full Bore
5. ISO 5211 mounting dimensions
Basic type:
| Item no. | Max. Torque (AC220V) | |
| UMS |  |
10Nm |
| UM-1 |  |
35Nm |
| UM-2-5 |  |
50Nm |
| UM-2-7 |  |
70Nm |
| UM-3 |  |
150Nm |
| UM-3-1 |  |
150Nm |
Smart type:
| Item no. | Max. Torque (AC100~220V) | |
| UM1-N | |
35Nm |
| UM2-5-N | |
50Nm |
| UM2-7-N | |
50Nm |
| UM3-N | |
150Nm |
| UM3-1-N | |
150Nm |
Fast type:
| Item no. | Max. Torque (AC100~220V, DC24/AC24V) | |
| UM-1-X |  |
35Nm |
| UM-2-5-X |  |
50Nm |
7. Material list
| No. | PART NAME | MATERIAL | No. | PART NAME | MATERIAL |
| 1 | BODY | CF8M (SS316) | 9 | GLAND | SS304 |
| 2 | JOINT GASKET | PTFE | 10 | BELLEVILLE WASHER | SS301 |
| 3 | END CAP | FC8M (SS316) | 11 | STEM NUT | SS304 |
| 4 | SEAT | PTFE | 12 | O-RING | VITON |
| 5 | BALL | SUS316 | 13 | STOPPER | SS304 |
| 6 | STEM | SUS316 | 14 | HANDLE | CARBON |
| 7 | STEM SEAL | PTFE | 15 | BUSHING | PTFE with 25% carbon |
| 8 | V-RING PACKING | PTFE |
