ELECTRIC ACTUATOR

  1. SMART TYPE

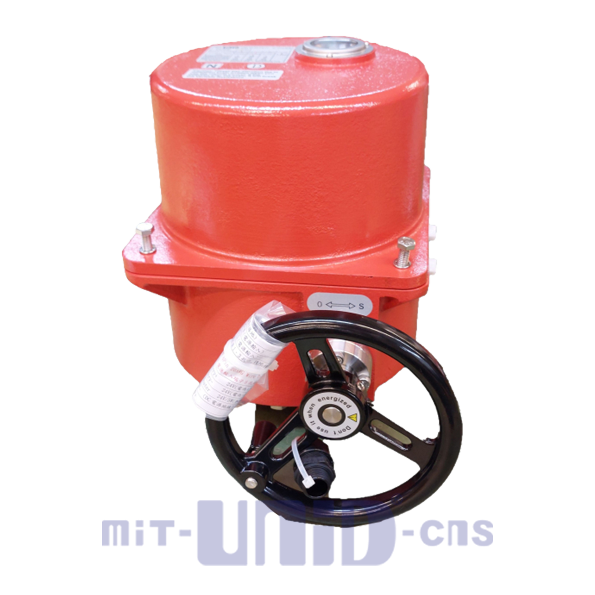

UM11-N

1. Function: connect to quarter turn valves (such as ball valve,
　butterfly valve, and damper), control valve open and close,
　with ISO5211 mounting dimension F10/F14.
2. Application: Automation control, such as RO plant, boiler,
　cooling or chiller system, LPG, electrical machine...etc.
3. Option function: Bluetooth control, Failsafe, modulating,
　extra limit switch, RS485, and heater.
4. IP68 of waterproof,aluminum housing
5. ISO5211 connecting standard.
6. Hand wheel of emergency control.
7. Voltage: AC100V~AC240V, DC24V.
8. Torque range: 1450Nm max, rated torque range: 1125Nm
9. Brushless DC motor that is available of frequency use.
10. Motor insulation Class F.
11. Electromagnetic Compatibility: match EMC certificate.
12. Ambient temperature: -10~+60℃(Humility＜90% / 25℃);
13. Plug & play kit design, it’s easy to maintain and repair.
14. Protect device: torque over-loaded, double limit position,
　　valve stuck, self-lock mechanism and speed control.
Specification
Voltage
DC24V　　
AC110V　　
AC220V　　
AC100-240V
Fluid
Air　　　
Oil　　　
Gas　　　
Water　
Chem.　　
Steam　
Vacuum
Other
Fluid temp
0~50℃
0~80℃
Others
Valve size
DN200 (8")　　
DN250 (10")　　
DN300 (12")　　
DN350 (14")　　
DN400 (16")　　
DN450 (18")　　
Valve material
PVC　　　　
Cast iron
SS316　　　
SS304　　　
Others　　
Mounting dimensions
ISO5211　　　
F10　　　　　　　
F14　　　　　　　
Max. torque
1450 N.M
Valve type
2-PC ball valve - thread　
2-PC ball valve - flange　
3-PC ball valve　　　　
3 way ball valve -thread
3 way ball valve -flange
PVC ball valve　　　　
butterfly valve　　　　
Others　　　　　　　　
Control method
Smart type ON-OFF　　　
Smart type Modulating
UM-8~11
DOWNLOAD
DETAIL

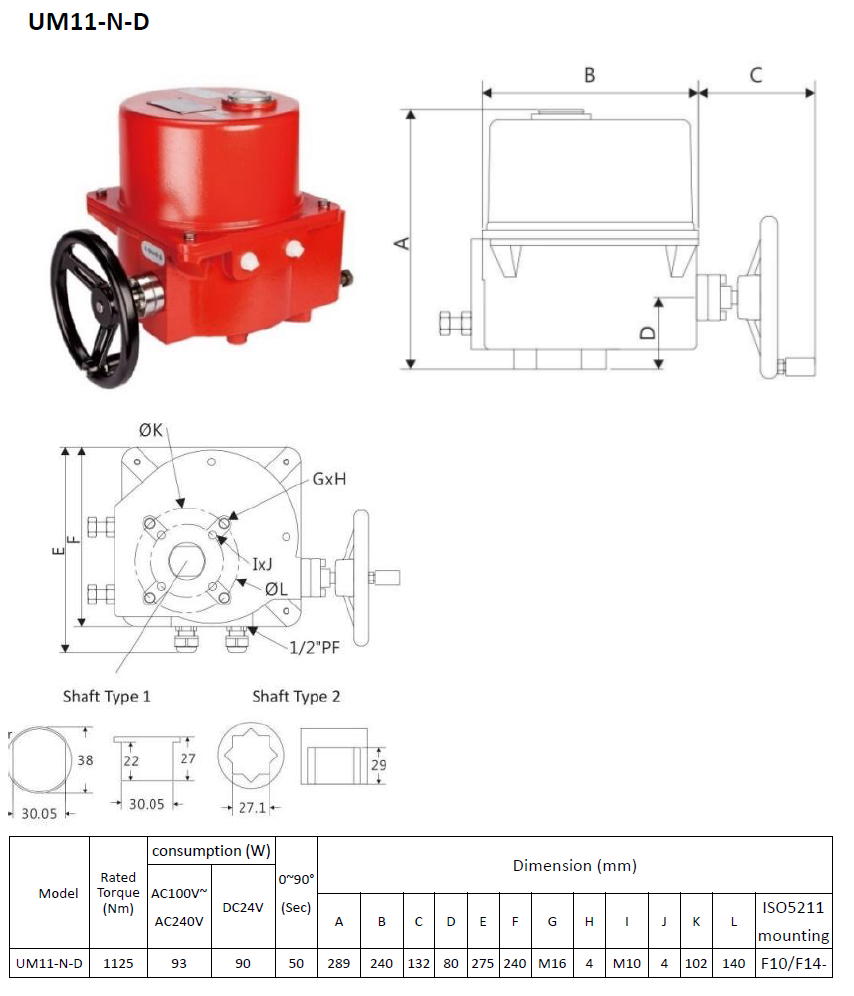

Model Open / close time (sec) Max. Torque(±5%)
NM
AC100V~240V / DC24V		  Power consumption (W)
AC100~240V DC24V
UM11-N 50 1450 93 90
  1. Suggest rated torque: 1125Nm, kindly operate actuators under rated torque to keep lifetime longer.
  2. 30% duty cycle of on-off funcction, and 75% of modulating function.
  3. BLDC motor, it's NOT easy to get heat.
  4. Nylon housing standard.
  5. Waterproof: IP67 (standard), IP68 (optional, aluminum housing)
  6. Available voltage: multi-voltage AC100~240V, DC24V.
  7. Option: bluetooth, failsafe, modulating, power backup, RS485, heater, and aluminum housing.
  8. It’s available for ISO5211 F10/F14, it’s easy for assembly with valve.
  9. Hand wheel.
  10. Signal feedback is standard.
  11. Related products of smart type
Item no.  Max. Torque (AC100~220V)
UM1-N 35Nm
UM2-5-N 50Nm
UM2-7-N 70Nm
UM3-N 150Nm
UM3-1-N 150Nm
UM4-N 300Nm
UM5-N 450Nm
UM6-N 600Nm
UM8-N 1100Nm
UM10-N 1350Nm
UM11-N 1450Nm
UM12-N 3500Nm

Recommend connecting  valve:
1. 2-PC Ball valve:
    thread end (BSPT, NPT, BSP)
    flange end (JIS10K, ANSI150LB, PN10, PN16)
    SOCKET, UNION
    material: PVC, SS304, SS316

2. 3-PC Ball valve
    thread end (BSPT, NPT, BSP)
     material: SS316

3. 3 way ball valve
    thread end (BSPT, NPT, BSP)
    flange end (JIS10K, ANSI150LB, PN10, PN16)
    SOCKET, UNION
    material: PVC, SS304, SS316

4. Butterfly valve
     wafer type: bare shaft
     flange type: bare shaft
     lug type: bare shaft
     PVC butterfly valve
     material: PVC, FCD, SS304, SS316


Certificate link:
ISO 9001
CE
IP68


OPTIONAL

  • Heater

    Heater can make inside temperature of electric actuator higher and dryer to prevent the damage of the electric actuator that caused by the frozen of lube oil or the moisture. It also has the function of thermal protector. When the temperature inside the electric actuator exceed the heater can bear, the thermal protector will be triggered to lower the temperature. The voltage of heater is required as as the same as electric actuator.
    It's recommended not to install the heater when the temperature is over 35℃/95℉.

  • Bluetooth control

    1. Plug & Play kit design, the Bluetooth function was designed in a small PCB that
    easy to install.

    2. Current status record: detect the current status for maintenance, when the current over 100% torque, the current will be recorded in program.

    3. Protection device: over load, double limit position, valve stuck, mechanical lock,
    speed control.

    4. Except PLC, users can control the valve open and close and monitor the status of
    actuator through cellphone at the site.

    5. With PRO UNI-D CO., LTD. APPs that have 10 records of abnormal status for maintenance reference.

  • FAILSAFE

    Our failsafe is battery type that different from traditional mechanical spring return type. When power fail, the function is to operate the valve to the indicated position where requested by customers previously.

  • Modulating

    The function is available for customer to adjust the open angle of valve that regulate liquid flow.

    ․The output signal can be controlled the valve precisely.

    ․BLDC motor, frequently operating without over heat.

    ․75% duty cycle.

    ․LED light indicator.

    ․Over-loaded protection.

    ․Voltage free signal feedback is standard.

  • Aluminum housing

    Aluminum housing IP68 water
    proof protection, for outdoor
    use that against dust and water.

  • Connector and bracket

    To connect electric actuator and valve when the electric actuator and valves are not match.

  • Backup power

    Backup power
    This function is same as failsafe above, the difference is when power fail, customers can operate the valve to the position directly, not preset in factory before shipment.

  • bushing

    For shaft size adjusting

  • RS-485 connecting model

    1. It’s available to control 2~30pcs actuators in sync or out of sync through Modbus ASCII with RS-485

    2. No need to connect to I/O adopters, save the cost on wiring.

    3. It’s available to avoid electromagnetic interference.
