ELECTRIC ACTUATOR

  1. FAST TYPE　　　　　　　　100% DUTY CYCLE

UM-2-5-X

1. Function: connect to quarter turn valves (such as ball valve,
　butterfly valve, and damper), control valve open and close,
　with ISO5211 mounting dimension F03/05/F07.
2. Application: Automation control, such as RO plant, boiler,
　cooling or chiller system, LPG, electrical machine...etc.
3. Option function: heater.
4. IP67 waterproof, nylon housing (IP67)
5. ISO5211 connecting standard.
6. Manual override of emergency control.
7. Voltage: AC100V~AC240V, DC24V.
8. Torque range: 35Nm max, rated torque range: 27Nm --10sec
Torque range: 50Nm max, rated torque range: 37.5Nm --11sec
9. Brushless DC motor that is available of frequency use.
10. Electromagnetic Compatibility: match EMC certificate.
11. Ambient temperature: -10~+60℃(Humility＜90% / 25℃);
12. Plug & play kit design, it’s easy to maintain and repair.
15. Protect device: torque over-loaded, double limit position,
　　valve stuck, self-lock mechanism and speed control.
Specification
Voltage
AC24V/DC24V
DC24V　　
AC24V　　
AC110V　　
AC220V　　
AC100-240V
Fluid
Air　　　
Oil　　　
Gas　　　
Water　
Chem.　　
Steam　
Vacuum
Other
Fluid temp
0~50℃
0~80℃
Others
Valve size
DN8 (1/4")　　　
DN10 (3/8")　　
DN15 (1/2")　　
DN20 (3/4")　　
DN25 (1")　　
DN35(1-1/4")
DN40(1-1/2")
DN50 (2")　　
Valve material
PVC　　　　
Cast iron
SS316　　　
SS304　　　
Others　　
Mounting dimensions
ISO5211　　　
F03　　　　　　　
F04　　　　　　　
F05　　　　　　　
F07　　　　　　　
Max. torque
50 N.M．
Valve type
2-PC ball valve - thread　
2-PC ball valve - flange　
3-PC ball valve　　　　
3 way ball valve -thread
3 way ball valve -flange
PVC ball valve　　　　
butterfly valve　　　　
Others　　　　　　　　
Control method
Fast type 100% duty cycle
UM-2-5-X
DOWNLOAD
DETAIL

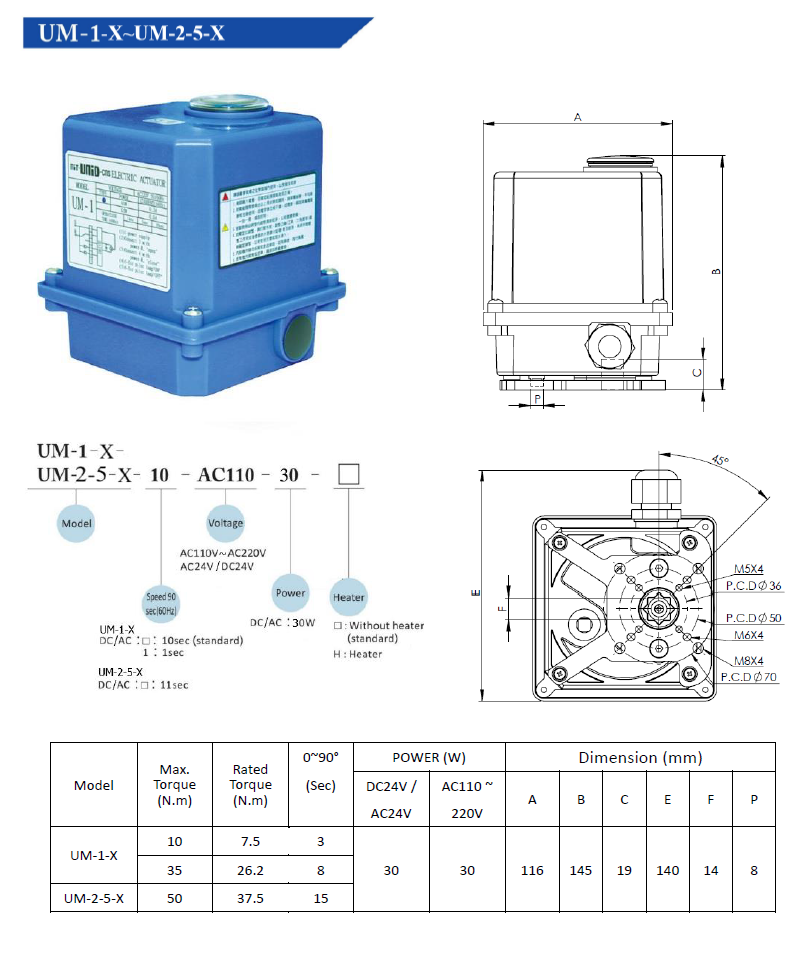

Model Open / close time (sec) Max. Torque(±5%)
NM
AC100V~240V (DC24V/AC24)
UM-2-5-X 11 50
1. Suggest rated torque: 37.5Nm, kindly operate actuators under rated torque to keep lifetime longer.
3. 100% duty cycle of on-off funcction.
4. Nylon housing standard.
5. Waterproof: IP67 (standard).
6. Available voltage: multi-voltage AC100~240V, DC24V/AC24V.
7. Option: heater.
8. It’s available for ISO5211 F03/F05/F07 and F04, it’s easy for assembly with valve.
9. Manual override.
10. Signal feedback is standard.
11. Related products of fax type
Item no.  Max. Torque (AC100~220V, DC24/AC24V)
UM-1-X 35Nm
UM-2-5-X 50Nm

Recommend connecting  valve:
1. 2-PC Ball valve:
    thread end (BSPT, NPT, BSP)
    flange end (JIS10K, ANSI150LB, PN10, PN16)
    SOCKET, UNION
    material: PVC, SS304, SS316

2. 3-PC Ball valve
    thread end (BSPT, NPT, BSP)
     material: SS316

3. 3 way ball valve
    thread end (BSPT, NPT, BSP)
    flange end (JIS10K, ANSI150LB, PN10, PN16)
    SOCKET, UNION
    material: PVC, SS304, SS316

4. Butterfly valve
     wafer type: bare shaft
     flange type: bare shaft
     lug type: bare shaft
     PVC butterfly valve
     material: PVC, FCD, SS304, SS316


Certificate link:
ISO 9001
CE
IP67



OPTIONAL

  • Heater

    Heater can make inside temperature of electric actuator higher and dryer to prevent the damage of the electric actuator that caused by the frozen of lube oil or the moisture. It also has the function of thermal protector. When the temperature inside the electric actuator exceed the heater can bear, the thermal protector will be triggered to lower the temperature. The voltage of heater is required as as the same as electric actuator.
    It's recommended not to install the heater when the temperature is over 35℃/95℉.
