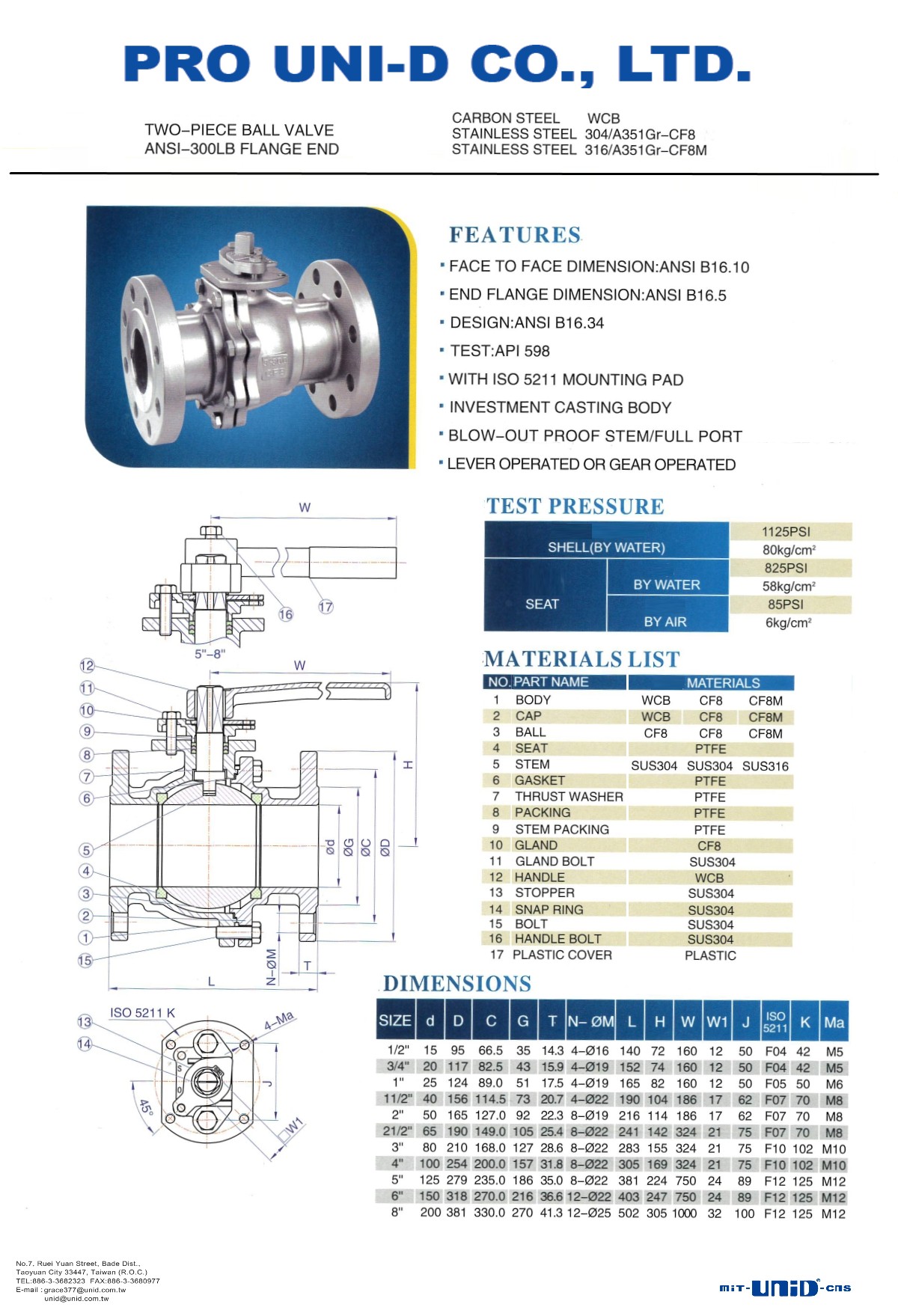

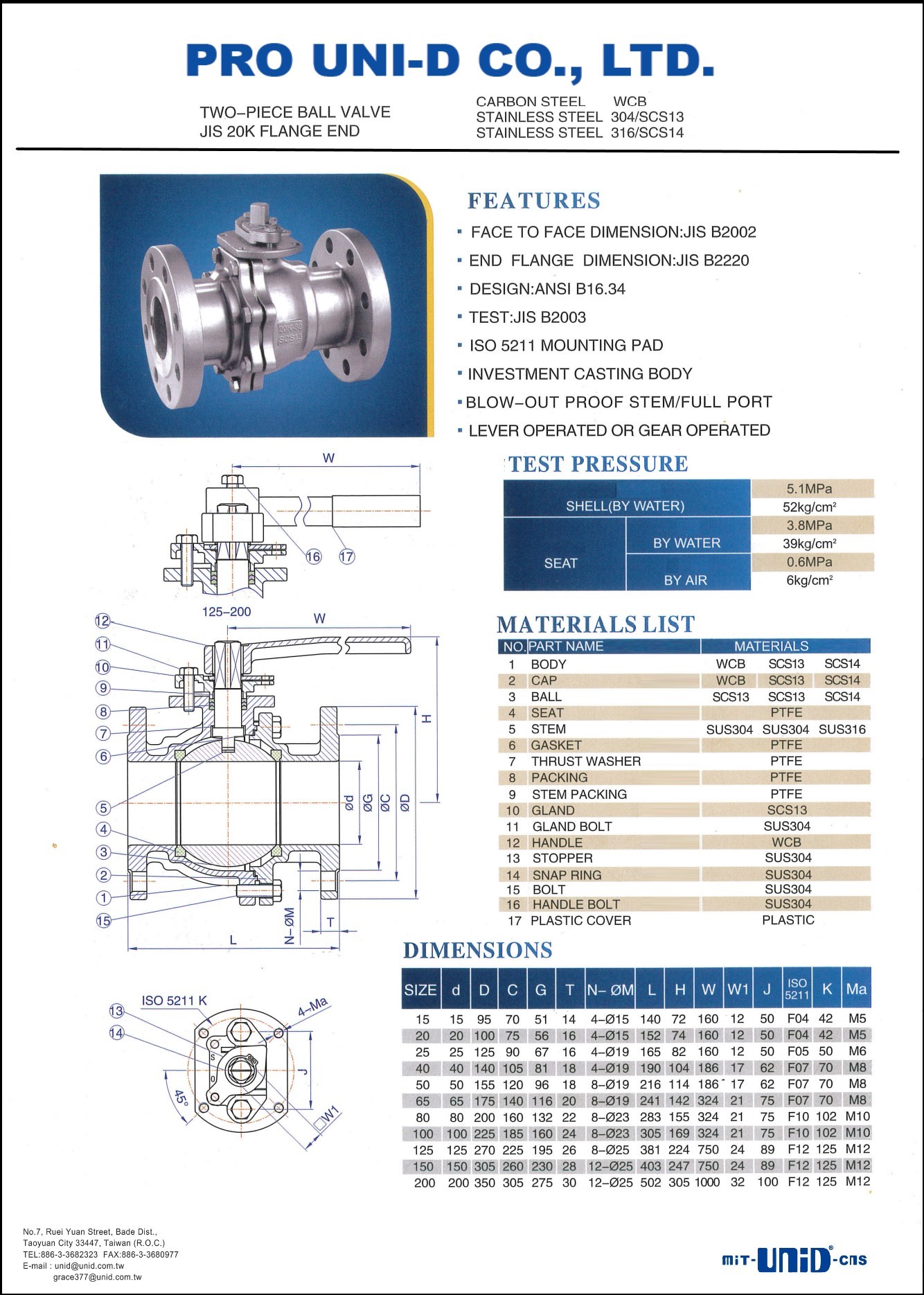

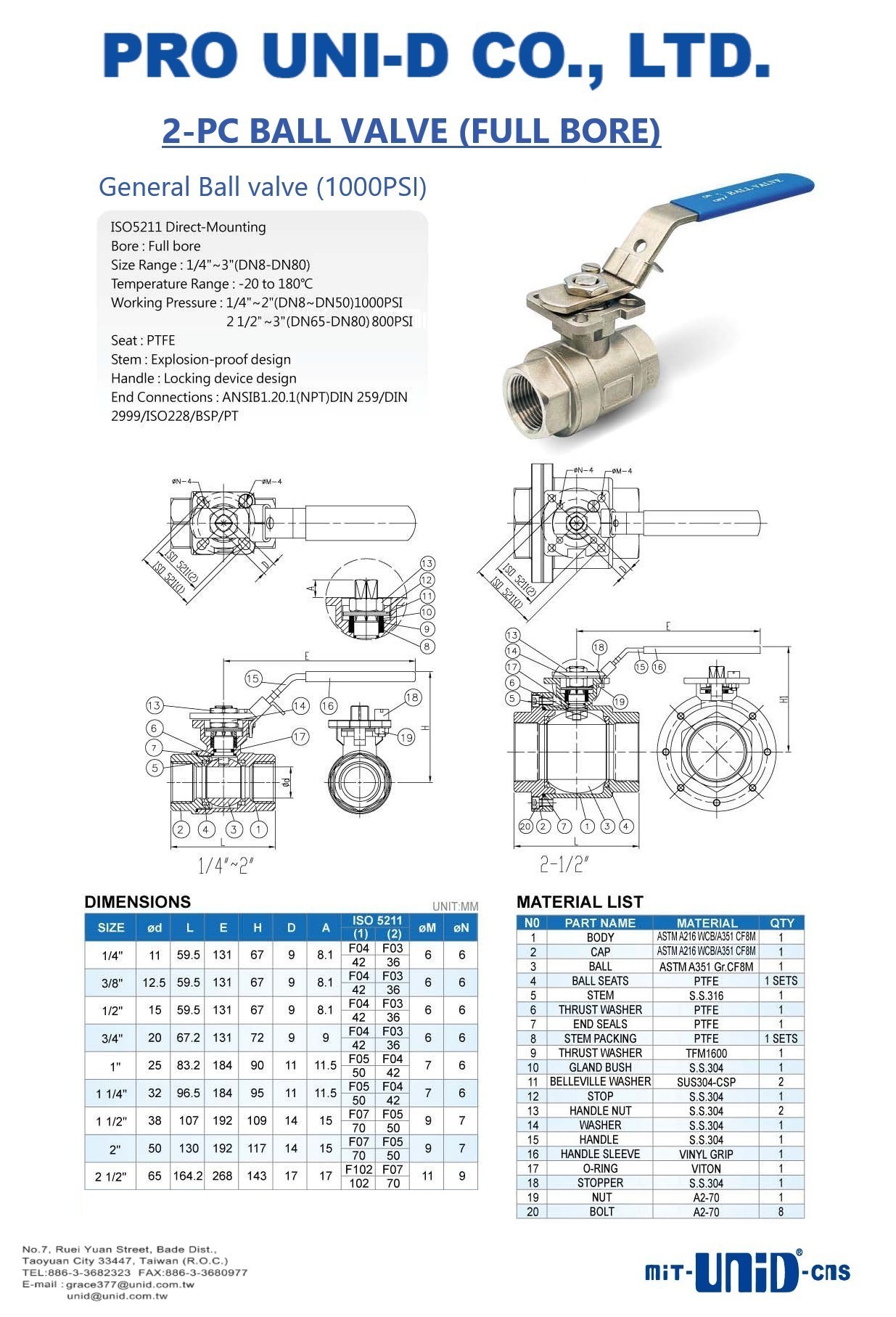

1. 2-PC BALL VALVE, FLANGE END, SPEC. DOWNLOAD
2. Related products: 2-PC ball valve thread end
3-PC ball valve thread end
3. Operating pressure: 10kgfcm2
4. Fluid temperature: 80℃
5. Material : FC / 304 /316
6. Available electric actuators of valves:
Basic type:
| Item no. | Max. Torque (AC220V) | |
| UMS |  |
10Nm |
| UM-1 |  |
35Nm |
| UM-2-5 |  |
50Nm |
| UM-2-7 | |
70Nm |
| UM-3 |  |
150Nm |
| UM-3-1 |  |
150Nm |
| UM-4 |  |
332Nm |
| UM-5 |  |
487Nm |
| UM-6 | |
608Nm |
| UM-8 |  |
929Nm |
| UM-10 | |
1350Nm |
| UM-11 | |
1450Nm |
| UM-12 |  |
3500Nm |
Smart type:
| Item no. | Max. Torque (AC100~220V) | |
| UM1-N |  |
35Nm |
| UM2-5-N |  |
50Nm |
| UM2-7-N |  |
70Nm |
| UM3-N |  |
150Nm |
| UM3-1-N |  |
150Nm |
| UM4-N |  |
300Nm |
| UM5-N |  |
450Nm |
| UM6-N | |
600Nm |
| UM8-N |  |
1100Nm |
| UM10-N | |
1350Nm |
| UM11-N | |
1450Nm |
| UM12-N |  |
3500Nm |
| Item no. | Max. Torque (AC100~220V, DC24/AC24V) | |
| UM-1-X |  |
35Nm |
| UM-2-5-X |  |
50Nm |
7. Material list:
| No. | PART | MATERIAL |
| 1 | BODY | FC / WCB / SS304 / SS316 |
| 2 | CAP | FC / WCB / SS304 / SS316 |
| 3 | BALL | SS304 / SS316 |
| 4 | SEAT | PTFE |
| 5 | STEM | SS304 / SS316 |
| 6 | GASKET | PTFE |
| 7 | THRUST WASHER | PTFE |
| 8 | PACKING | PTFE |
| 9 | STEM PACKING | PTFE |
| 10 | GLAND | SS41 / SS304 |
| 11 | GLAND BOLT | S41C / Carbon steel / SS304 |
| 12 | HANDLE | WCB |
| 13 | STOPPER | SS304 |
| 14 | SNAP RING | SS304 |
| 15 | BOLT | S41C / Carbon steel / SS304 |
