ELECTRIC ACTUATOR
DETAIL
Pic
Item
Voltage
Fluid
Fluid temp
Valve size
Valve material
Mounting dimensions
Max. torque
Valve type
Control method
Item

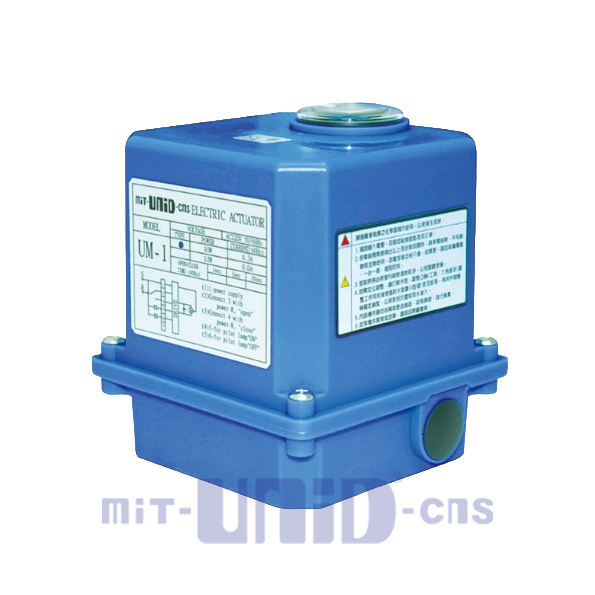

UM-1-X
Voltage
AC24V/DC24V DC24V AC24V AC110V AC220V AC100-240V Fluid
Air Oil Gas Water Chem. Steam Vacuum Other Fluid temp
0~50℃ 0~80℃ Others Valve size
DN8 (1/4") DN10 (3/8") DN15 (1/2") DN20 (3/4") DN25 (1") DN35(1-1/4") DN40(1-1/2") DN50 (2") Valve material
PVC Cast iron SS316 SS304 Others Mounting dimensions
ISO5211 F03 F04 F05 F07 Max. torque
10 N.M． 35 N.M． Valve type
2-PC ball valve - thread 2-PC ball valve - flange 3-PC ball valve 3 way ball valve -thread 3 way ball valve -flange PVC ball valve butterfly valve Others Control method
Fast type 100% duty cycle
Item
UM-2-5-X
Voltage
AC24V/DC24V DC24V AC24V AC110V AC220V AC100-240V Fluid
Air Oil Gas Water Chem. Steam Vacuum Other Fluid temp
0~50℃ 0~80℃ Others Valve size
DN8 (1/4") DN10 (3/8") DN15 (1/2") DN20 (3/4") DN25 (1") DN35(1-1/4") DN40(1-1/2") DN50 (2") Valve material
PVC Cast iron SS316 SS304 Others Mounting dimensions
ISO5211 F03 F04 F05 F07 Max. torque
50 N.M． Valve type
2-PC ball valve - thread 2-PC ball valve - flange 3-PC ball valve 3 way ball valve -thread 3 way ball valve -flange PVC ball valve butterfly valve Others Control method
Fast type 100% duty cycle
