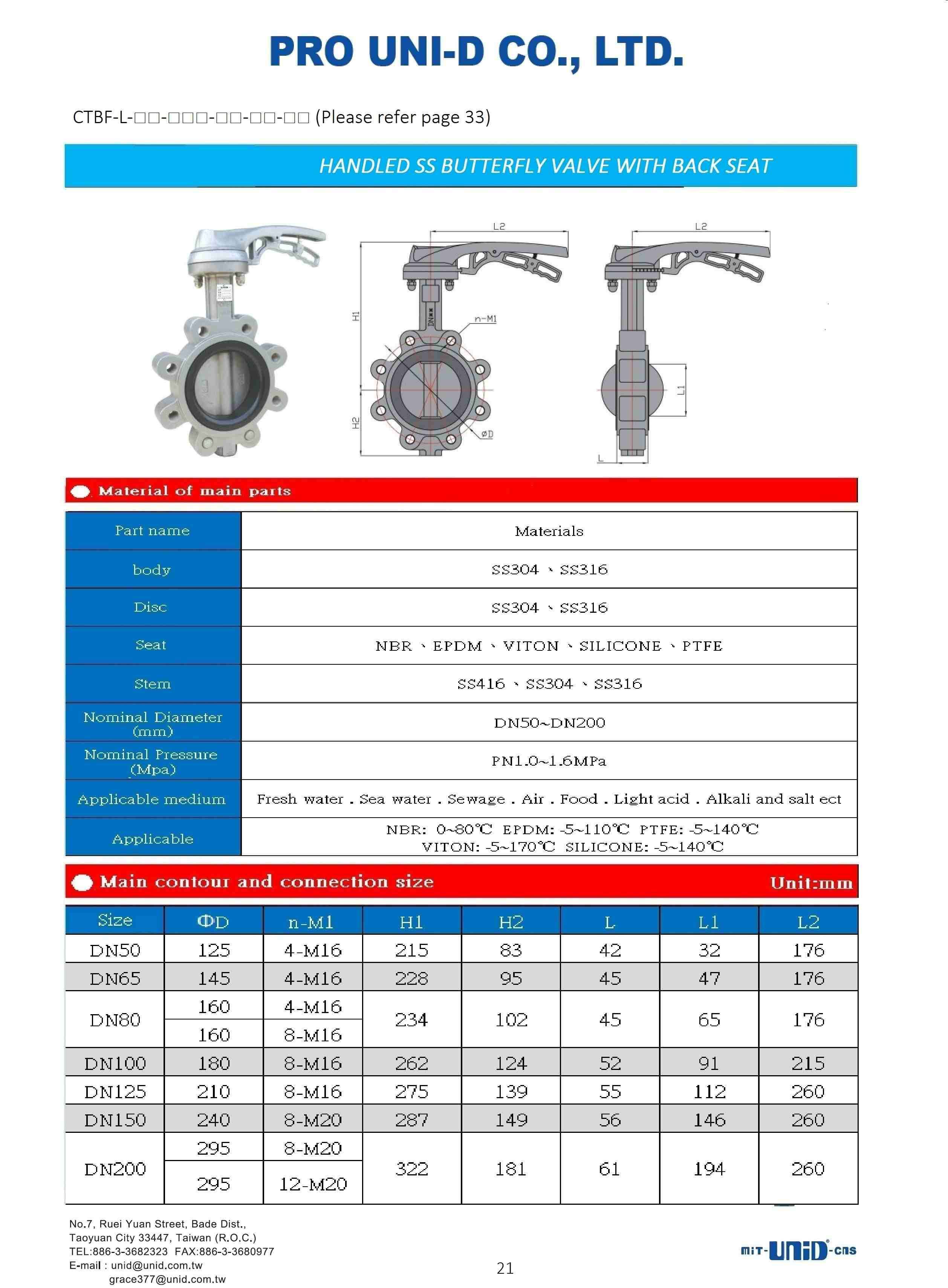

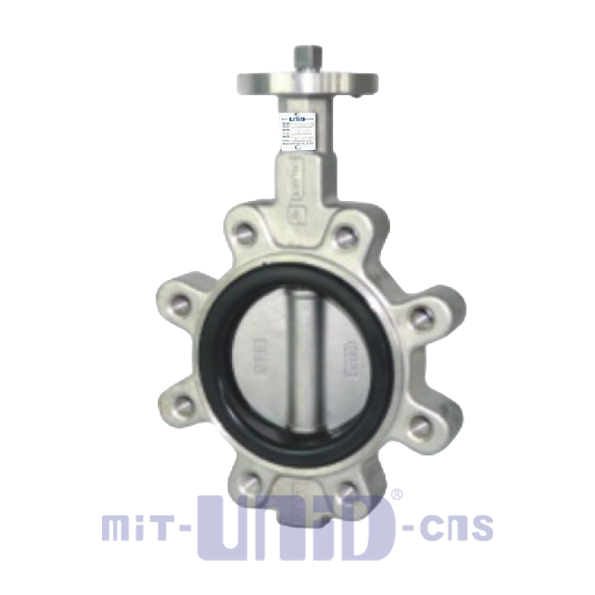

SS LUG BUTTERFLY VALVE, LEVER

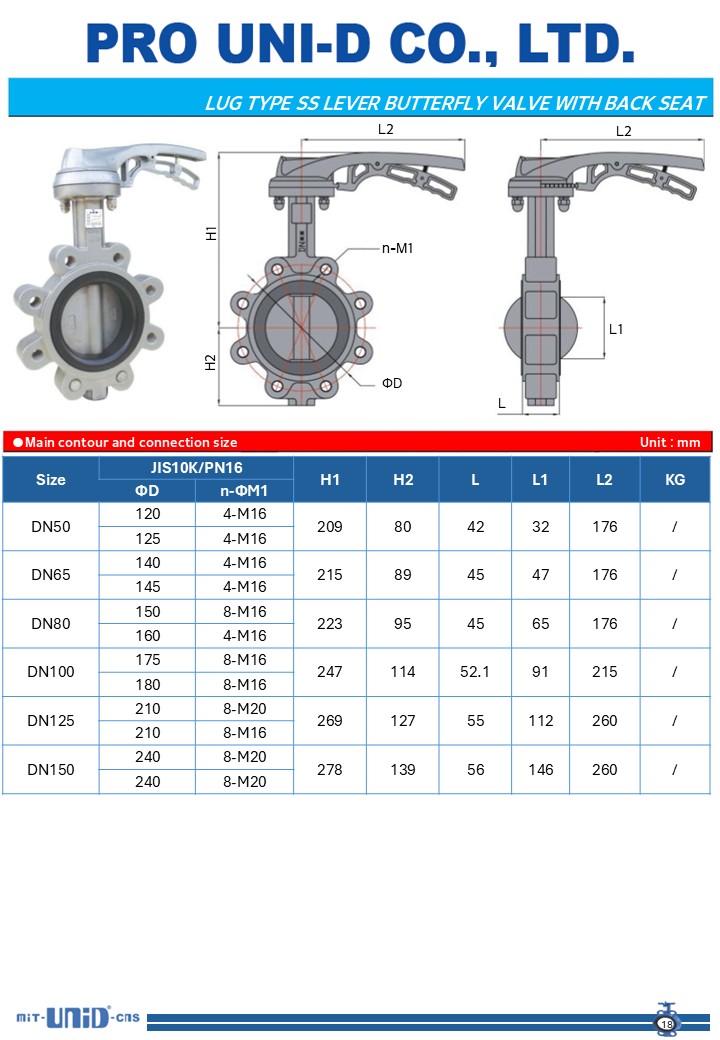

1. Stainless steel lug butterfly valve, lever, spec. download
2. Related products:
| FCD BODY | SS BODY |
| Bare shaft: Wafer type Lug type Flange type |
Bare shaft: Wafer type Lug type Flange type |
| Lever: Wafer type Lug type Flange type |
Lever: Wafer type Lug type Flange type |
| Gear box: Wafer type Lug type Flange type |
Gear box: Wafer type Lug type Flange type |
3. Available size: 2"~8"
4. ISO mouting dimensions
5. Handle material: aluminum alloy is standard, stainless steel is option.
6. Spec. as following:
|
Part |
LUG butterfly valve |
| Body | Stainless Steel 304.316 |
| Disc | Stainless Steel 304.316 |
| Seat | EPDM、NBR、PTFE、VITON |
| Stem | Stainless Steel 304.416 |
| Operating pressure | 10kgf-cm2 / 16kgfcm2 |
| Applicable Medium | Water / Sewage / Oil / Air ...etc. |
| Applicable Temperature |
EPDM：-5℃~110℃ |
