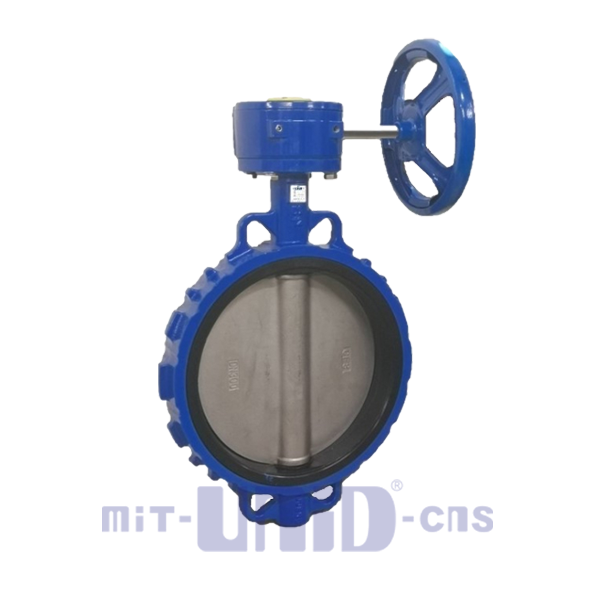

FCD WAFER BUTTERFLY VALVE, GEAR BOX

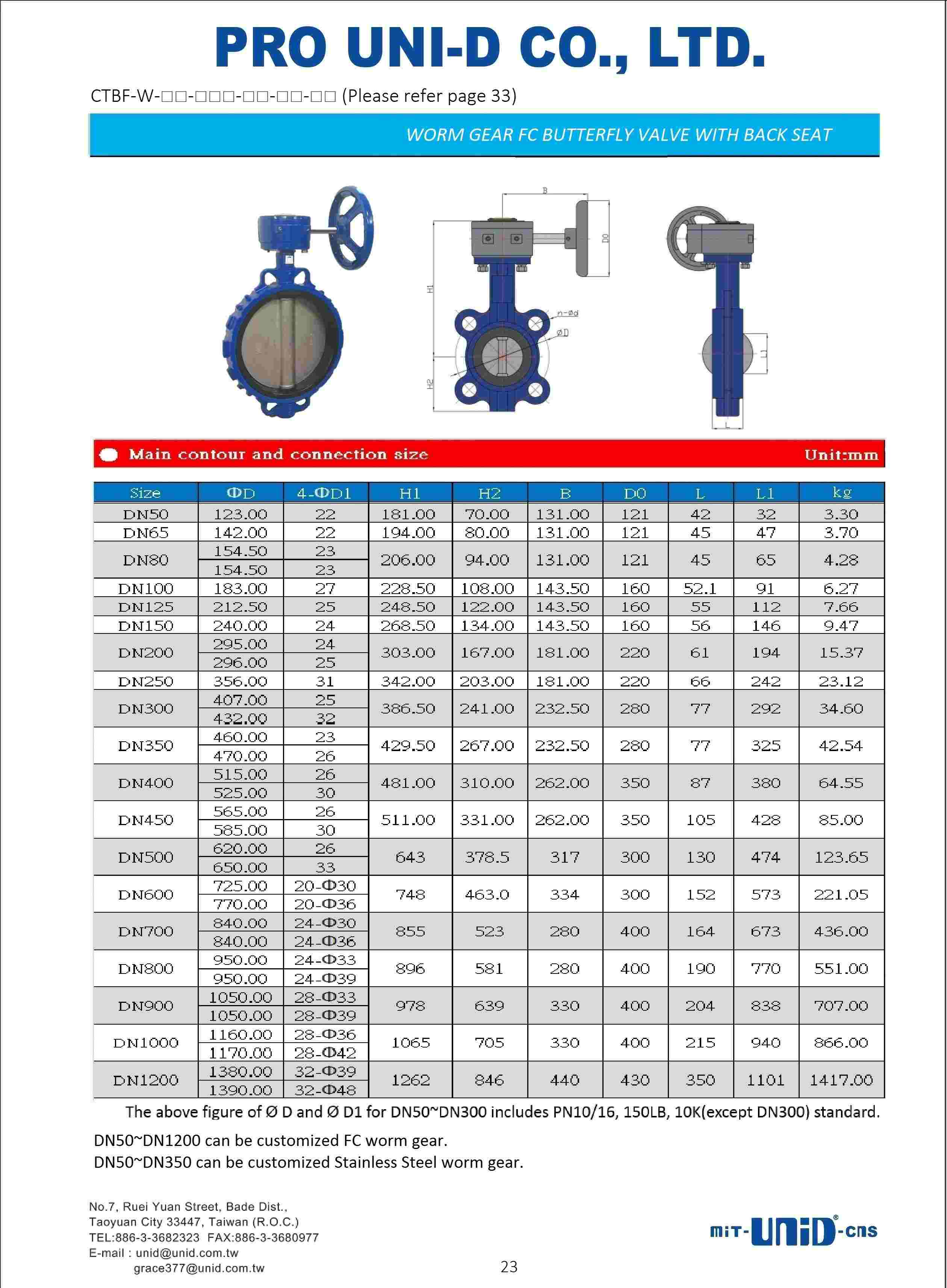

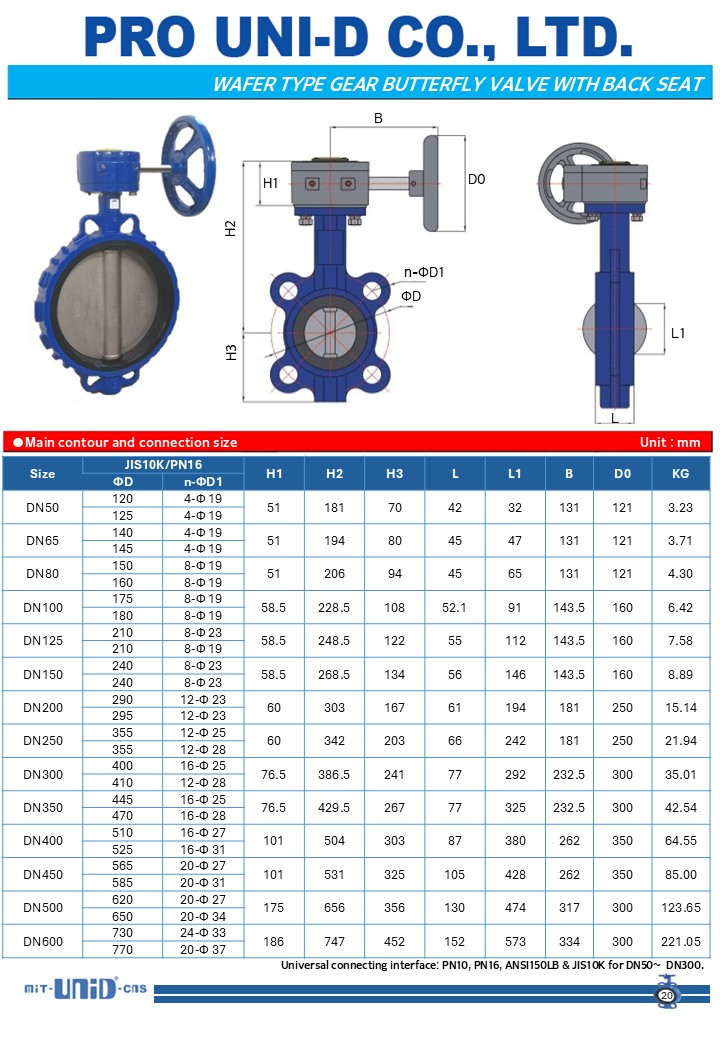

1. FCD wafer butterfly valve, gear box, spec. download
2. Related products:
| FCD BODY | SS BODY |
| Bare shaft: Wafer type Lug type Flange type |
Bare shaft: Wafer type Lug type Flange type |
| Lever: Wafer type Lug type Flange type |
Lever: Wafer type Lug type Flange type |
| Gear box: Wafer type Lug type Flange type |
Gear box: Wafer type Lug type Flange type |
3. Available size: 2"~48"
4. ISO mouting dimensions
5. Handle material: aluminum alloy is standard, stainless steel is option.
6. Spec. as following:
|
Part |
Gear butterfly valve, hand wheel. |
| Body | Ductile Iron(FCD) |
| Disc | Stainless Steel 304.316 / Dutile Iron With Nickel-Plated (N.P) |
| Seat | EPDM、NBR、PTFE、VITON |
| Stem | Stainless Steel 304.416 / S45C Carbon Steel |
| Operating pressure | 10kgf-cm2 / 16kgfcm2 |
| Applicable Medium | Water / Sewage / Oil / Air...etc. |
| Applicable Temperature |
EPDM：-5℃~110℃ |
