SS lug butterlfy valve, bare shaft type.

1. SEAT: EPDM (standard), PTFE, NBR, VITON
2. Body/disc material: 304/304, 304/316, 316/316.
3. Connecting interface: PN16, ANSI150LB, JIS10K
4. Available size: 2” ~24”.
5. Operating pressure: 10kgfcm2 / 16kgfcm2 (optional)
DETAIL

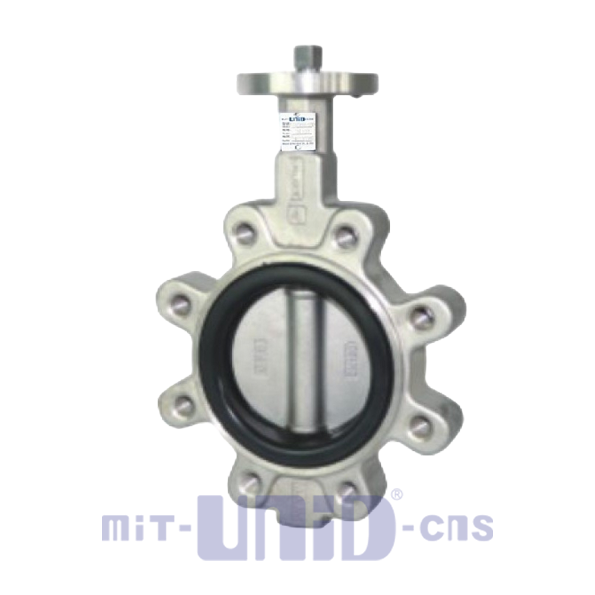

SS LUG BUTTERFLY VALVE, BARE SHAFT

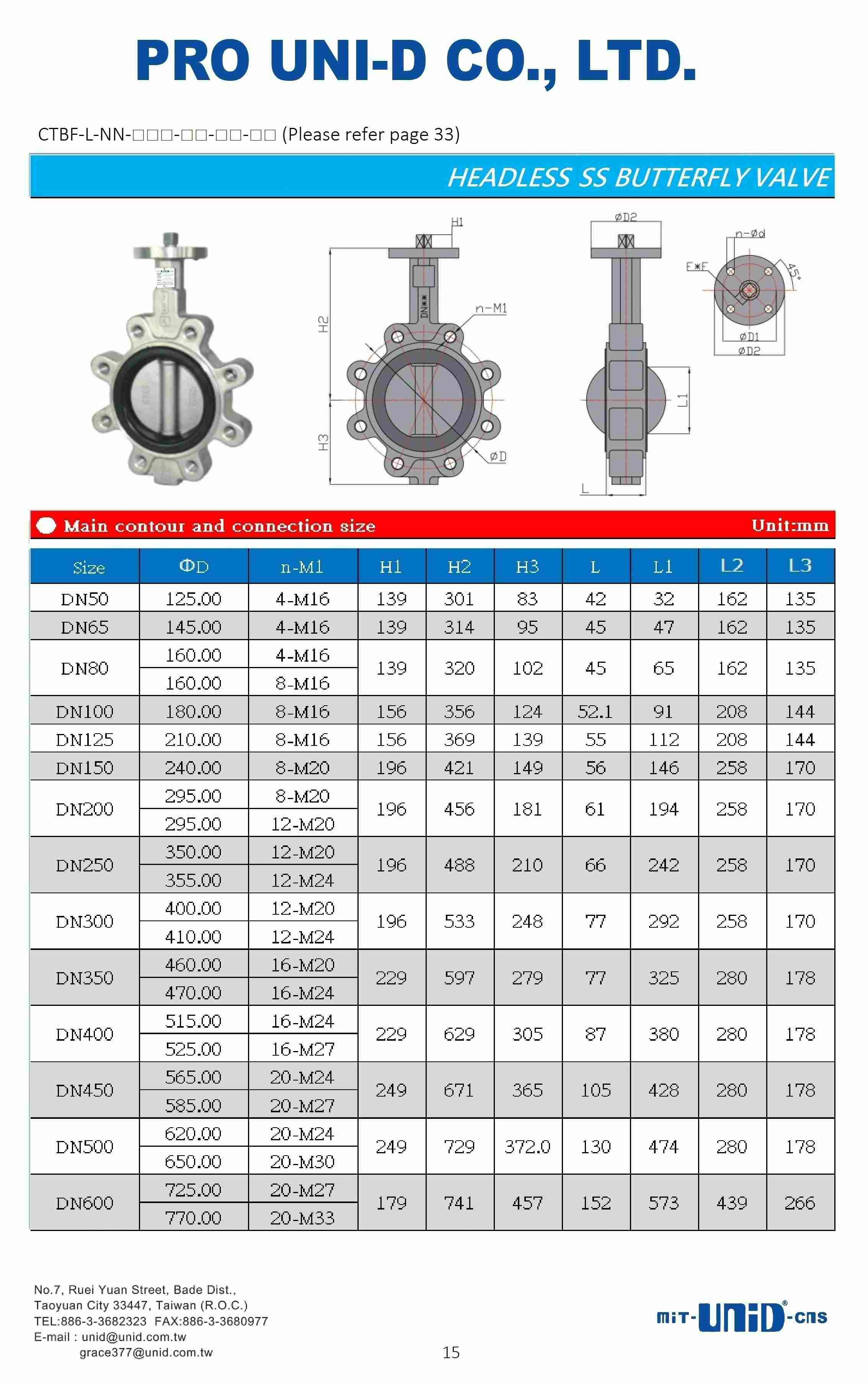

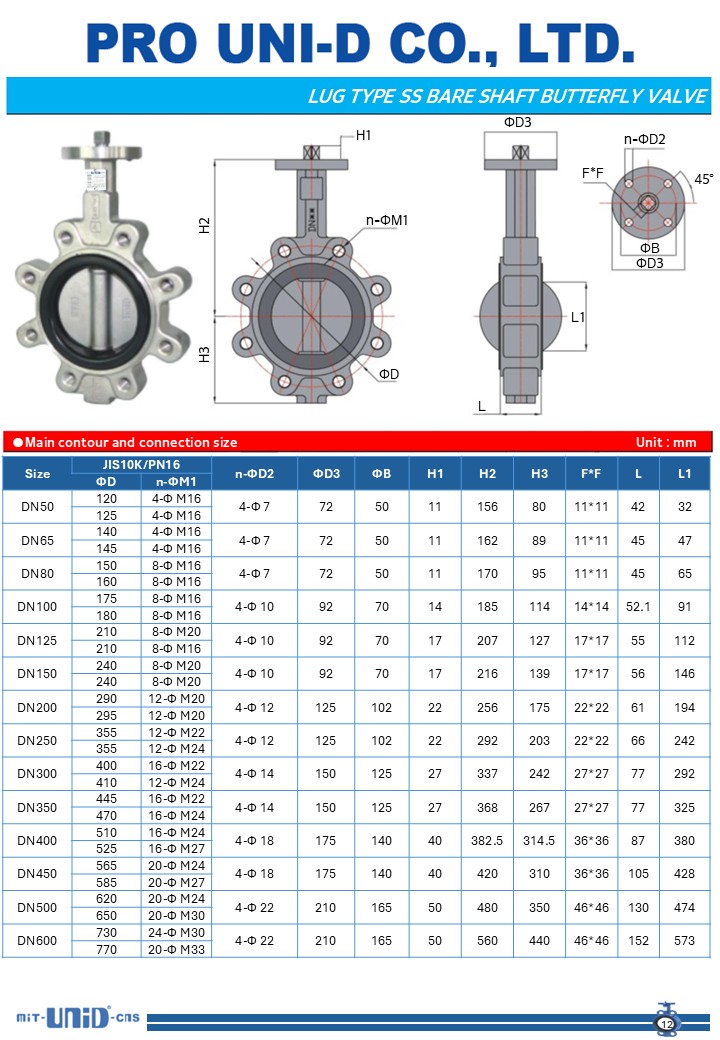

1. Stainless steel lug butterfly valve spec. download.
2. Related products:

FCD BODY SS BODY
Bare shaft:
Wafer type
Lug type
Flange type
Bare shaft:
Wafer type
Lug type
Flange type
Lever:
Wafer type
Lug type
Flange type
Lever:
Wafer type
Lug type
Flange type
Gear box:
Wafer type
Lug type
Flange type
Gear box:
Wafer type
Lug type
Flange type

3. Available size: 2"~24"
4. ISO mouting dimensions
5. Spec. as following:

Part

LUG butterfly valve
Body Stainless Steel 304.316
Disc Stainless Steel 304.316
Seat EPDM、NBR、PTFE、VITON
Stem Stainless Steel 304.416
Operating pressure 10kgf-cm2 / 16kgfcm2
Applicable Medium Water / Sewage / Oil / Air ...etc.
Applicable Temperature

EPDM:-5℃~110℃
NBR:0℃~80℃
PTFE:0℃~140℃
VITON:-5℃~170℃
SILICONE:-5℃~140℃
For other medium, kindly contact us.
