SOLENOID VALVE
DETAIL
Pic
Item
Voltage
Fluid
Fluid temp
Operating pressure
Valve size
Valve material
Connecting interface
Matching coil
Action mode

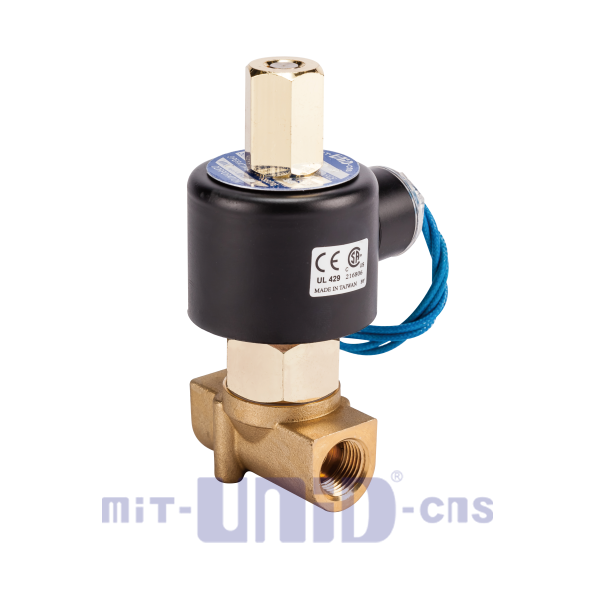

Item
UD-6NO~10NO
Voltage
DC12V DC24V AC24V AC110V AC220V Fluid
water air light oil vacuum gas Fluid temp
-5℃~+80℃ -5℃~+130℃ Operating pressure
0.5 bar 1 bar 3 bar 5 bar 7 bar 8 bar 10 bar 15 bar 20 bar 10^-3 Torr Valve size
1/8" 1/4" 3/8" Valve material
brass Connecting interface
PT thread BSP thread NPT thread Matching coil
iron case coil (2-wire) waterproof coil (2-wire) waterproof coil (DIN PLUG) Action mode
normally open (NO)

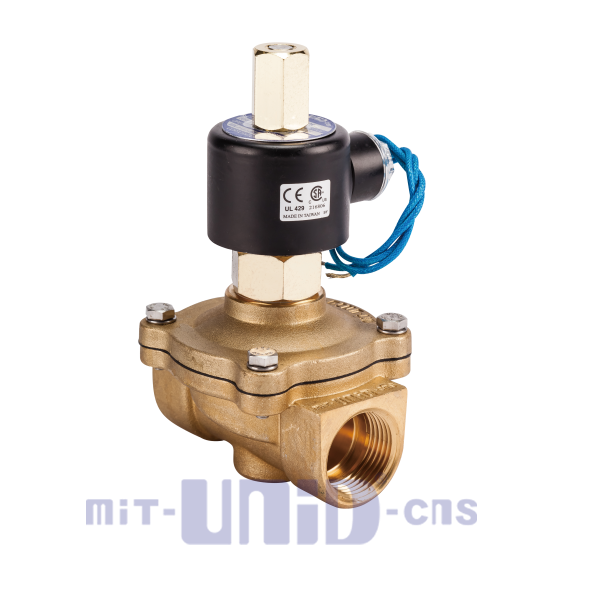

Item
UW-10NO~50NO
Voltage
DC24V AC24V AC110V AC220V Fluid
water air light oil vacuum gas Fluid temp
-5℃~+80℃ -5℃~+130℃ Operating pressure
0.5 bar 1 bar 3 bar 5 bar 7 bar 10 bar Valve size
3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" Valve material
brass Connecting interface
PT thread BSP thread NPT thread Matching coil
iron case coil (2-wire) waterproof coil (2-wire) waterproof coil (DIN PLUG) NASS DIN coil Action mode
normally open (NO)

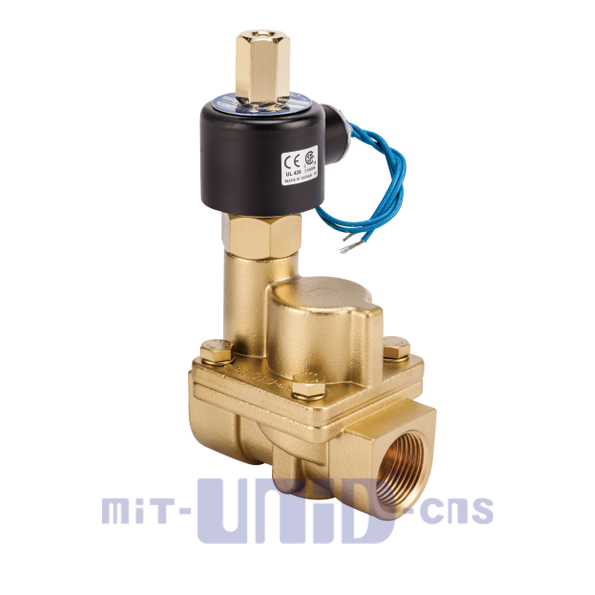

Item
UPS-15NO~25NO
Voltage
DC24V AC24V AC110V AC220V AC380V Fluid
water air light oil steam Fluid temp
-5℃~+130℃ Operating pressure
1 bar 3 bar 5 bar 7 bar 8 bar 10 bar Valve size
1/2" 3/4" 1" Valve material
brass Connecting interface
PT thread BSP thread NPT thread Matching coil
iron case coil (2-wire) waterproof coil (2-wire) waterproof coil (DIN PLUG) NASS DIN coil Action mode
normally open (NO)

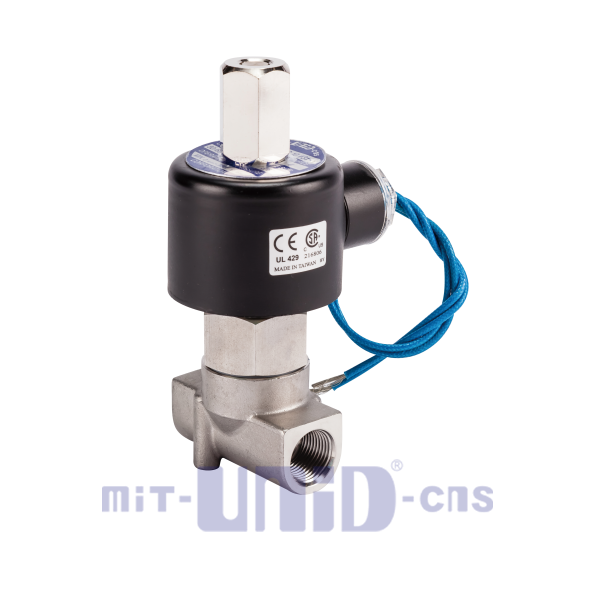

Item
SUS-6NO~10NO
Voltage
DC12V DC24V AC24V AC110V AC220V Fluid
water air light oil vacuum gas steam Fluid temp
-5℃~+130℃ Operating pressure
0.5 bar 1 bar 3 bar 5 bar 7 bar 10 bar 10^-3 Torr Valve size
1/8" 1/4" 3/8" Valve material
SS316 Connecting interface
PT thread BSP thread NPT thread Matching coil
iron case coil (2-wire) waterproof coil (2-wire) waterproof coil (DIN PLUG) Action mode
normally open (NO)

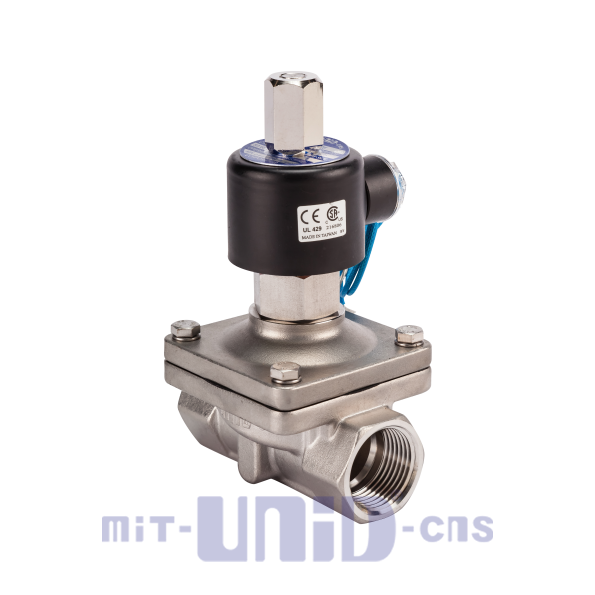

Item
SUW-15NO~50NO
Voltage
DC24V AC24V AC110V AC220V Fluid
water air light oil vacuum gas Fluid temp
-5℃~+80℃ -5℃~+130℃ Operating pressure
0.5 bar 1 bar 3 bar 5 bar 7 bar 10^-3 Torr Valve size
1/2" 3/4" 1" 1-1/4" 1-1/2" 2" Valve material
SS304 SS316 Connecting interface
PT thread BSP thread NPT thread Matching coil
iron case coil (2-wire) waterproof coil (2-wire) waterproof coil (DIN PLUG) Action mode
normally open (NO)

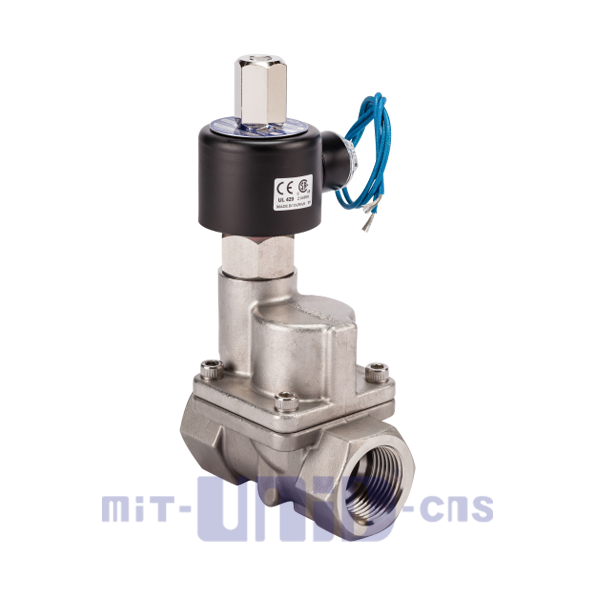

Item
SUS-15NO~50NO
Voltage
DC24V AC24V AC110V AC220V AC380V Fluid
water air light oil steam Fluid temp
-5℃~+130℃ Operating pressure
3 bar 5 bar 7 bar 8 bar 10 bar Valve size
1/2" 3/4" 1" 1-1/4" 1-1/2" 2" Valve material
SS304 SS316 Connecting interface
PT thread BSP thread NPT thread Matching coil
iron case coil (2-wire) waterproof coil (2-wire) waterproof coil (DIN PLUG) Action mode
normally open (NO)

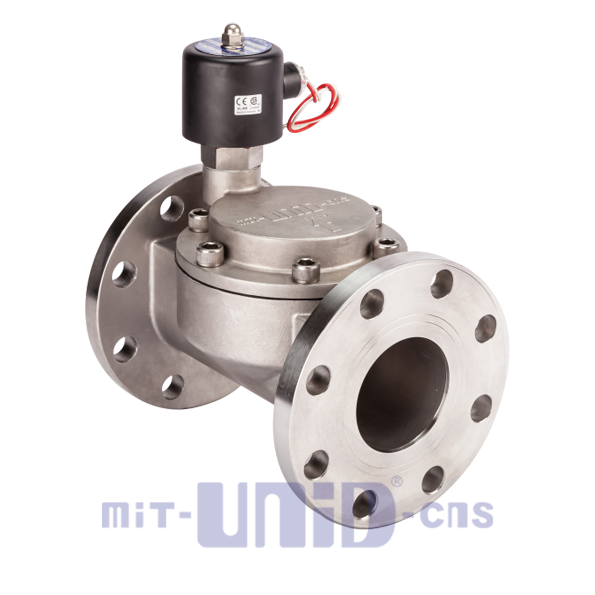

Item
SUW-80FNO
Voltage
DC24V AC24V AC110V AC220V AC380V AC440V Fluid
water air light oil Fluid temp
-5℃~+80℃ Operating pressure
3 bar 5 bar 7 bar 8 bar Valve size
3" Valve material
SS304 Connecting interface
JIS10K flange Matching coil
iron case coil (2-wire) waterproof coil (2-wire) waterproof coil (DIN PLUG) Action mode
normally open (NO)

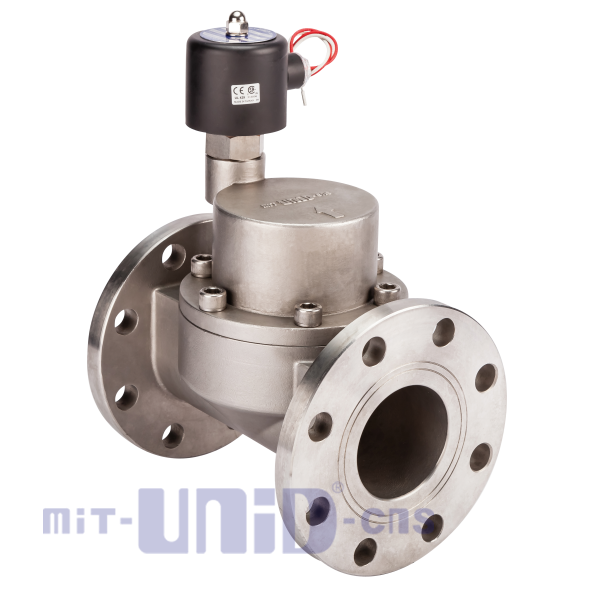

Item
SUS-80FNO
Voltage
DC24V AC24V AC110V AC220V AC380V AC440V Fluid
water air light oil steam Fluid temp
-5℃~+185℃ Operating pressure
3 bar 5 bar 7 bar 8 bar 10 bar Valve size
3" Valve material
SS304 Connecting interface
JIS10K flange Matching coil
iron case coil (2-wire) waterproof coil (2-wire) waterproof coil (DIN PLUG) Action mode
normally open (NO)
