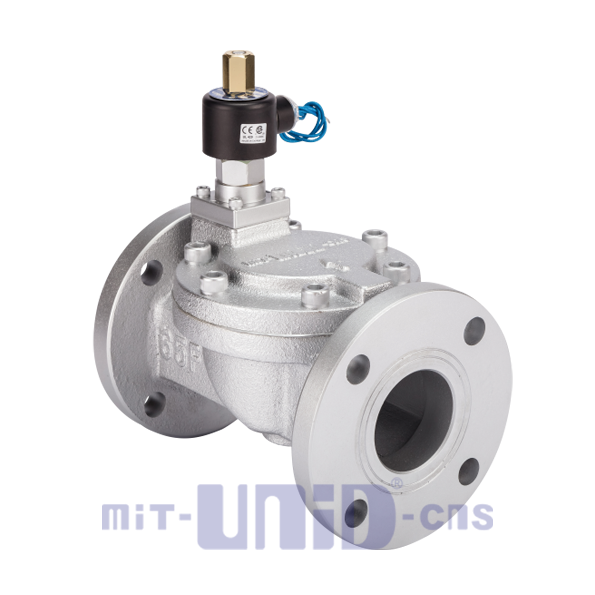

SOLENOID VALVE

UW-35F-NO~100F-NO

Specification
Voltage
DC24V
AC24V
AC110V
AC220V
AC380V
AC440V
Fluid
water
air
light oil
Fluid temp
-5℃~+80℃
Operating pressure
3 bar
5 bar
7 bar
8 bar
Valve size
1-1/4"
1-1/2"
2"
2-1/2"
3"
4"
Valve material
bronze
Connecting interface
JIS10K flange
ANSI150LB flange
PN16 flange
Matching coil
iron case coil (2-wire)
waterproof coil (2-wire)
waterproof coil (DIN PLUG)
Action mode
normally open (NO)
DETAIL
  • Drawing
  • Specification
MODEL PIPE SIZE CV ORIFICE FLUID TEMP.
(ºC)
Operating Pressure kgf-cm2 (bar) Dimension (mm)
Weight
(kg)
WATER AIR STEAM LIGHT OIL GAS L H D
UW-35F-NO 1-1/4" 22 35mm -5ºC~+80ºC 0.5~8 0.5~8   0.5~5   200 195 48 9.10
UW-40F-NO 1-1/2" 30 40mm -5ºC~+80ºC 0.5~8 0.5~8   0.5~5   200 195 48 9.80
UW-50F-NO 2" 40 50mm -5ºC~+80ºC 0.5~8 0.5~8   0.5~5   210 208 48 11.50
UW-65F-NO 2-1/2" 68 65mm -5ºC~+80ºC 0.5~8 0.5~8   0.5~5   240 213 48 15.80
UW-80F-NO 3" 102 80mm -5ºC~+80ºC 0.5~8 0.5~8   0.5~5   300 222 48 21.00
UW-100F-NO 4" 180 100mm -5ºC~+80ºC 0.5~8 0.5~8   0.5~5   340 238 48 31.90
  • Material
PARTS Coil Tube Spring Core Plug Diaphragm Valve Body
MATERIAL Special Copper Wire
(H Class)
Stainless Steel Stainless Steel Stainless Steel NBR NBR Cast Iron
(FC-20)
  • Description
    • UW-F-NO series is multiplex, pilot operated piston, conductive, and normally open (NO) 2/2 solenoid valve
    • Availability of fluid: water, air, light oil
    • Acceptable for customize VITON, Silicone and EPDM for plug

  • Cautions
    • Minimum pressure to operate: over 0.5kgf-cm2
    • Before installation depressurize the piping system and clean internally.
    • For the protection of the equipment install a strainer or filter suitable for the service involved in the inlet side as close to the solenoid valve as possible.
    • AC voltage tolerance: +/- 10%; DC voltage tolerance: +/- 1%
    • All standard solenoid valve MUST be mounted vertically upright.
    • Not suitable for fluid as below:
      • Liquid status when it is at high temperature; solid status when it is cool.
      • Corrosive fluid
      • Viscosity over 20cst

OPTIONAL
  • Coil Set

    Iron Case Coil, Waterproof Coil, DIN PLUG, NASS DIN
  • Tube Set

  • Core, Spring Set

    Material of Plug: NBR, VITON, SILICONE, EPDM, PTFE
  • Diaphragm, Spring Set

    Material of Diaphragm: NBR, VITON, SILICONE, EPDM, PTFE
