PRODUCTS

  1. MOTORIZED VALVE

PVC butterfly valve

1. Control valve: Electric actuator with PVC butterfly valve.
2. Electric actuator torque range: 35~486Nm
3. Electric actuator option: Basic type, Fast type, Smart type.
4. Available voltage: AC220V, AC110V, DC24V, AC24V
5. Butterfly valve size range: 2"~12".
6. Joint end: ANSI,DIN (PN10/PN16), JIS.
7. Butterfly valve material: UPVC.
8. Working pressure: 150PSI.
pvc butterfly valve
DETAIL

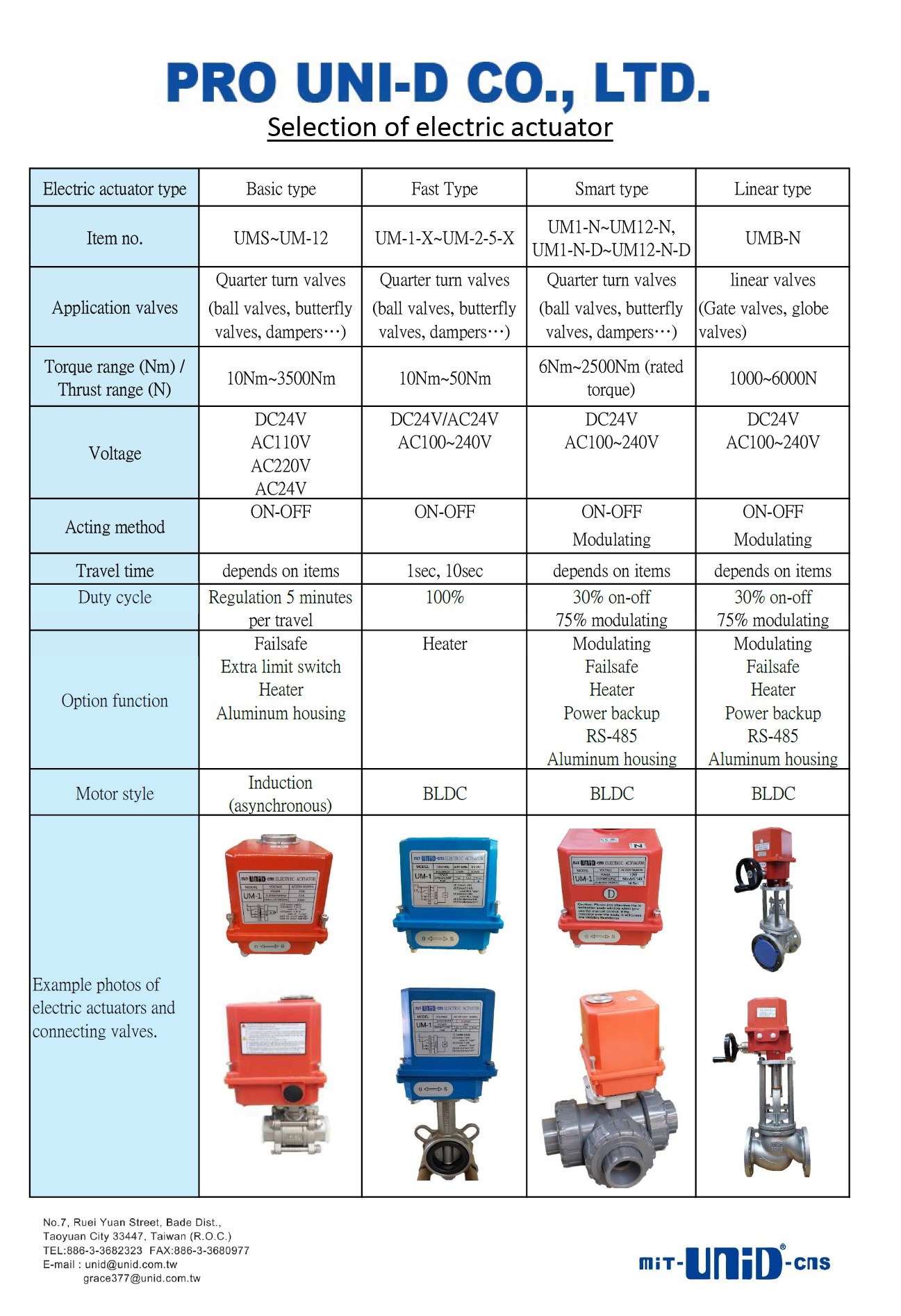

  1. We have three type quarter electric actuators that can fit our PVC butterfly valve.
  2. For on-off function only, kindly select basic type;
  3. For duty cycle 30% & 75% modulating, kindly select smart type;
  4. For duty cycle 100%, kindly select our fast type.
  5. Nylon housing,  IP67 water proof that avoid water, dust, and corrosion damage.
  6. Stable operating that avoid water hammer and noise.
  7. Position indicator to show the status of valve open or close.

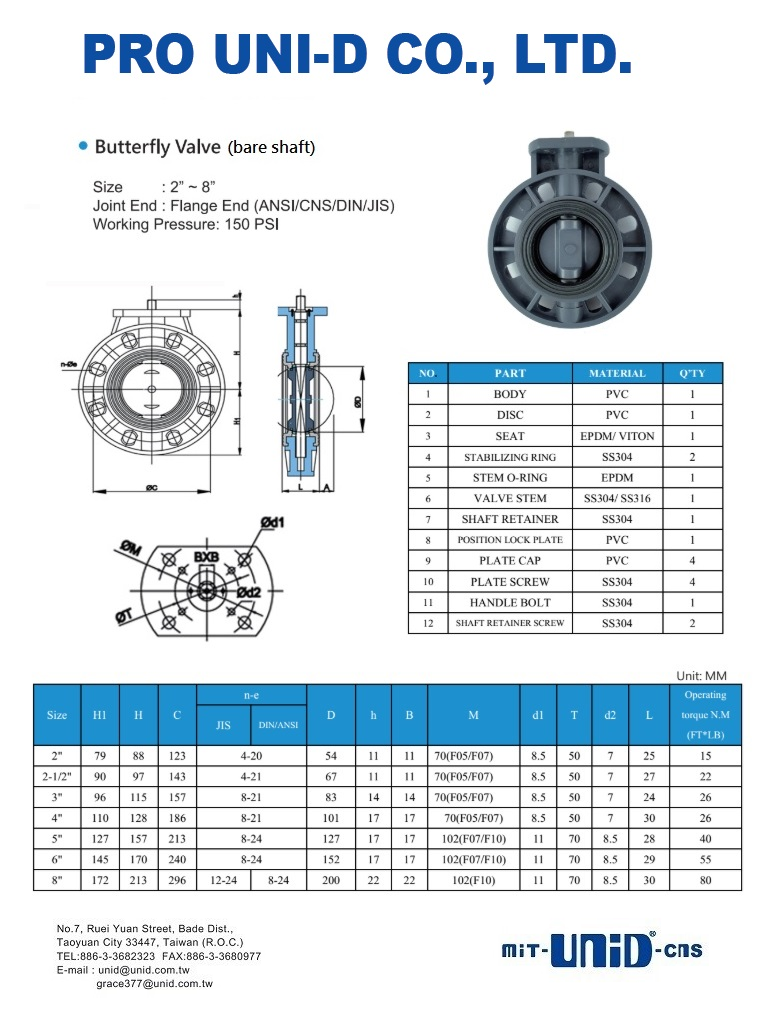

  8. PVC butterfly valve spec. download.
