3-pc ball valve, thread end.

1. Control valve: Electric actuator with 3-pc ball valve, thread end.
2. Electric actuator torque range: 35~300Nm
3. Electric actuator option: Basic type, Fast type, Smart type.
4. Available voltage: AC220V, AC110V, DC24V, AC24V
5. Ball valve size range: 1/4"~4".
6. Ball valve connecting interface option:
 Thread end: PT, BSP (PF), NPT.
7. Ball valve material: SS316.
DETAIL

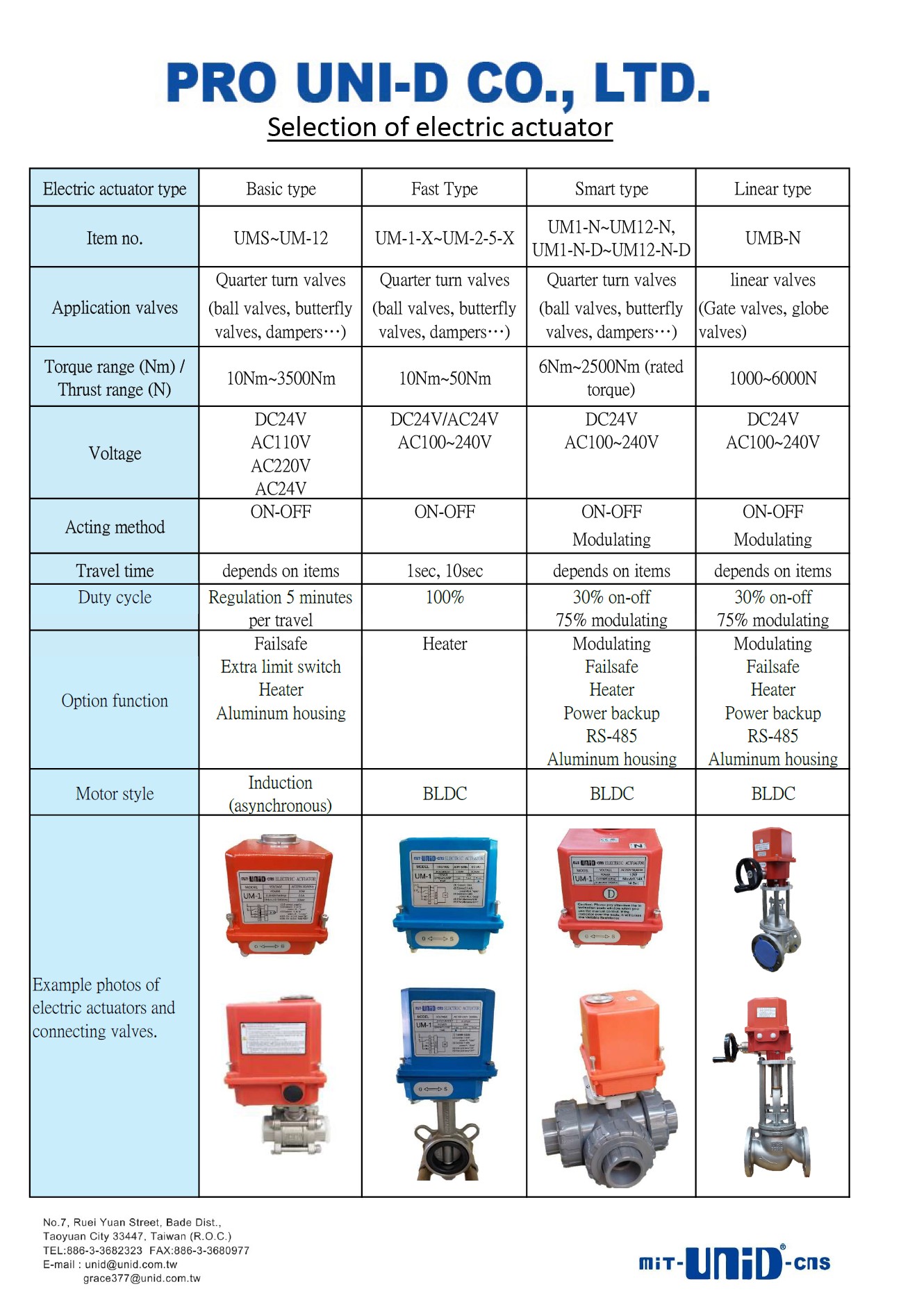

  1. We have three type quarter electric actuators that can fit our 3-PC ball valve.
  2. For on-off function only, kindly select basic type;
  3. For duty cycle 30% & 75% modulating, kindly select smart type;
  4. For duty cycle 100%, kindly select our fast type
  5. Nylon housing,  IP67 water proof that avoid water, dust, and corrosion damage.
  6. Stable operating that avoid water hammer and noise.
  7. Position indicator to show the status of valve open or close.
  8. Available electric of valve:
Electric actuator: smart type spec. download

basic type spec. download

fast type spec. download-1

fast type spec. download-2

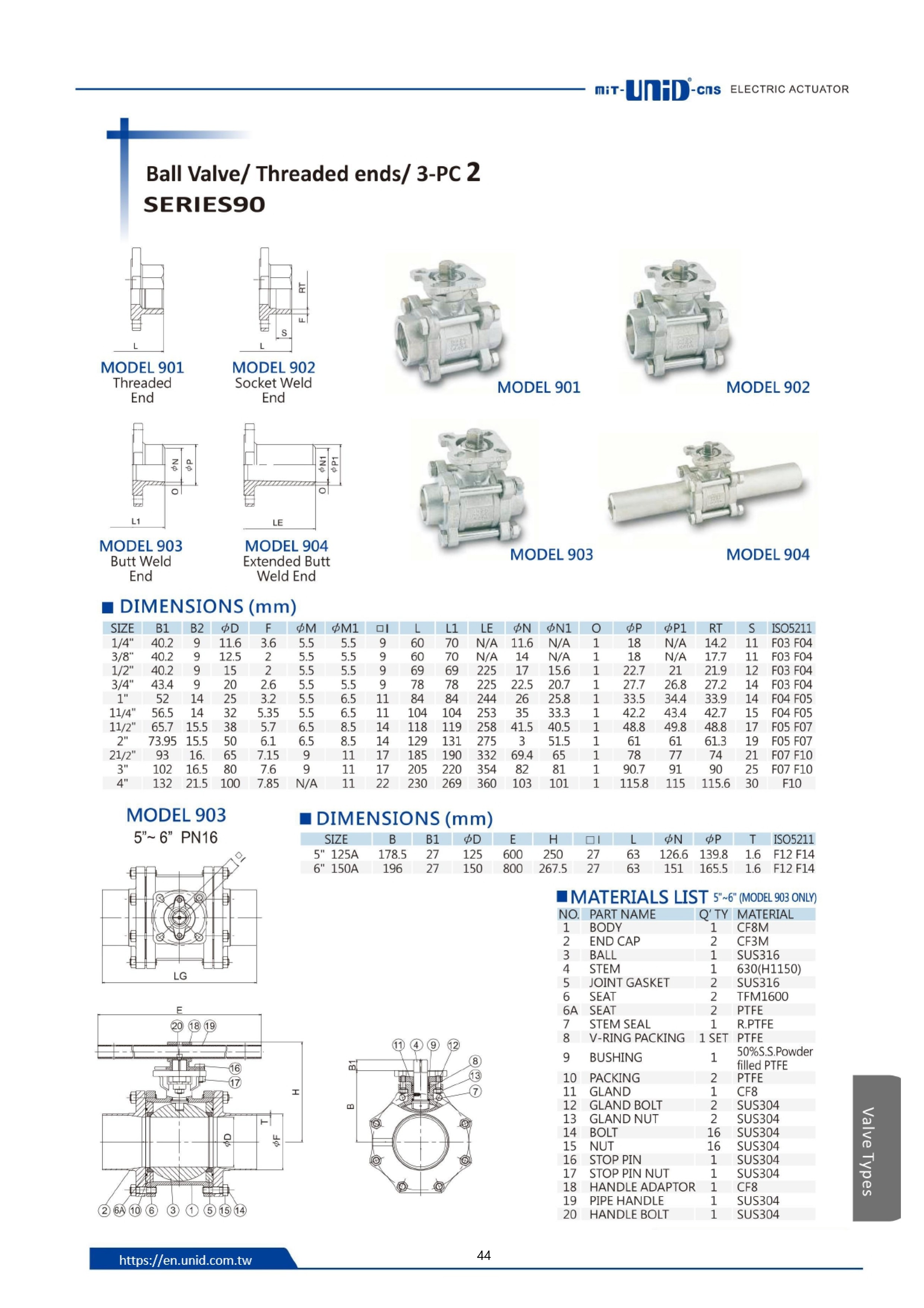

3-PC ball valve spec. download.
