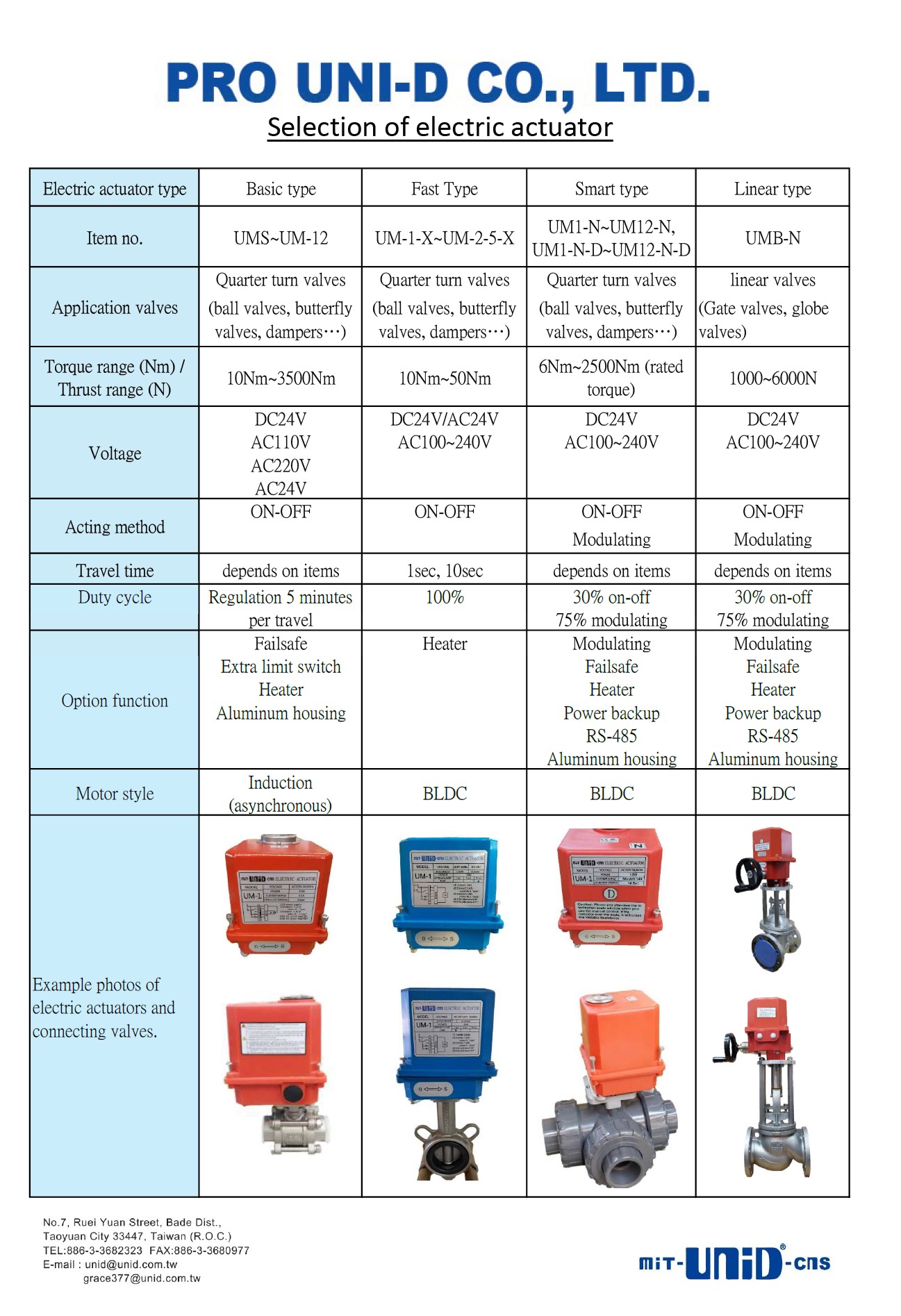

- We have three type quarter electric actuators that can fit our PVC ball valve.
- For on-off function only, kindly select basic type;
- For duty cycle 30% & 75% modulating, kindly select smart type;
- For duty cycle 100%, kindly select our fast type.
- Nylon housing, IP67 water proof that avoid water, dust, and corrosion damage.
- Stable operating that avoid water hammer and noise.
- osition indicator to show the status of valve open or close.
- Available electric of valve:
PRODUCTS

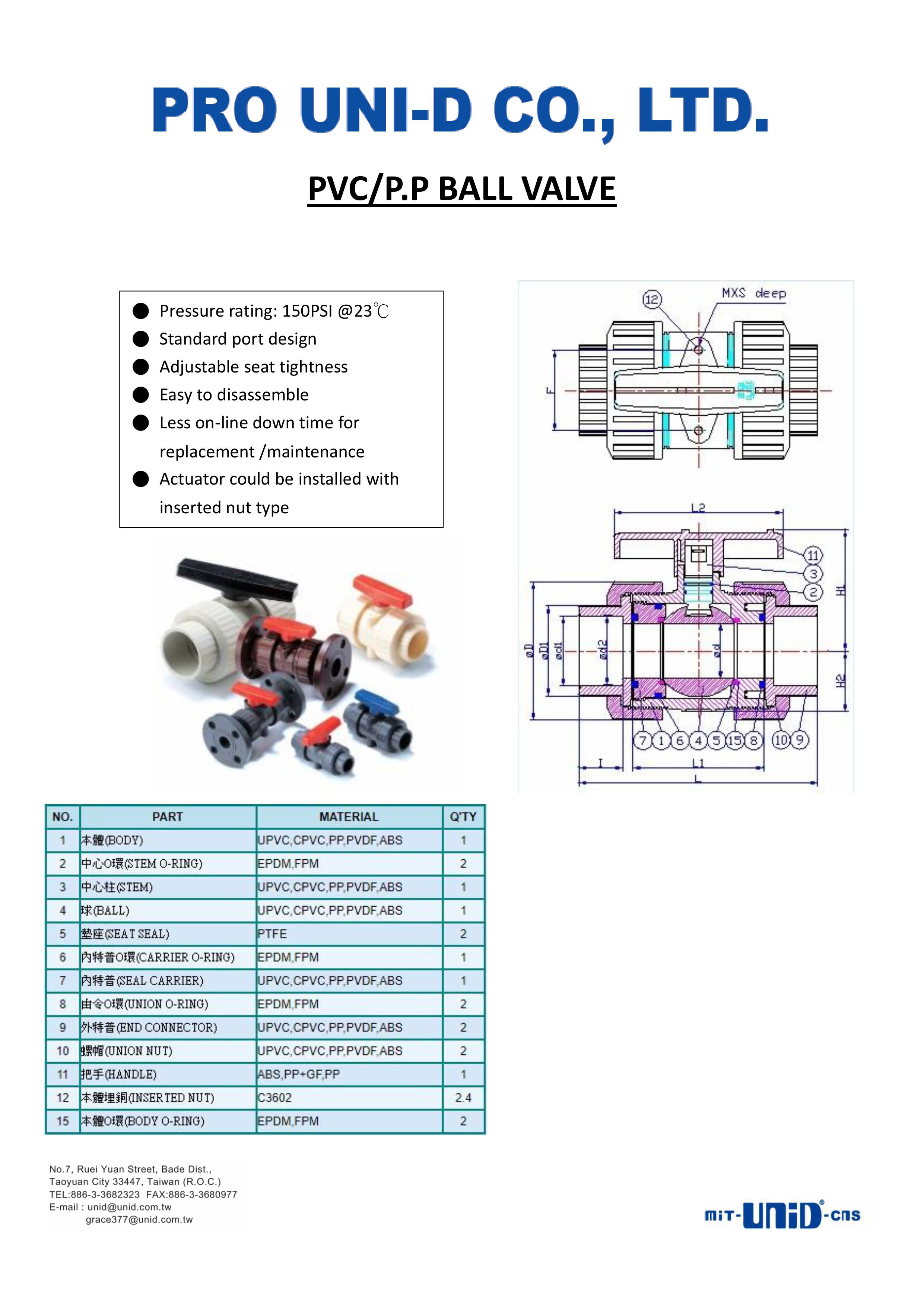

PVC ball valve, double union.
1. Control valve: Electric actuator with PVC ball valve, double union.
2. Electric actuator torque range: 35~150Nm
3. Electric actuator option: Basic type, Fast type, Smart type.
4. Available voltage: AC220V, AC110V, DC24V, AC24V

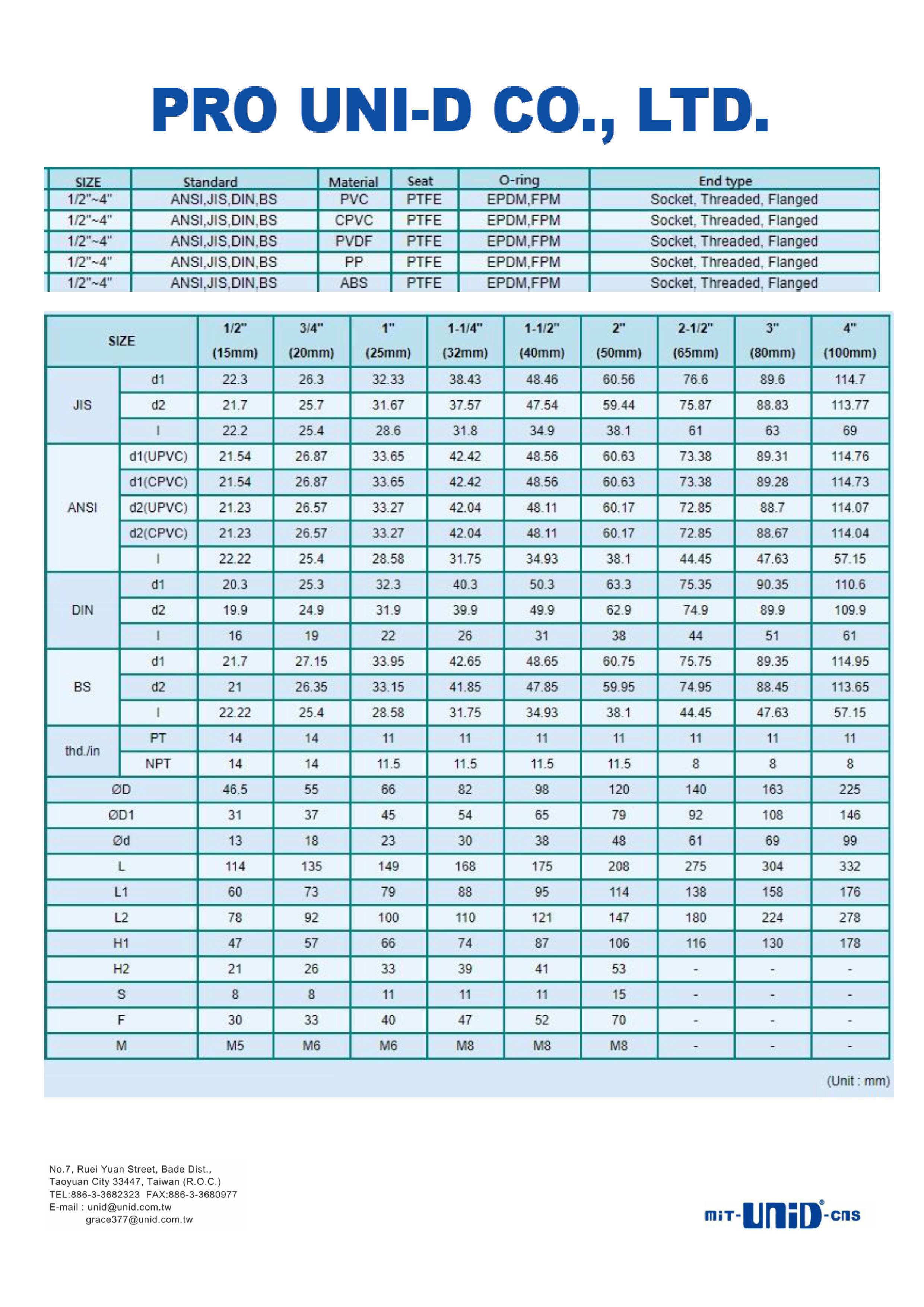

5. Ball valve size range: 1/2"~2".
6. Ball valve connecting interface option:
Thread end: PT, BSP (PF), NPT.
Socket: ASTM
Flange end: ANSI, JIS, DIN
7. Ball valve material: UPVC, CPVC, PP, PVDF, ABS
2. Electric actuator torque range: 35~150Nm
3. Electric actuator option: Basic type, Fast type, Smart type.
4. Available voltage: AC220V, AC110V, DC24V, AC24V
5. Ball valve size range: 1/2"~2".
6. Ball valve connecting interface option:
Thread end: PT, BSP (PF), NPT.
Socket: ASTM
Flange end: ANSI, JIS, DIN
7. Ball valve material: UPVC, CPVC, PP, PVDF, ABS
