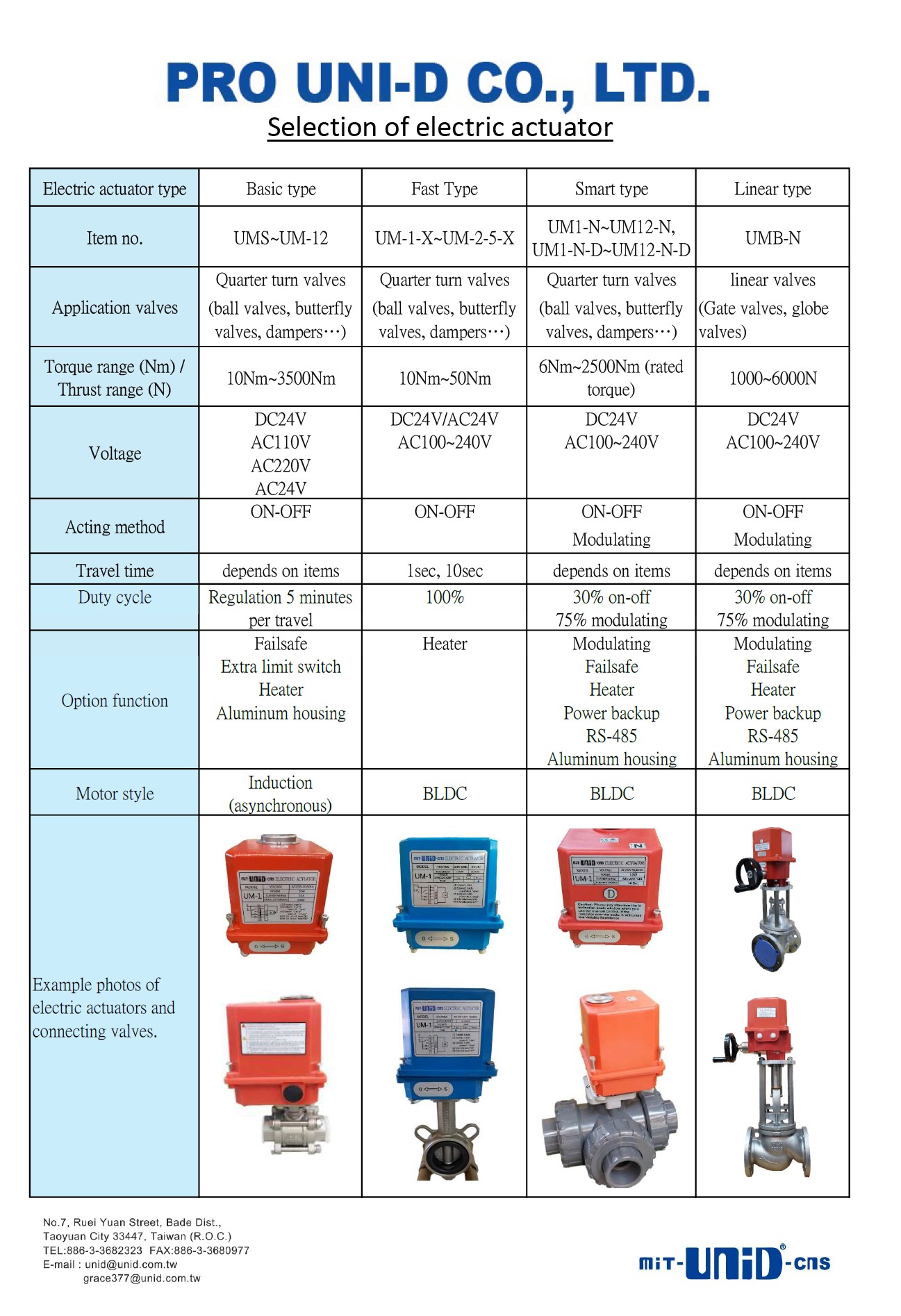

- We have three type quarter electric actuators that can fit our 3-way ball valve, flange end.
- For on-off function only, kindly select basic type;
- For duty cycle 30% & 75% modulating, kindly select smart type;
- For duty cycle 100%, kindly select our fast type.
- Nylon housing, IP67 water proof that avoid water, dust, and corrosion damage.
- Stable operating that avoid water hammer and noise.
- Position indicator to show the status of valve open or close.
- Available electric of valve:
PRODUCTS

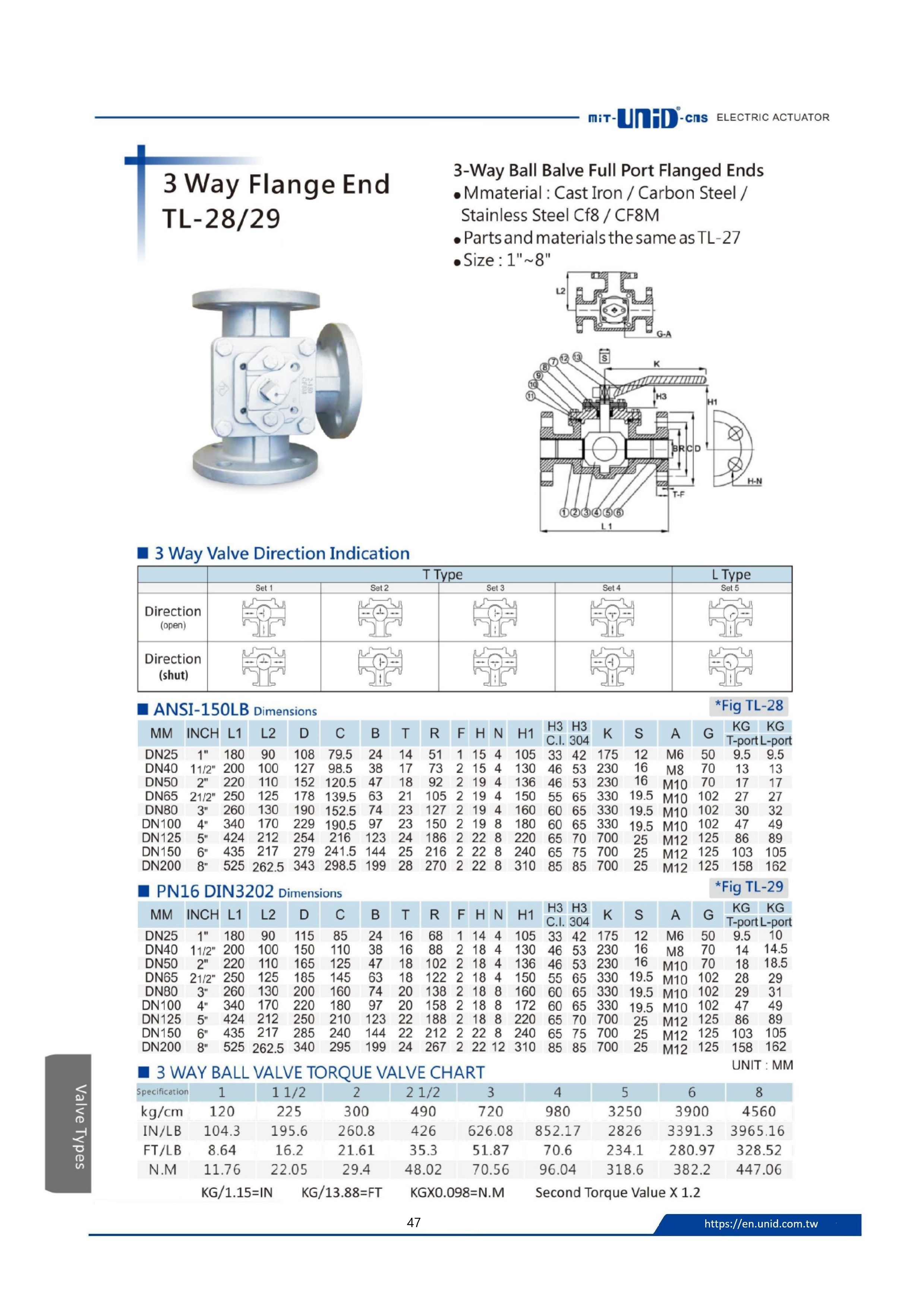

3-way ball valve, flange end
1. Control valve: Electric actuator with 3-way ball valve, flange end.
2. Electric actuator torque range: 35~3500Nm
3. Electric actuator option: Basic type, Fast type, Smart type.
4. Available voltage: AC220V, AC110V, DC24V, AC24V
5. Ball valve size range: 1"~8".
6. Ball valve flange end option: JIS10K, PN10, PN16, ANSI150LB
7. Ball valve material: FC, SS304, SS316.
8. L / T port for selection.
2. Electric actuator torque range: 35~3500Nm
3. Electric actuator option: Basic type, Fast type, Smart type.
4. Available voltage: AC220V, AC110V, DC24V, AC24V
5. Ball valve size range: 1"~8".
6. Ball valve flange end option: JIS10K, PN10, PN16, ANSI150LB
7. Ball valve material: FC, SS304, SS316.
8. L / T port for selection.
