3-way ball valve, thread end
1. Control valve: Electric actuator with 3-way ball valve, thread end.
2. Electric actuator torque range: 35~150Nm
3. Electric actuator option: Basic type, Fast type, Smart type.
4. Available voltage: AC220V, AC110V, DC24V, AC24V
5. Ball valve size range: 1/2"~2".
6. Ball valve thread end option: PT, BSP (PF), NPT.
7. Ball valve material: SS316.
8. L / T port for seleciton.
2. Electric actuator torque range: 35~150Nm
3. Electric actuator option: Basic type, Fast type, Smart type.
4. Available voltage: AC220V, AC110V, DC24V, AC24V
5. Ball valve size range: 1/2"~2".
6. Ball valve thread end option: PT, BSP (PF), NPT.
7. Ball valve material: SS316.
8. L / T port for seleciton.
DETAIL
2. For on-off function only, kindly select basic type;
for duty cycle 30% & 75% modulating, kindly select smart type;
for duty cycle 100%, kindly select our fast type.
3. Nylon housing, IP67 water proof that avoid water, dust, and corrosion damage.
4. Stable operating that avoid water hammer and noise.
5. Position indicator to show the status of valve open or close.
Electric actuator: smart type spec. download
basic type spec. download
fast type spec. download-1
fast type spec. download-2

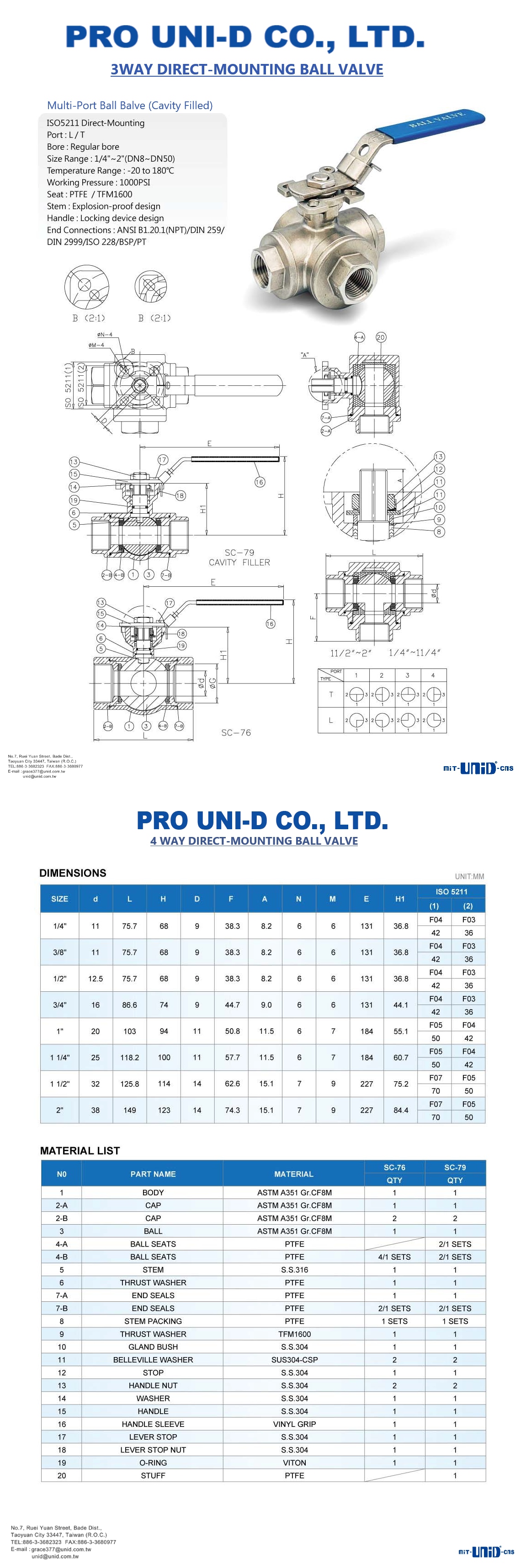

3-way ball valve spec. download.
