- We have three type quarter electric actuators that can fit our butterfly valves.
- For on-off function only, kindly select basic type
- For duty cycle 30% & 75% modulating, kindly select smart type;
- For duty cycle 100%, kindly select our fast type.
- Nylon housing, IP67 water proof that avoid water, dust, and corrosion damage.
- Stable operating that avoid water hammer and noise.
- Position indicator to show the status of valve open or close.
- Available electric of valve:
PRODUCTS

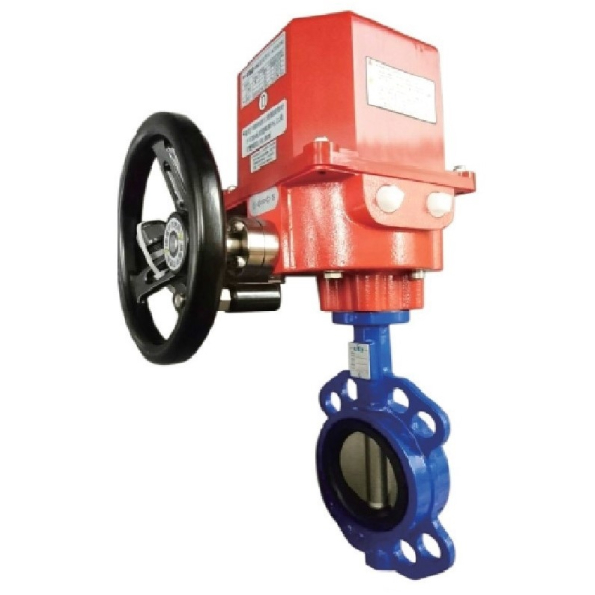

Motorized butterfly valve
1. Control valve: Electric actuator with butterfly valve.
2. Electric actuator torque range: 35~3500Nm
3. Electric actuator option: Basic type, Fast type, Smart type.
4. Available voltage: AC220V, AC110V, DC24V, AC24V
5. Butterfly valve size range: 2"~24"
6. Type of butterfly valve: wafer, flange, LUG.
7. Butterfly valve material (body / disc):
FCD/FCD, FCD/304, FCD/316, 304/304, 304/316, 316/316
8. Universal connecting interface: JIS10K, ANSI150LB, PN10, PN16
2. Electric actuator torque range: 35~3500Nm
3. Electric actuator option: Basic type, Fast type, Smart type.
4. Available voltage: AC220V, AC110V, DC24V, AC24V
5. Butterfly valve size range: 2"~24"
6. Type of butterfly valve: wafer, flange, LUG.
7. Butterfly valve material (body / disc):
FCD/FCD, FCD/304, FCD/316, 304/304, 304/316, 316/316
8. Universal connecting interface: JIS10K, ANSI150LB, PN10, PN16
