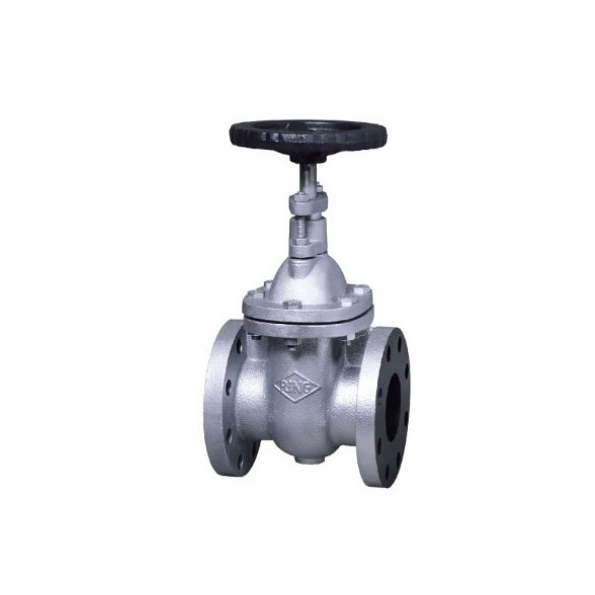

Gate valve - Non-rising stem

1. CAST IRON GATE VALVE Non-rising stem,
Solid wedge disc, Renewable bronze seat rings,
2. JIS10K flange ends,Conform to CNS 713 B2107.
DETAIL
GATE VALVE, NON-RISING STEM, CASE IRON
  1. GATE VALVE, NON-RISING, SPEC. DOWNLOAD.
  2. Related products: LINEAR GATE VALVE
  3. Available size: 2"~16"
  4. Material: Cast iron
  5. Operating pressure: 10Nm max.
  6. Flange end: JIS10K, for other spec., kindly contact us.
  7. Type: Non-rising stem.
  8. Material list:
NO. PART MATERIAL
1 BODY CAST IRON
2 BONNET  CAST IRON
3 STEM STAINLESS STEEL
4 DISC CAST IRON
5 SEAT RING CAST BRONZE
6 GLAND DUCTILERIRON
7 PACKING NON-ASBESTOS
8 HANDWHEEL CAST IRON
